980C-01 - Paramount Edger, Electric EDGER ASSEMBLY Parts Diagram

Edger, Electric

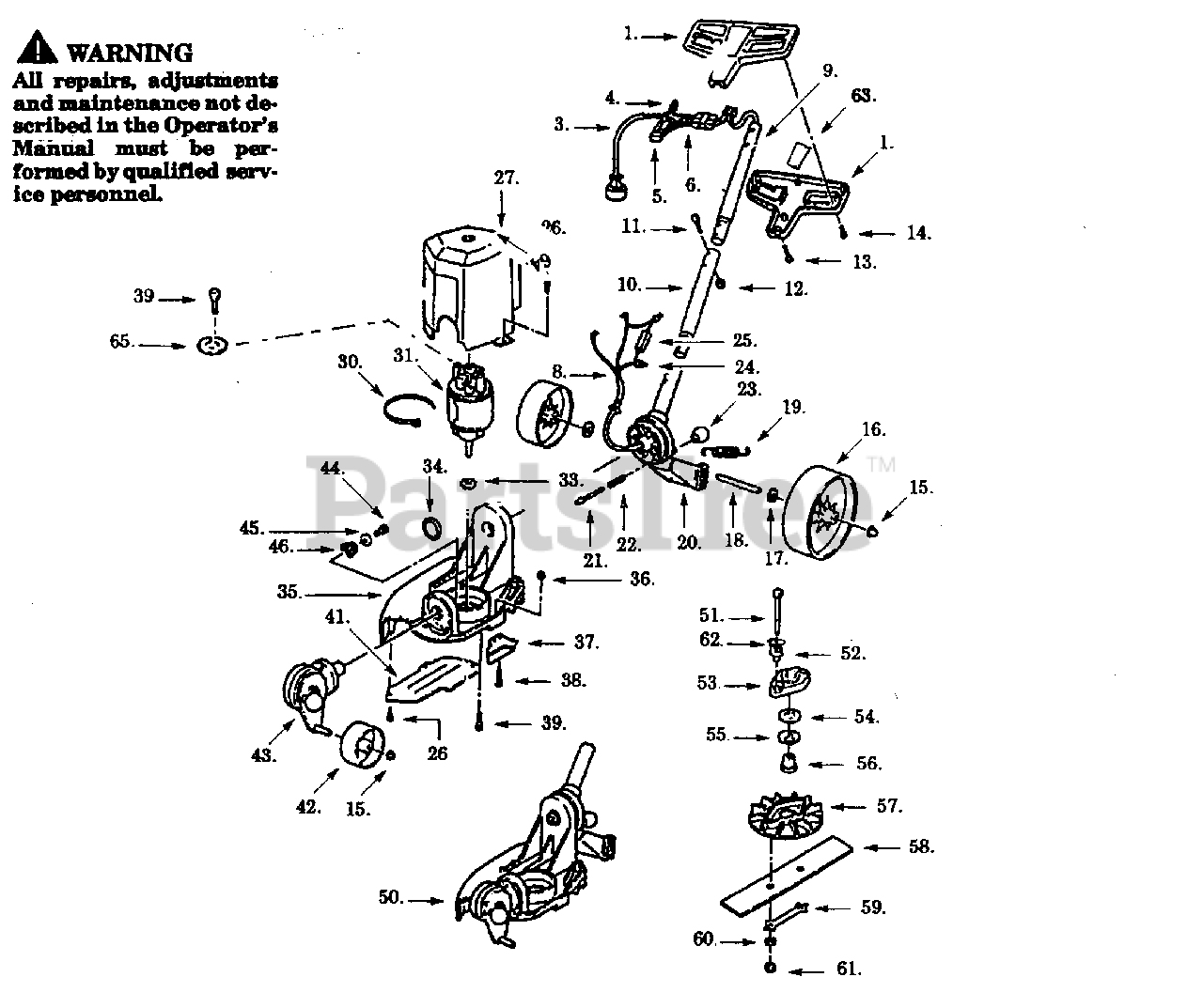

EDGER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234225

Handle Set

$

$

Not available

3

Poulan 534234501

Power Cord

$

$

Not available

4

Poulan 534561000

Wire Nut

$

$

Not available

5

Poulan 534193004

Switch

$

$

Not available

6

Poulan 534336500

P.C. Board Ass'y.

$

$

Not available

8

Poulan 534337000

Harness Ass'y.

$42.99

$

Usually ships in 3-10 days

0

9

Poulan 534838000

Upper Tube

$

$

Not available

10

Poulan 534838100

Lower Tube

$

$

Not available

11

Poulan 534829600

Screw

$

$

Not available

12

Poulan 534828300

Locknut

$

$

Not available

13

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534121000

Push Nut

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 534236800

Rear Wheel

$

$

Not available

17

Poulan 534137900

Washer

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534137701

Rear Axle

$

$

Not available

19

Poulan 534121300

Spring

$1.49

$

Usually ships in 3-10 days

0

20

Poulan 534137552

Rear Swivel

$

$

Not available

21

Poulan 534700002

Swivel Lock Shaft

$

$

Not available

22

Poulan 534710000

Swivel Lock Spring

$

$

Not available

23

Poulan 534720001

Knob

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534561000

Terminal Cap

$

$

Not available

25

Poulan 534134500

Resister

$

$

Not available

26

Poulan 534193800

Screw

$

$

Not available

27

Poulan 534722032

Motor Cover

$

$

Not available

30

Poulan 534134700

Tie Wrap

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 534225022

Motor Ass'y.

$

$

Not available

33

Poulan 534136100

Washer

$

$

Not available

34

Poulan 534780000

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 534130505

Deck Frame

$

$

Not available

36

Poulan 534315300

Locknut

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 534830000

Blade Guide

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 534315200

Screw

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 534131515

Side Guard Plate

$

$

Not available

42

Poulan 534240003

Front Wheel

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 534130702

Front Swivel Ass'y.

$

$

Not available

44

Poulan 534779000

Screw

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 534778000

Washer

$1.49

$

Usually ships in 3-10 days

0

46

Poulan 534120500

Front Swivel Spring

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 534135182

Edger Frame Ass'y.

$

$

Not available

51

Poulan 534135901

Screw

$

$

Not available

52

Poulan 534135605

Insulating Sleeve

$

$

Not available

53

Poulan 534135400

Clutch Plate

$

$

Not available

54

Poulan 534136300

Washer

$

$

Not available

55

Poulan 534238900

Spring Washer

$

$

Not available

56

Poulan 534135500

Clutch Sleeve

$

$

Not available

57

Poulan 534135305

Fan

$

$

Not available

58

Poulan 952710528

Blade

$

$

Not available

59

Poulan 534135700

Lock Strap

$3.99

$

In Stock, only 2 left!

0

60

Poulan 534136600

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

61

Poulan 534136200

Locknut

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

63

Poulan 534337100

Shield

$

$

Not available

64

Poulan 534134600

Sleeve

$

$

Not available

65

Poulan 534510208

Rain Guard

$

$

Not available
