9818-0 - Troy-Bilt 6,600 PSI Pressure Washer Pressure Washer And Cradle Parts Diagram

6,600 PSI Pressure Washer

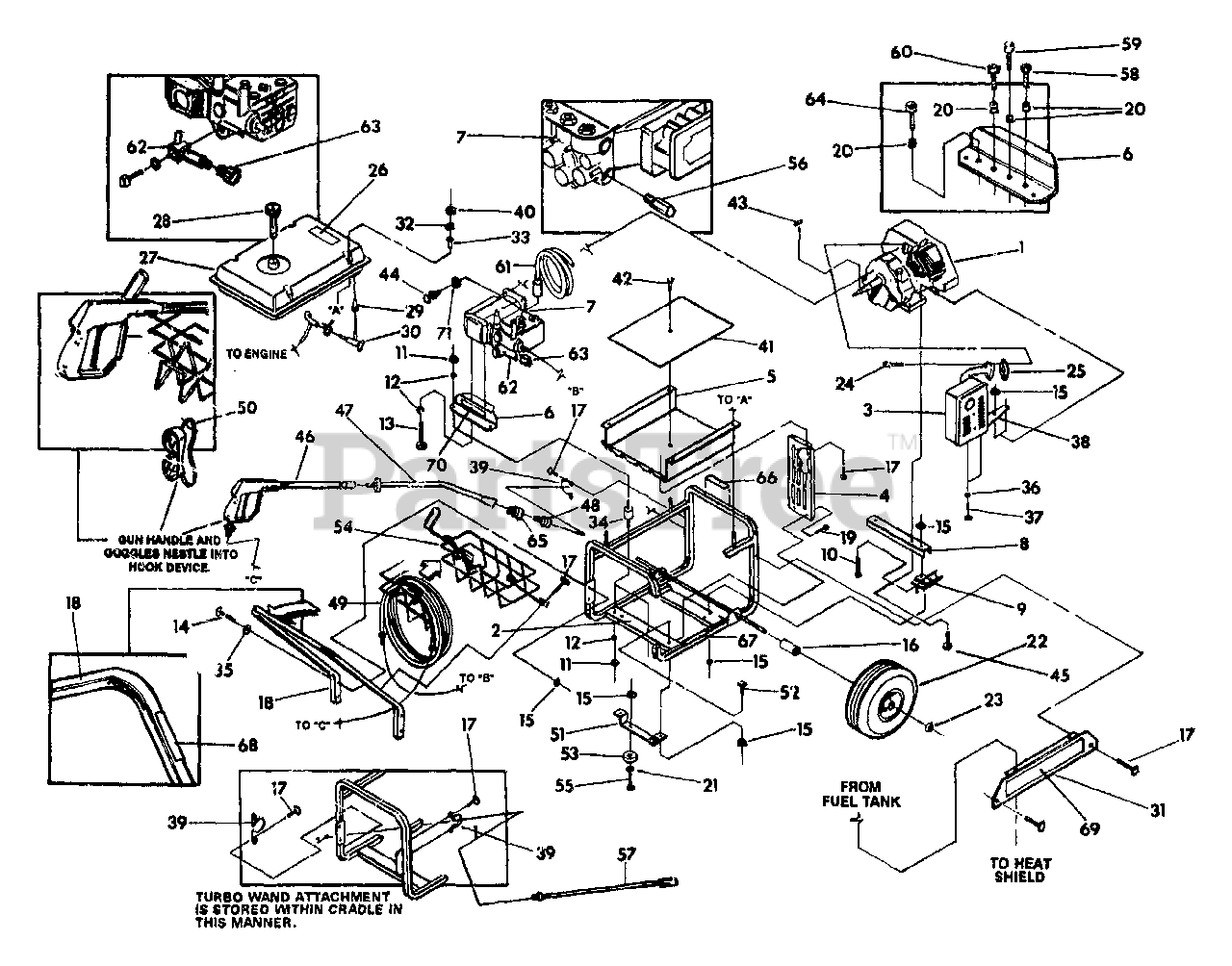

Pressure Washer And Cradle Parts Diagram

  • Title
1

Briggs & Stratton 1902458

GN-190 Engine. 3/4" dia. Straight Shaft

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Briggs & Stratton 1902463

Muffler Heat Shield

$

$

Currently unavailable

5

Briggs & Stratton 1902431

Fuel Tank Heat Shield

$

$

Currently unavailable

6

Briggs & Stratton 1902432

Pump Mount Bracket

$

$

Currently unavailable

7

Briggs & Stratton 1902433

Pump, XTV 2200 Series

$

$

Currently unavailable

8

Briggs & Stratton 1902434

Engine Support

$

$

Currently unavailable

9

Briggs & Stratton 1902464

Vibration Mount - 45 deg

$

$

Currently unavailable

10

Briggs & Stratton 1902465

Capscrew, M8-1.25 x 20mm

$

$

Currently unavailable

11

Briggs & Stratton 1902466

Hex Nut, M8-1.25

$

$

Currently unavailable

12

Briggs & Stratton 1902467

Lockwasher, M8

$

$

Currently unavailable

13

Briggs & Stratton 1902468

Capscrew, M8-1.25 x 16mm

$

$

Currently unavailable

14

Briggs & Stratton 1902469

Capscrew, M8-1.25 x 45mm

$

$

Currently unavailable

15

Briggs & Stratton 1902470

Flange Lock Nut, M8-1.25

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Briggs & Stratton 1902472

Self-Thread Screw, #10-16

$

$

Currently unavailable

$

$

Currently unavailable

19

Briggs & Stratton 1902473

Taptite Screw, #8-3/8

$

$

Currently unavailable

20

Briggs & Stratton 1902436

Nozzle Grommet

$

$

Currently unavailable

21

Briggs & Stratton 1902474

Flat Washer, M8

$

$

Currently unavailable

22

Briggs & Stratton 1902437

Wheel Assembly

$

$

Currently unavailable

23

Briggs & Stratton 1902475

Lock Nut (Nylon Insert), 5/8-11

$

$

Currently unavailable

24

Briggs & Stratton 1902476

Capscrew, M8-1.25 x 20mm

$

$

Currently unavailable

25

Briggs & Stratton 1902477

Exhaust Gasket

$

$

Currently unavailable

26

Briggs & Stratton 1902478

Decal - Danger

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

29

Briggs & Stratton 1902479

Plastic Tank Bushing

$

$

Currently unavailable

30

Briggs & Stratton 1902440

Fuel Tank Valve

$

$

Currently unavailable

$

$

Currently unavailable

32

Briggs & Stratton 1902481

Black Washer - Special

$

$

Currently unavailable

33

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Briggs & Stratton 1902484

Flat Washer, M8 x 25mm

$

$

Currently unavailable

36

Briggs & Stratton 1902485

Lock Washer, M6

$

$

Currently unavailable

37

Briggs & Stratton 1902486

Capscrew, M6-1.0 x 12mm

$

$

Currently unavailable

38

Briggs & Stratton 1902441

Muffler Bracket

$

$

Currently unavailable

39

Briggs & Stratton 1902442

Rear Gun Holder

$

$

Currently unavailable

40

Briggs & Stratton 1902487

Flange Lock Nut, M6

$

$

Currently unavailable

41

Briggs & Stratton 1902488

#2 Insulation, 1/4" thick

$

$

Currently unavailable

42

Briggs & Stratton 1902489

Insulation Clip

$

$

Currently unavailable

43

Briggs & Stratton 1902490

Hardened Key, 3/16 x 1/4

$

$

Currently unavailable

44

Briggs & Stratton 1902491

Capscrew w/Lock Washer, 5/16-24 x 3/4

$

$

Currently unavailable

45

Briggs & Stratton 1902492

Phillips Screw, M8 x 35mm

$

$

Currently unavailable

46

Briggs & Stratton 1902443

Gun with Trigger

$

$

Currently unavailable

47

Briggs & Stratton 1902444

Standard Wand Extension

$

$

Currently unavailable

48

Briggs & Stratton 1902445

Spray Nozzle - Black

$

$

Currently unavailable

49

Briggs & Stratton 1902446

3/8 ID Pressure Hose Assembly (50 ft.)

$

$

Currently unavailable

50

Briggs & Stratton 5003

Safety Goggles

$

$

Currently unavailable

51

Briggs & Stratton 1902447

Unit Support Bracket

$

$

Currently unavailable

52

Briggs & Stratton 1902493

Capscrew, M8-1.25 x 20mm

$

$

Currently unavailable

53

$

$

Currently unavailable

54

$

$

Currently unavailable

55

Briggs & Stratton 1902495

Capscrew, M8-1.25 x 30mm

$

$

Currently unavailable

56

Briggs & Stratton 1902496

Thermal Relief Valve

$

$

Currently unavailable

57

Briggs & Stratton 1902449

Turbo Wand Assembly

$

$

Currently unavailable

58

Briggs & Stratton 1902450

Spray Nozzle (00045 - Red)

$

$

Currently unavailable

59

Briggs & Stratton 1902451

Spray Nozzle (15045 - Yellow)

$

$

Currently unavailable

60

Briggs & Stratton 1902452

Spray Nozzle (25045 - Green)

$

$

Currently unavailable

61

Briggs & Stratton 1902454

Filter and Injector Tube Assembly

$

$

Currently unavailable

62

Briggs & Stratton 1902457

Aluminum Pump Neck

$

$

Currently unavailable

63

Briggs & Stratton 1902455

Garden Hose Connector (Brass)

$

$

Currently unavailable

64

Briggs & Stratton 1902453

Spray Nozzle (40045 - White)

$

$

Currently unavailable

65

Briggs & Stratton 1902456

Quick Connect Adaptor

$

$

Currently unavailable

66

Briggs & Stratton 1902467

Decal - Place hand here

$

$

Currently unavailable

67

Briggs & Stratton 1902468

Decal - Warning - Hot Surfaces

$

$

Currently unavailable

68

Briggs & Stratton 1902469

Decal - Caution - Spray Gun

$

$

Currently unavailable

69

Briggs & Stratton 1902645

Decal - Troy-Bilt Logo

$

$

Currently unavailable

70

Briggs & Stratton 1902755

Decal - Nozzle Selection

$

$

Currently unavailable

71

Briggs & Stratton 1902756

Flatwasher, 5/16 I.D.

$

$

Currently unavailable

Briggs & Stratton 1902469

Tag - Operating Instructions

$

$

Currently unavailable

Briggs & Stratton 41550

Rotating Brush

$

$

Currently unavailable

Briggs & Stratton 41551

Multi-Purpose Brush

$

$

Currently unavailable

Briggs & Stratton 1902425

Engine Service Kit

$

$

Currently unavailable

Briggs & Stratton 1902426

Cleaner/Wax Kit

Note: Includes 1 gal. of Vehicle Wash, 2 gal. of Multi-Purpose Cleaner, and 1 gal. of Vehicle Wax

$

$

Currently unavailable

Briggs & Stratton 1902428

Vehicle Wash - 1 gal.

$

$

Currently unavailable

Briggs & Stratton 1902427

Multi-Purpose Cleaner - 1 gal.

$

$

Currently unavailable

$

$

Currently unavailable
