9829-0 - Generac G-FORCE 2,400 Watt Portable Generator Generator Parts Diagram

G-FORCE 2,400 Watt Portable Generator

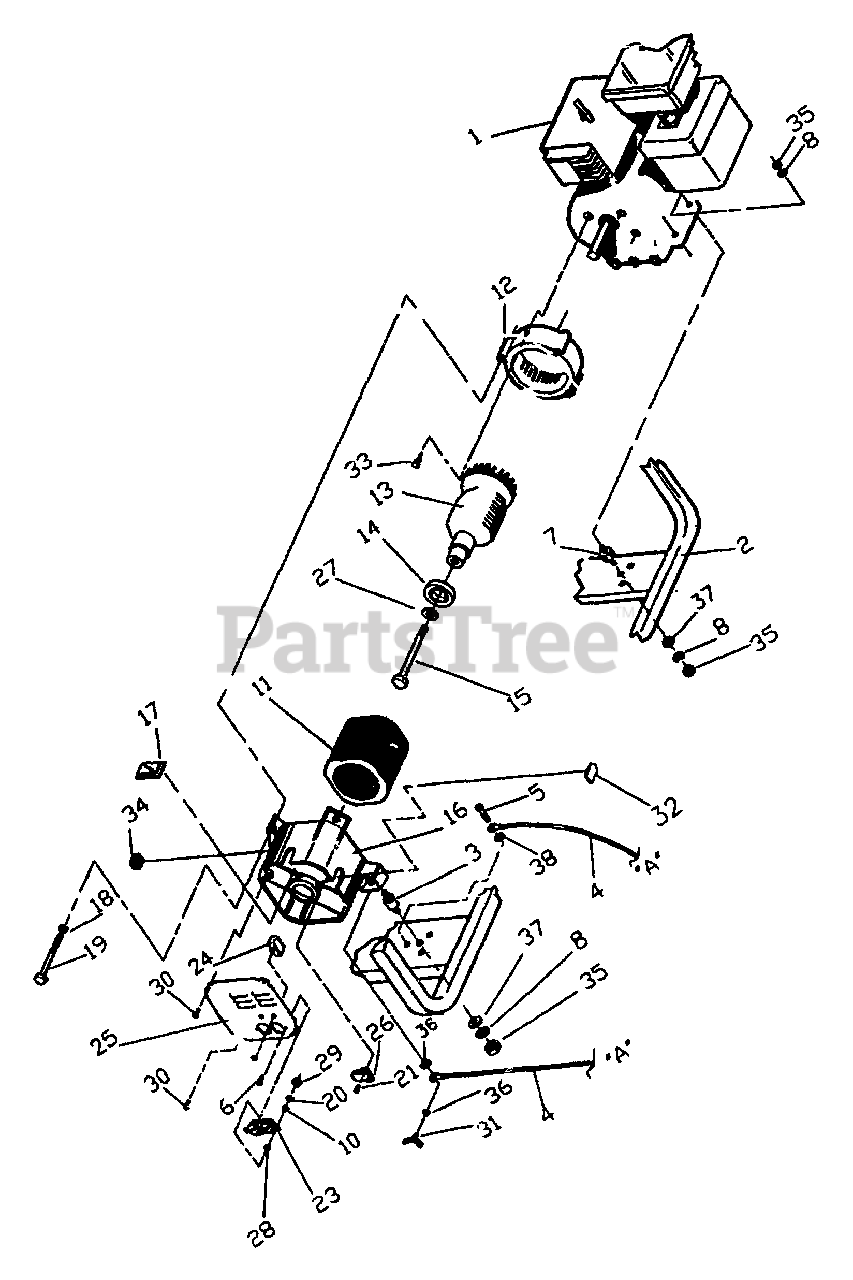

Generator Parts Diagram

  • Title

1

Briggs & Stratton 84789

Engine-Briggs & Stratton (5 HP with LOS)

$

$

Currently unavailable

2

Briggs & Stratton 91018

Cradle Assembly

$

$

Not available

3

Briggs & Stratton 85652

Vibration Mount - alternator
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

4

14353621

Ground Wire

$

$

Not available

5

Briggs & Stratton 86292

No. 10 Self-Driller Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Pan Head Screw

$

$

Not available

7

Briggs & Stratton 85651

Vibration Mount-engine
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 77258

Stator Assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365F

Engine Adaptor Housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

Rotor Assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

5/16" x 24 x 6-1/4" Rotor Bolt

$

$

Not available

16

Briggs & Stratton 66825B

Rear Bearing Carrier

$

$

Currently unavailable

17

Briggs & Stratton 66850

Circuit Bridge Rectifier Board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

M6-1.0 x 80mm Stator Bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 68759

120 volts, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 77247

20 amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72092

Receptacle Panel
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

R.B.C. Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16"-24 x 3/4" Hex Head Capscrew
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

36

Briggs & Stratton 26850

M6 (1/4") Shakeproof Washer

$

$

Not available

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0
