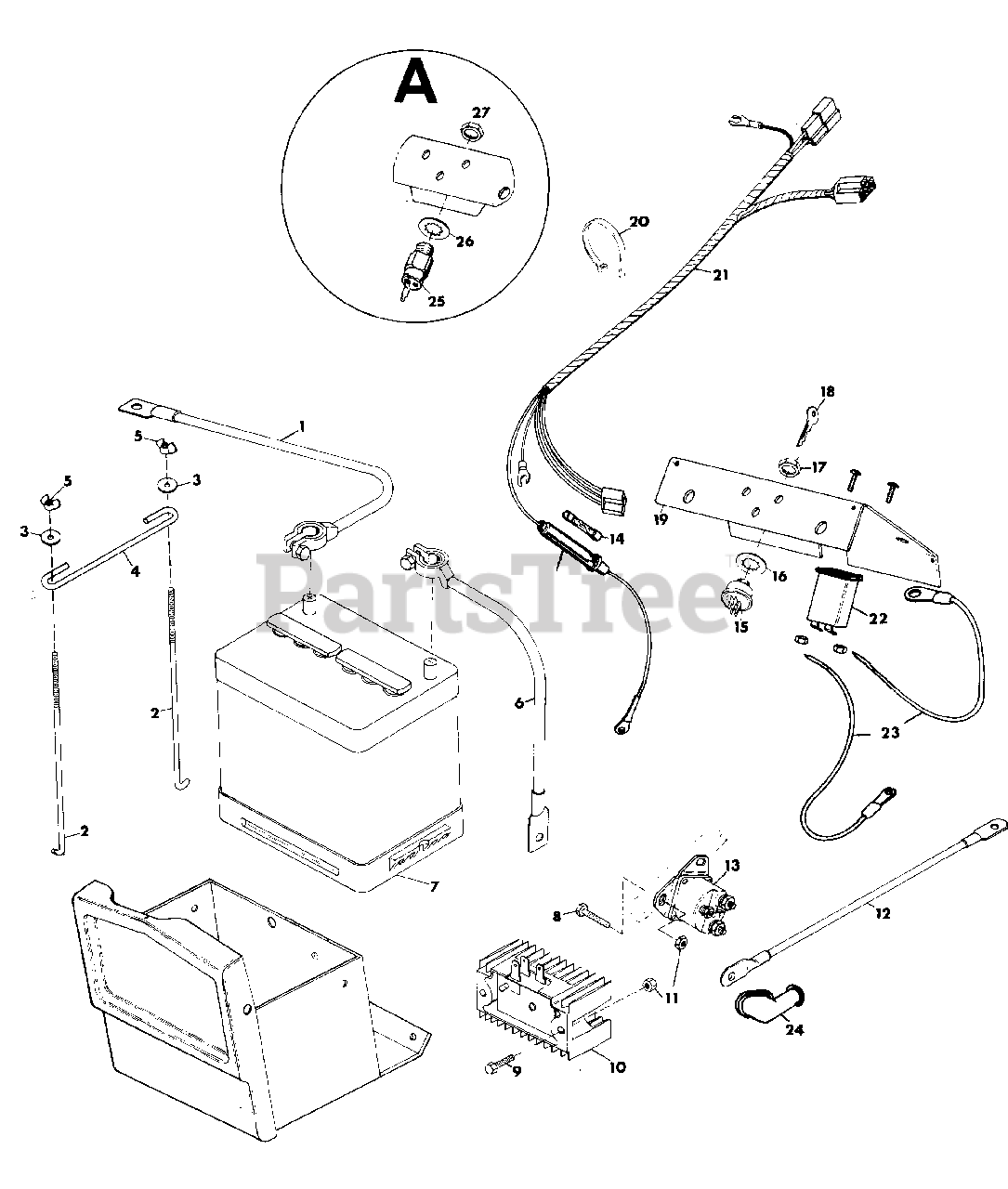

985032 (5240) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) ELECTRICAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

ELECTRICAL Parts Diagram

  • Title

1

Gravely 021368

CBL,POSITIVE BATTERY
(Superseded to 08516500)

$

$

Not available

2

Gravely 012894

BLT,HOLD-DOWN
(Superseded to 21370600)

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

4

Gravely 037743

HOLD DOWN,BATTERY
(Superseded to 20636600)

$

$

Not available

5

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

6

Gravely 006980

CBL,NEGATIVE BATTERY
(Superseded to 21327300)

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 037764

BAT,12V MAIN.FREE 22F

$

$

Not available

8

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

9

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (MODEL 5665)

$1.49

$

In Stock, only 3 left!

0

10

Gravely 018009

REG,RECTIFIER
(Superseded to 08505600)

Note: (MODEL 5665)

$

$

Not available

11

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (MODEL 5260)

$0.99

$

In Stock, Qty 10

0

11

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (MODEL 5665)

$0.99

$

In Stock, Qty 10

0

12

Gravely 006981

CBL,BATT.TO SOLONOID 8HP
(Superseded to 08547300)

$

$

Not available

13

Gravely 007277

SWITCH,MAG DEL1466
(Superseded to 20031900)

$53.99

$

In Stock, Qty 5

0

14

Gravely 014893

FUSE,30 AMP AGC- 30
(Superseded to 20176100)

$

$

Not available

15

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

$70.99

$

In Stock, Qty 9

0

16

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

Note: (MODEL 5260, 5665)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 019666

NUT,JAM 9/16-24 IND83024
(Superseded to 20287700)

Note: (MODEL 5260, 5665)

$3.49

$

In Stock, only 1 left!

0

18

Gravely 018570

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

19

Gravely 024751

KIT, PNL INSTR MANUAL W/DECAL
(Superseded to 58501800)

Note: (MODEL 5200, 5240, 5645)

$

$

Not available

19

Gravely 024744

KIT, INSTR PNL CNTRL W/DECAL
(Superseded to 58502000)

Note: (MODEL 5260,5665)

$

$

Not available

19

Gravely 037758

KIT, INSTR PNL CNTRL W/DECAL
(Superseded to 58502000)

Note: (MODEL 5665)

$

$

Not available

20

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 024759

HRNG WRG,5000 SERIES 3A
(Superseded to 20418401)

Note: (MODEL 5260,5665)

$72.99

$

Usually ships in 4-12 days

0

21

Gravely 019222

HRNS WRG,500 SERIES
(Superseded to 20275500)

Note: (MODEL 5665)

$

$

Not available

22

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

Note: (MODEL 5665)

$25.99

$

In Stock, Qty 17

0

23

Gravely 021425

WIRE,INSTRUMENT PANEL
(Superseded to 08801600)

Note: (MODEL 5665)

$

$

Not available

24

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

Note: (MODEL 5260, 5665)

$

$

Not available

25

Gravely 021104

SWITCH ASSEMBLY
(Superseded to 53204700)

$59.99

$

In Stock, only 1 left!

0

26

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

Note: (MODEL 5200, 5240, 5645)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 018585

NUT,JAM; 5/8-32
(Superseded to 21119800)

Note: (MODEL 5200, 5240, 5645)

$

$

Not available
