985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

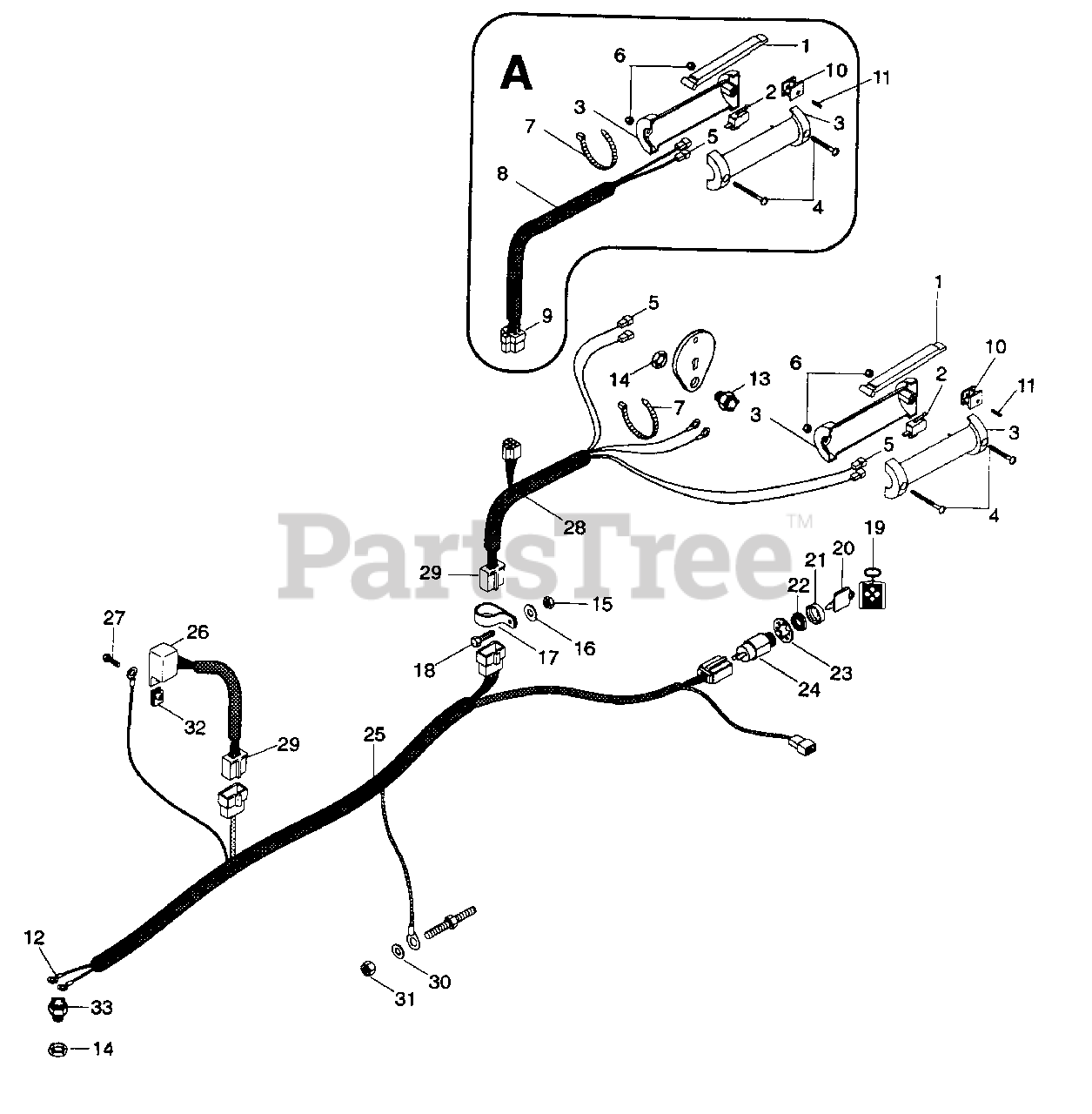

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 046822

LVR
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

3

Gravely 088702

HANDLE, L.H. & R.H.
(Superseded to 08870200)

$35.99

$

In Stock, only 2 left!

0

4

Gravely 159967

SCR-MCH 10-24 X 1.50 PHDCR
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 046988

TERMINAL, FEMALE
(Superseded to 08828400)

$

$

Not available

6

Gravely 190254

NUT-LK 10-24 NY PL
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 041634

TIE WRAP, BLACK
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 047307

HMS, STEERING BRAKE
(Superseded to 08567100)

$

$

Not available

9

Gravely 038057

CONNECTOR
(Superseded to 20645000)

$

$

Not available

10

Gravely 088551

HOLDER SWITCH
(Superseded to 08855100)

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 058081

PIN-ROLL .094 X .750
(Superseded to 05808100)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 051920

TERMINAL, EYELET
(Superseded to 08572000)

$

$

Not available

13

Gravely 051919

SWITCH, INTERLOCK CLOSED
(Superseded to 08571900)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 050365

WSHR-FL-STL 281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

17

Gravely 033340

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

18

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

19

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

20

Gravely 045488

IGNITION SWITCH KEY
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

21

Gravely 045490

CAP-IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

22

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

23

Gravely 063019

WSHR-LOCK INT .625 X .045 PL
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 524069

SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 1 left!

0

25

Gravely 051896

HMS, 8 & 12-HP RECOIL
(Superseded to 08570900)

$

$

Not available

26

Gravely 042178

MODULE, INTERLOCK RECOIL
(Superseded to 58500500)

$

$

Not available

27

Gravely 180018

BLT-HEX .25-20 X .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

28

Gravely 047306

HMS, WIRING HANDLE BAR
(Superseded to 08567001)

$77.99

$

Usually ships in 4-12 days

0

29

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

30

Gravely 120395

WSHR-FL-STL .469 X .938 X .065
(Superseded to 06429400)

$

$

Not available

31

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

32

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

33

Gravely 051918

SWITCH, INTERLOCK OPEN
(Superseded to 08571800)

$62.99

$

In Stock, only 3 left!

0
