985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FRAME (Cont.) Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

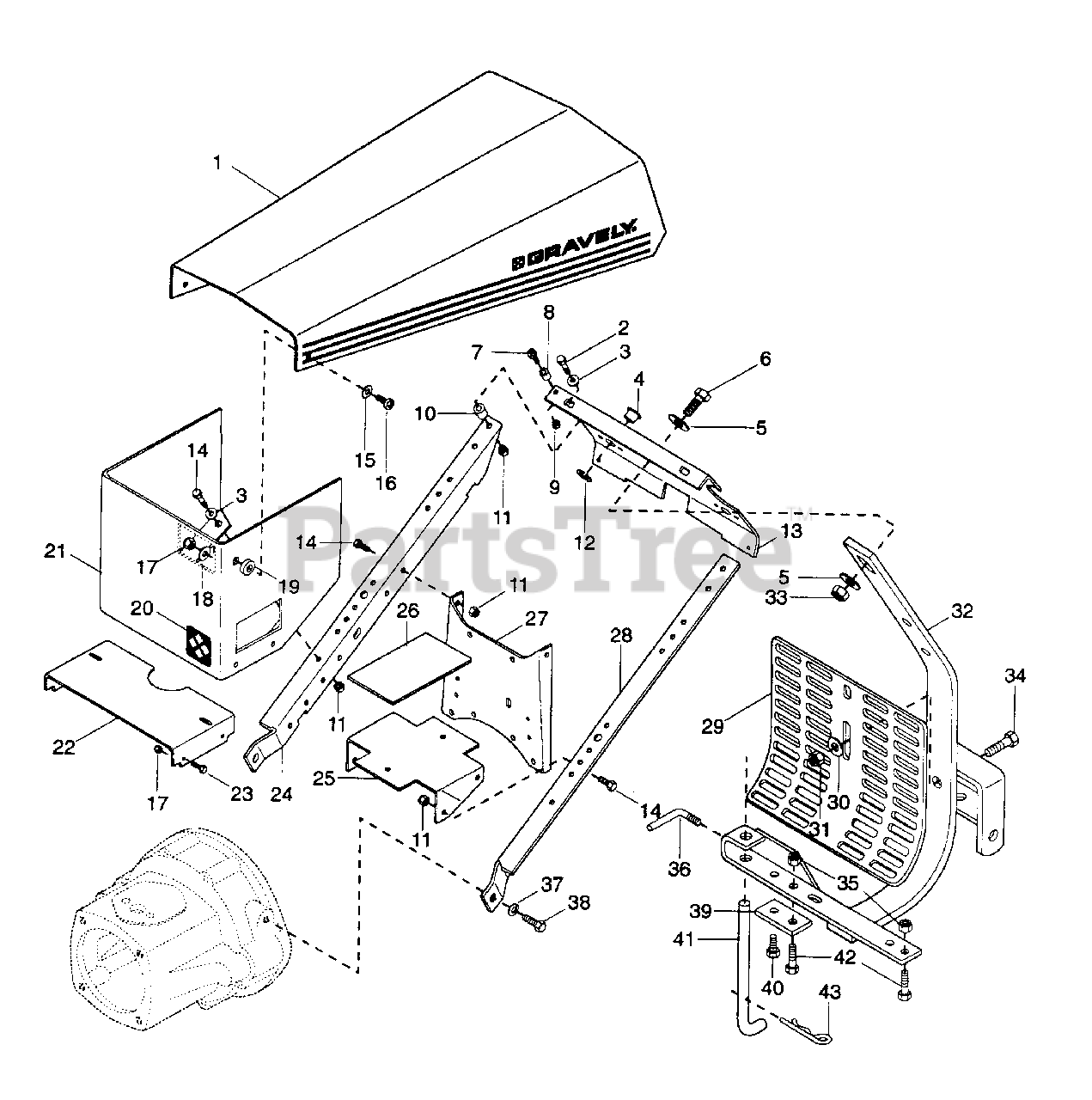

FRAME (Cont.) Parts Diagram

  • Title

1

Gravely 046755

HOOD SILK SCREEN
(Superseded to 68512900)

$205.99

$

Usually ships in 4-12 days

0

2

Gravely 180126

BLT-HEX .38-16 X 1.50 PL GR 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

3

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 034738

BUSH-FLG .515 X 1.00 X .745 NY
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

5

Gravely 421879

WSHR-FL-STL .656 X 1.25 X .100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 271723

BLT-HEX .625-11 X 2.00
(Superseded to 05968100)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 159341

SCR-MCH 6-32 X .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

9

Gravely 427254

NUT-LK-MCH 6-32 W/INSERT
(Superseded to 06538900)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 043922

BUSHING
(Superseded to 08553700)

$5.99

$

In Stock, Qty 15

0

11

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 034737

RG-RTNG 1.000 X .748
(Superseded to 05715100)

$

$

Not available

13

Gravely 044657

PLT, SILK SCREEN
(Superseded to 58500800)

$

$

Not available

14

Gravely 180121

BLT-HEX .380-16 X .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 050365

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

16

Gravely 160556

SCR-MCH .50-20 X 1
(Superseded to 06113600)

$

$

Not available

17

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

18

Gravely 446354

WSHR-FL-STL .313 X .875 X .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 041622

BUSH., F .280 X .750 X .318 NY
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

20

Gravely 010697

DECAL, COM. FRONT
(Superseded to 05216500)

$

$

Not available

21

Gravely 046387

SPRT, HOOD
(Superseded to 08564100)

$

$

Not available

22

Gravely 046390

BRKT
(Superseded to 08574400)

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 180018

BLT-HEX .25-20 X .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 046796

SPRT, HANDLE BAR R.H.
(Superseded to 08565400)

$90.99

$

Usually ships in 4-12 days

0

25

Gravely 046824

BRKT, TANK SUPPORT
(Superseded to 08565600)

$

$

Not available

26

Gravely 041075

PAD, GAS TANK
(Superseded to 08602600)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 046388

BRKT
(Superseded to 08564200)

$33.99

$

Usually ships in 4-12 days

0

28

Gravely 046797

SPRT, HANDLE BAR L.H.
(Superseded to 08565500)

$

$

Not available

29

Gravely 047190

GRD, ENGINE
(Superseded to 08566900)

$

$

Not available

30

Gravely 415543

WSHR-FL-STL .531 X 1.25 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

31

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 047527

WLDMT, HITCH
(Superseded to 08568100)

$

$

Not available

33

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

34

Gravely 180177

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

35

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

36

Gravely 013457

HNDL, ADJUSTING
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

37

Gravely 120384

WSHR-LOCK .50 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

38

Gravely 180173

BLT-HEX .50-13 X 1 PL GR 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

39

Gravely 050134

BRACKET
(Superseded to 08570500)

$

$

Not available

40

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

41

Gravely 034062

STAND, KICK
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

42

Gravely 180087

BLT-HEX .31-18 X 2.00 PL GR 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

43

Gravely 010405

PIN-HAIR-INT .15 X 2.937
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

Gravely 044131

DECAL, 16
(Superseded to 05211900)

Note: NS

$

$

Not available

Gravely 043418

DECAL, 8 LEAD
(Superseded to 05211300)

Note: NS

$

$

Not available
