985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

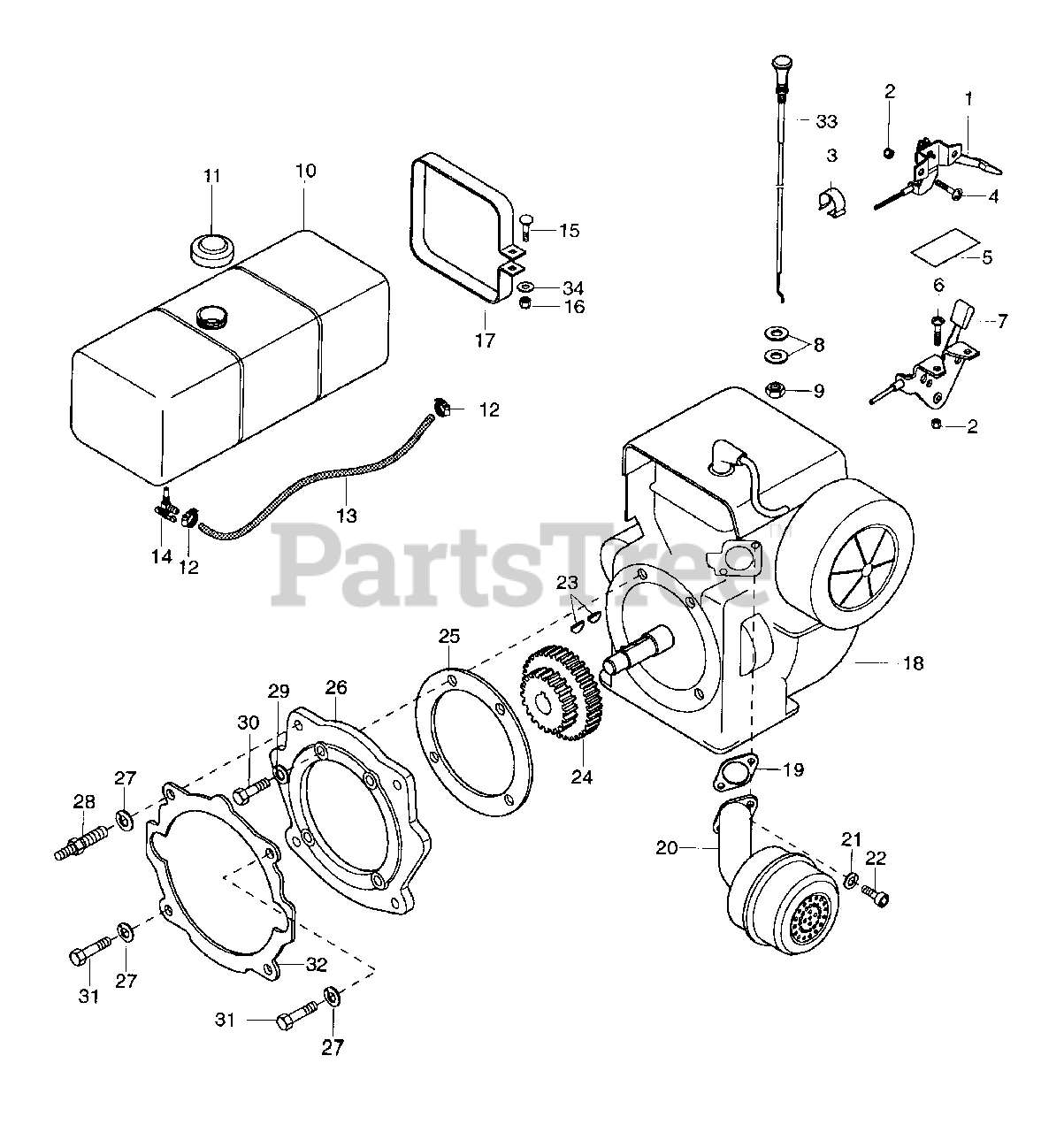

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 043429

LVR, CONTROL(8 HP ELECTRIC)
(Superseded to 06926900)

Note: (8 HP ELECTRIC)

$

$

Not available

1

Gravely 021103

LVR, THRTL CNTRL(8 HP MAN)
(Superseded to 06921900)

Note: (8 HP MAN)

$75.99

$

Usually ships in 4-12 days

0

2

Gravely 190254

NUT-LK 10-24 NY PL(8HP)
(Superseded to 06500915)

Note: (8HP)

$0.99

$

In Stock, only 4 left!

0

2

Gravely 190254

NUT-LK 10-24 NY PL(12 HP)
(Superseded to 06500915)

Note: (12 HP)

$0.99

$

In Stock, only 4 left!

0

3

Gravely 008260

CLAMP
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

4

Gravely 159967

SCR-MCH 10-24 X 1.50 PHDCR
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 021092

DECAL, THROTTLE
(Superseded to 05201200)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 159920

SCR-MCH 10-24 X .50 PHD(12 HP)
(Superseded to 06113000)

Note: (12 HP)

$1.99

$

In Stock, Qty 5

0

7

Gravely 044798

LVR, THROTTLE CONTROL(12 HP)
(Superseded to 06927600)

Note: (12 HP)

$52.99

$

In Stock, only 2 left!

0

7

Gravely 043429

LVR, CONTROL
(Superseded to 06926900)

$

$

Not available

8

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL(12 HP)
(Superseded to 06401013)

Note: (12 HP)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 124925

NUT JAM .375-24 PL(12 HP)
(Superseded to 06500739)

Note: (12 HP)

$2.49

$

In Stock, Qty 5

0

10

Gravely 010636

ASM, FUEL TANK(12 HP)
(Superseded to 08575100)

Note: (12 HP)

$387.99

$

Usually ships in 4-12 days

0

11

Gravely 010756

CAP, GAS TANK(12 HP)
(Superseded to 08582100)

Note: (12 HP)

$40.99

$

In Stock, only 1 left!

0

12

Gravely 032045

HOSE CLAMP(12 HP)
(Superseded to 06924300)

Note: (12 HP)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 021134

GAS LINE-BULK(12 HP)
(Superseded to 03278100)

Note: (12 HP)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 007354

VLV, AND STRAINER(12 HP)
(Superseded to 08860200)

Note: (12 HP)

$17.99

$

In Stock, only 3 left!

0

15

062045

BLT-RDHDSQNK .25-20 X 1.75(12 HP)

Note: (12 HP)

$

$

Not available

16

Gravely 419454

NUT-LK-NYL .250-20 PL(12 HP)
(Superseded to 06500832)

Note: (12 HP)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 010640

STRAP, FUEL TANK(12 HP)
(Superseded to 08581800)

Note: (12 HP)

$46.99

$

Usually ships in 4-12 days

0

18

Gravely 041645

ENG, 12 HP ELECT.

$

$

Not available

18

Gravely 041646

ENG, 12 HP MAN

$

$

Not available

18

Gravely 041643

ENG, 8 HP ELECT.

$

$

Not available

18

Gravely 041644

ENG, 8 HP RECOIL

$

$

Not available

19

Gravely 044390

GASKET, EXHAUST(12 HP)
(Superseded to 08824700)

Note: (12 HP)

$10.99

$

In Stock, only 1 left!

0

20

Gravely 040868

MUFFLER, 12 HP(12 HP)
(Superseded to 08545400)

Note: (12 HP)

$287.99

$

Usually ships in 4-12 days

0

21

Gravely 120214

WSHR-LOCK .313 X .078 PL(12 HP)
(Superseded to 06300119)

Note: (12 HP)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 421705

SCR-CAP .31-18 X .75 S/HD(12 HP)
(Superseded to 05901827)

Note: (12 HP)

$2.99

$

In Stock, Qty 7

0

23

Gravely 124546

KEY, WDRF .16 X .63 HRD # 6
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 017838

GR, 10/12 DP 21/30 TEETH
(Superseded to 08505300)

$

$

Not available

25

Gravely 010732

GSKT, ENGINE TO ADAPTER(12 HP)
(Superseded to 08602700)

Note: (12 HP)

$10.99

$

Usually ships in 4-12 days

0

25

Gravely 015718

GSKT, ENGINE TO ADAPTER(8 HP)
(Superseded to 08500400)

Note: (8 HP)

$9.99

$

Usually ships in 4-12 days

0

26

Gravely 010731

ADPT, ENGINE(12 HP)
(Superseded to 09022100)

Note: (12 HP)

$

$

Not available

26

Gravely 014938

ADPT, ENGINE(8 HP)
(Superseded to 08503200)

Note: (8 HP)

$

$

Not available

27

Gravely 131100

WSHR-LOCK .438 X .133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

29

Gravely 131099

WSHR-LOCK .375 X .115 HVY PL
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

30

Gravely 180122

BLT-HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 180149

BLT-HEX BLT-HEX .44-14 X 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 010635

GSKT, CHASSIS TO ADAPTER
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

33

Gravely 120395

WSHR-FL-STL .469 X .938 X .065
(Superseded to 06429400)

$

$

Not available

34

Gravely 044797

LVR, CHOKE CONTROL(12 HP)
(Superseded to 06927500)

Note: (12 HP)

$

$

Not available

35

Gravely 050365

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0
