985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM (Cont.) Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

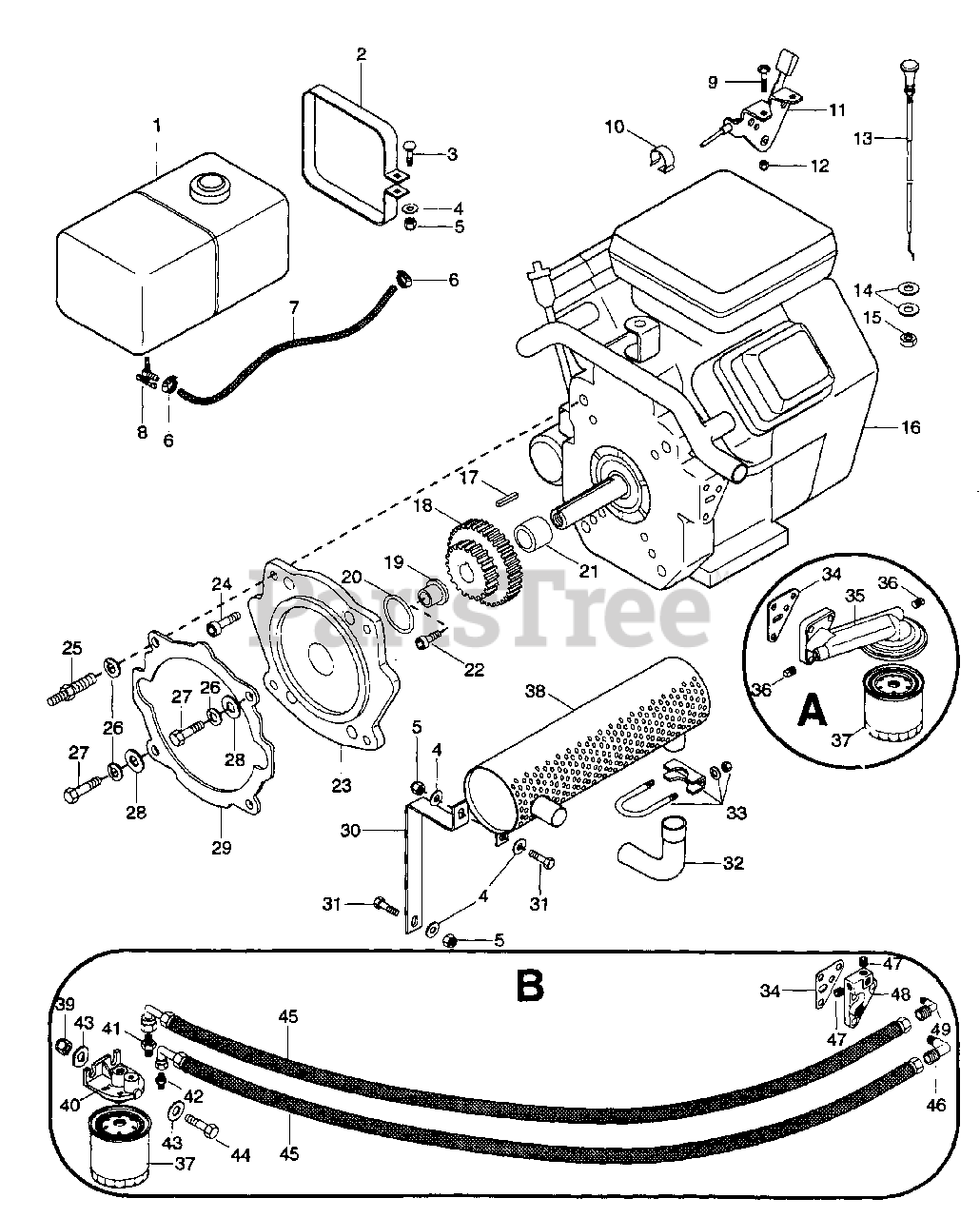

FUEL AND EXHAUST SYSTEM (Cont.) Parts Diagram

  • Title

1

Gravely 08575151

TANK, FUEL, W/CAP, BLACK, 2-WHL TR
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010640

STRAP, FUEL TANK
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

3

062045

BLT-RDHDSQNK .25-20 X 1.75 SHT PL

$

$

Not available

4

Gravely 050365

WSHR-FL-STL .312 X .734 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

6

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

GAS LINE-BULK
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 007354

VLV, AND STRAINER
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 159920

SCR-MCH 10-24 X .50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

10

Gravely 008260

CLAMP
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

11

Gravely 050133

CONTROL, CHOKE
(Superseded to 06929400)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 190254

NUT-LK 10-24 NY PL
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

13

Gravely 050132

LVR, CHOKE CONTROL 8 HP
(Superseded to 06929300)

$

$

Not available

14

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 124925

NUT JAM .375-24 PL
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

16

Gravely 082410

ENG, 16-HP B & S(2-WHL)

Note: (2-WHL)

$

$

Not available

17

Gravely 009213

KEY-SQ .248 X 1.0 X .248
(Superseded to 00966045)

$2.99

$

In Stock, Qty 11

0

18

Gravely 046410

GR, B & S ENGINE
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

19

Gravely 046411

PILOT, GEAR
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

20

Gravely 047144

O-RING 1.850 X 2.27 X .210
(Superseded to 05617900)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 046436

BUSH., S 1.05 X 1.31 X 1.54 ST
(Superseded to 08567400)

$28.99

$

Usually ships in 4-12 days

0

22

Gravely 453440

SCR-MCH .38-24 X 1.00
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 046989

ADAPTER, B & S ENGINE
(Superseded to 08565700)

$

$

Not available

24

Gravely 421648

SCR-SKH .44-14 X 1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

26

Gravely 131100

WSHR-LOCK .438 X .133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 180149

BLT-HEX .44-14 X 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

28

Gravely 120395

WSHR-FL-STL .469 X .938 X .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 010635

GSKT, CHASSIS TO ADAPTER
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

30

Gravely 049327

BRKT, EXHAUST
(Superseded to 08569900)

$

$

Not available

31

Gravely 180022

BLT-HEX .25-20 X 1.00 PL GR 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

32

Gravely 049191

ELBOW
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

CLAMP-MUFFLER 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 805250

GASKET, OIL FILTER ADAPTER

$

$

Not available

35

Gravely 085183

OIL FILTER MANIFOLD S/N 201 AND UP.
(Superseded to 08518300)

$113.99

$

Usually ships in 4-12 days

0

36

Gravely 070272

PLUG-PIPE 1/16-27 S/N 201 AND UP.
(Superseded to 07027200)

$

$

Not available

37

Gravely 491056

FILTER, OIL

$9.99

$

In Stock, Qty 20+

0

38

Gravely 044399

MUFFLER, 16 HP
(Superseded to 08555600)

$

$

Not available

39

Gravely 419455

NUT-LK-NYL .312-18 PL S/N 101-200
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

40

491656

ASM, OIL FILTER MOUNT S/N 101-200

$

$

Not available

41

Gravely 050063

FITTING, STR 6 FT X-S S/N 101-200
(Superseded to 07022900)

$

$

Not available

42

Gravely 050064

FITTING, STR 6-2 FT X-S S/N 101-200
(Superseded to 07023000)

$

$

Not available

43

Gravely 120393

WSHR-FL-STL .344 X .688 X .065 S/N 101-200
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

44

Gravely 180081

BLT-HEX .31-18 X 1.25 PL GR 5 S/N 101-200
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

45

Gravely 049356

ASM, HOSE S/N 101-200
(Superseded to 08570000)

$

$

Not available

46

Gravely 049227

ADPTR-PIPE .56-18 S/N 101-200
(Superseded to 07022500)

$

$

Not available

47

Gravely 444855

PLUG, 1/8-27 PIPE HEX SCKT S/N 101-200
(Superseded to 07025600)

$

$

Not available

48

Gravely P805353

ADPT, OIL FILTER S/N 101-200

$

$

Not available

49

Gravely 049228

ADPTR-PIPE .90 X 1.06 S/N 101-200
(Superseded to 07022400)

$

$

Not available
