985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) GEAR SHIFT CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

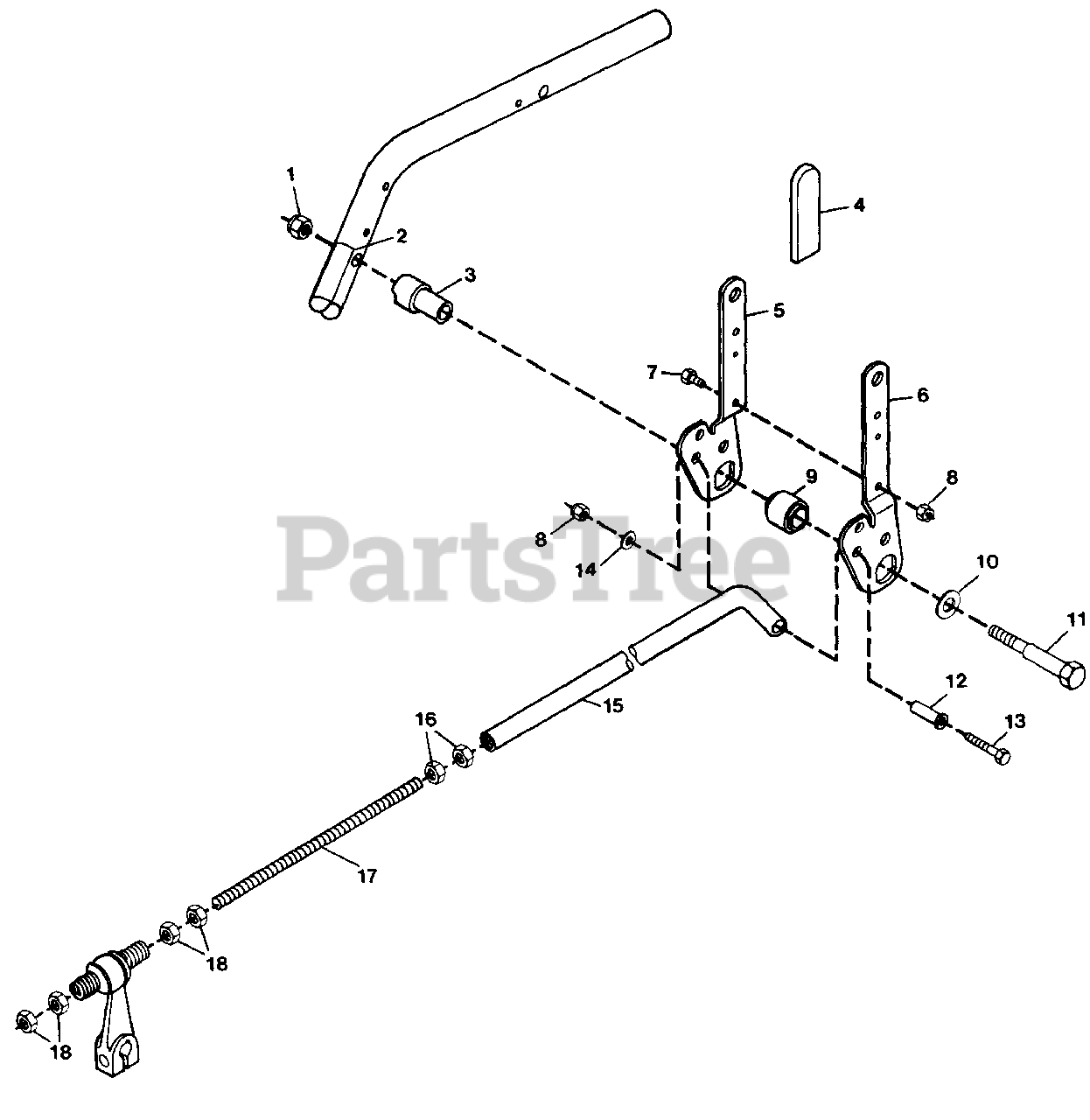

GEAR SHIFT CONTROL Parts Diagram

  • Title

1

Gravely 020541

NUT, LOCK 1/2-13 E.T.
(Superseded to 06527200)

$

$

Not available

2

Gravely 021091

DECAL, GEAR SHIFT
(Superseded to 05201100)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 041614

PIVOT, HAND LEVER L.H.
(Superseded to 08546700)

$

$

Not available

4

Gravely 044139

GRIP, HANDLE
(Superseded to 07529000)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 041616

HANDLE, CONTROL R.H.
(Superseded to 08546900)

$

$

Not available

6

Gravely 041615

HANDLE, CONTROL L.H.
(Superseded to 08546800)

$

$

Not available

7

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

9

Gravely 041594

BUSHING, HANDLE
(Superseded to 07526300)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 047566

BOLT, HEX STEP
(Superseded to 07022800)

$

$

Not available

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

12

Gravely 041244

BUSHING, OPER. PRESENCE HANDLE
(Superseded to 05521000)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 180034

BOLT, HEX 1/4-20X1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

14

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

15

Gravely 045575

ROD, CONTROL HI-LO
(Superseded to 08560500)

$

$

Not available

16

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 045577

ROD, CONTROL EXTENSION
(Superseded to 08600200)

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0
