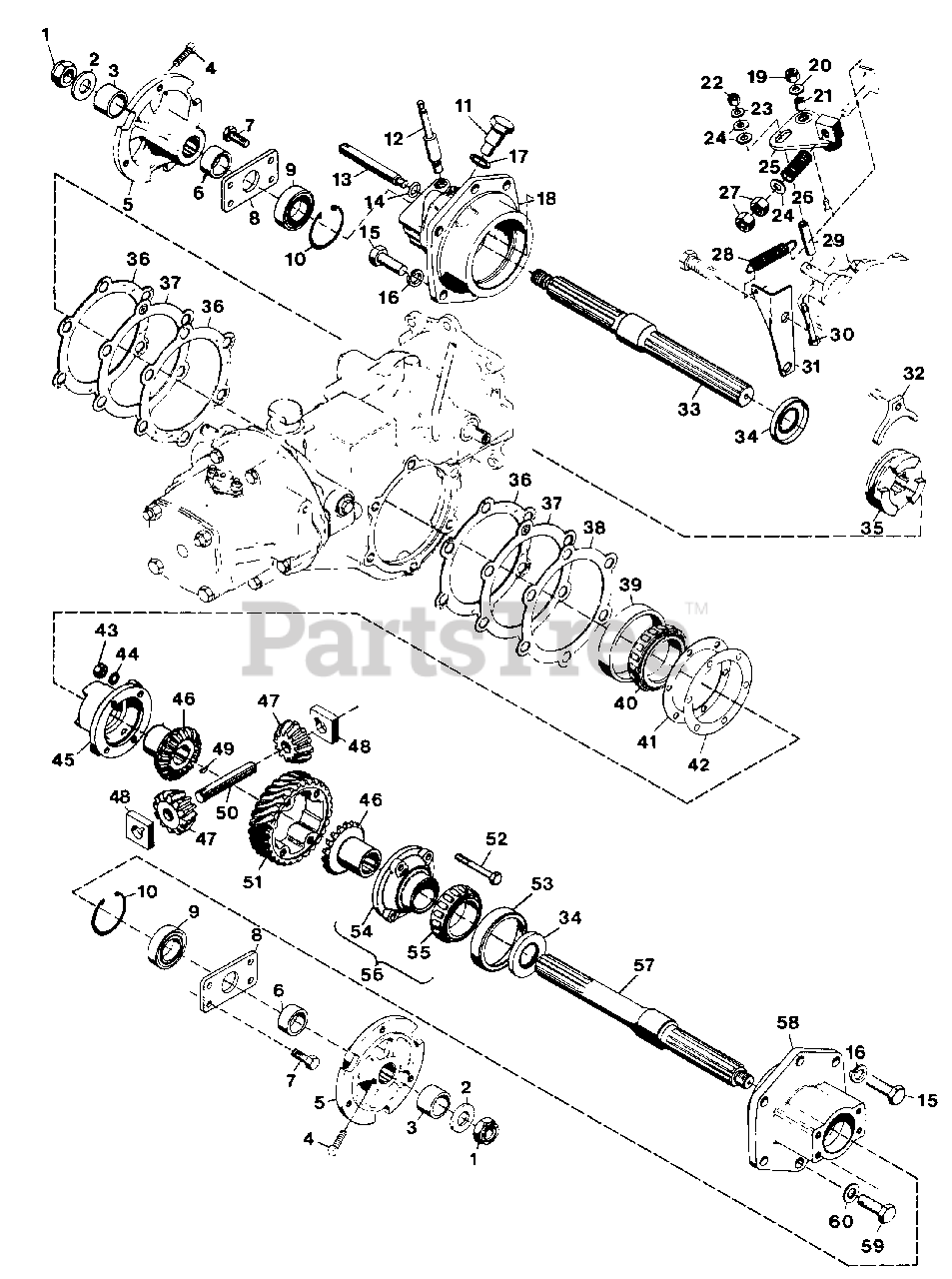

985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) STANDARD DIFFERENTIAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

STANDARD DIFFERENTIAL Parts Diagram

  • Title

1

Gravely 022502

NUT, HEX 3/4-10 LIGHT THIN
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

WASHER, FLAT .812X1.469X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 17

0

3

Gravely 022512

SPACER
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 022507

HUB, WHEEL
(Superseded to 58501600)

$541.99

$

Usually ships in 4-12 days

0

5

Gravely 426913

SCREW, SET 7/16-14X1.00 SQHCP
(Superseded to 21069400)

$

$

Not available

6

Gravely 022501

SPACER
(Superseded to 08524600)

$

$

Not available

7

Gravely 022503

PLATE, END
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 180120

BOLT, HEX 3/8-16X.750
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

9

Gravely 032050

BEARING, BALL 1.000X2.000X.562
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 022497

RING, RETAINING 2.000 BORE
(Superseded to 05714200)

$2.99

$

In Stock, Qty 7

0

11

Gravely 022495

HOUSING, AXLE
(Superseded to 08524200)

$

$

Not available

12

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

13

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

14

Gravely 022493

AXLE, STRAIGHT
(Superseded to 08524000)

$

$

Not available

15

Gravely 022506

SEAL, OIL 1.188X2.000X.250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

16

Gravely 012595

SHIM, AXLE HOUSING .005
(Superseded to 08589700)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 012597

GASKET, AXLE HOUSING
(Superseded to 08556700)

$8.99

$

Usually ships in 4-12 days

0

18

Gravely 012596

SHIM, AXLE HOUSING .020

$

$

Not available

19

Gravely 012130

CUP, ROLLER BEARING
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

20

Gravely 012131

CONE, ROLLER BEARING
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

21

Gravely 120368

NUT, HEX 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 138538

WASHER, LOCK 5/16 INT. TOOTH
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 022504

HOUSING, DIFFERENTIAL
(Superseded to 08524900)

$

$

Not available

24

Gravely 022561

ASSEMBLY, DIFFERENTIAL HOUSING
(Superseded to 21159600)

$

$

Not available

25

Gravely 006709

GEAR, DIFFERENTIAL BEVEL
(Superseded to 08577700)

$

$

Not available

26

Gravely 271089

KEY, WOODRUFF .125X.375 HARD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 012556

PIN, SPIDER PINION
(Superseded to 08589200)

$

$

Not available

28

Gravely 006708

GEAR, SPIDER BEVEL
(Superseded to 08577600)

$

$

Not available

29

Gravely 022505

BLOCK, DRIVE
(Superseded to 08525000)

$

$

Not available

30

Gravely 013498

GEAR, 6 LEAD WORM
(Superseded to 08500300)

$382.99

$

Usually ships in 4-12 days

0

31

Gravely 022554

ASSEMBLY, DIFF. STD. 6 LEAD
(Superseded to 21159300)

$

$

Not available

32

Gravely 181623

BOLT, HEX 5/16-24X2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 013624

BOLT, HEX 1/2-13X1 NYLON INSERT
(Superseded to 05941200)

$

$

Not available

34

Gravely 045280

SEAL, OIL DRAIN
(Superseded to 06432900)

$2.49

$

Usually ships in 4-12 days

0
