985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) STEERING BRAKES Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

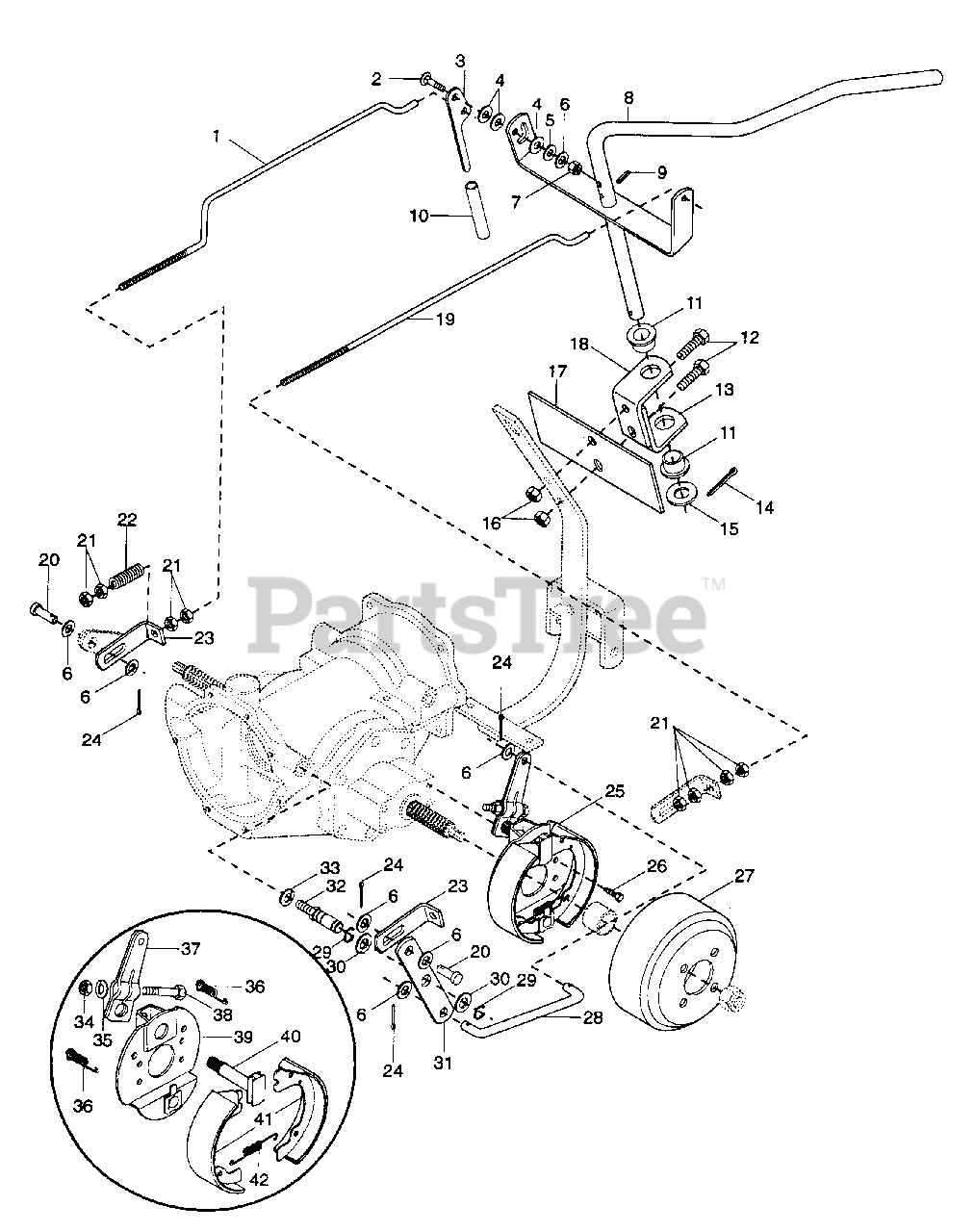

STEERING BRAKES Parts Diagram

  • Title

1

Gravely 042000

ROD, BRAKE
(Superseded to 08599700)

$30.99

$

Usually ships in 4-12 days

0

1

Gravely 049731

ROD, BRAKE R.H.
(Superseded to 08600600)

$64.99

$

Usually ships in 4-12 days

0

2

Gravely 126411

BLT-RDHDSQNK .38-16 X 1.50
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 023391

HNDL, PARKING BRAKE
(Superseded to 08529500)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 020775

WSHR-FL-NY .375 X .75 X .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0

5

Gravely 023394

WSHR-RUBBER .375 X .75 X .125
(Superseded to 06433700)

$

$

Not available

6

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 047160

WLDMT, BRAKE HANDLE
(Superseded to 08566600)

$310.99

$

Usually ships in 4-12 days

0

9

Gravely 273921

PIN-ROLL .313 X 2.00
(Superseded to 05801300)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 044347

GRIP, BRAKE HANDLE
(Superseded to 07529200)

$

$

Not available

11

Gravely 047070

BSHG-FLG 1.082 X 1.385 X .870 X 1.75
(Superseded to 05517700)

$

$

Not available

12

Gravely 180181

BLT-HEX .50-13 X 2.00 PL GR 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 041850

BRKT, BRAKE HANDLE
(Superseded to 08547851)

$

$

Not available

14

Gravely 103409

PIN-COTR .188 X 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

15

Gravely 046806

WSHR-FL-STL 1.120 X 1.500 X .092
(Superseded to 06445300)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 043395

PLT, INSTRUCTION
(Superseded to 58501000)

$

$

Not available

18

Gravely 041851

BRKT, BRAKE HANDLE
(Superseded to 08547951)

$

$

Not available

19

Gravely 042020

ROD, BRAKE L.H.
(Superseded to 08599800)

$

$

Not available

19

Gravely 049732

ROD, BRAKE L.H.
(Superseded to 08600700)

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 431780

PIN, CLEVIS 3/8 X .750
(Superseded to 08573400)

$

$

Not available

21

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 5

0

22

Gravely 023392

SG-COMP .105 X .61 X 2.50 WLD 180
(Superseded to 08330200)

$82.99

$

Usually ships in 4-12 days

0

23

Gravely 023389

BRKT, ADJUSTMENT
(Superseded to 08529400)

$46.99

$

Usually ships in 4-12 days

0

24

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

25

Gravely 023384

BRK, 7 X 1-3/4 MECHANICAL
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

26

Gravely 180121

BLT-HEX .380-16 X .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

27

Gravely 023385

DRUM, 7 X 1-3/4
(Superseded to 04903400)

$

$

Not available

28

Gravely 023388

ROD, BRAKE LINK
(Superseded to 08598600)

$

$

Not available

29

Gravely 018053

RG-RTNG-EXT .480 X .042
(Superseded to 05708300)

$0.99

$

In Stock, only 4 left!

0

30

Gravely 131016

WSHR-FL-STL .656 X 1.312 X .095 PL
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

31

Gravely 023387

PLT, PIVOT
(Superseded to 08529300)

$

$

Not available

32

Gravely 041847

STUD, PIVOT
(Superseded to 08547600)

$

$

Not available

33

Gravely 120384

WSHR-LOCK .50 REG
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

34

Gravely 120368

NUT-HEX .312-24 ZC
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 023509

SPRG, SHOE RET BOX
(Superseded to 08530300)

$34.99

$

Usually ships in 4-12 days

0

37

Gravely 023505

ARM, CAM LVR
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

38

Gravely 181618

BLT-HEX .31-24 X 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

39

Gravely 023507

PLT, BACK(BENDIX # 310949)
(Superseded to 08530100)

Note: (BENDIX # 310949)

$

$

Not available

40

Gravely 023506

CAM, BRAKE
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

41

Gravely 023539

KIT, PAIR BRAKE SHOES(BEN 317974)
(Superseded to 08530400)

Note: (BEN 317974)

$268.99

$

Usually ships in 4-12 days

0

42

Gravely 023508

SPRG, SHOE RTN
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0
