985108 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric (SN: 000101 & Above)

Walk-Behind 2-Wheel Tractor, 12hp, Electric

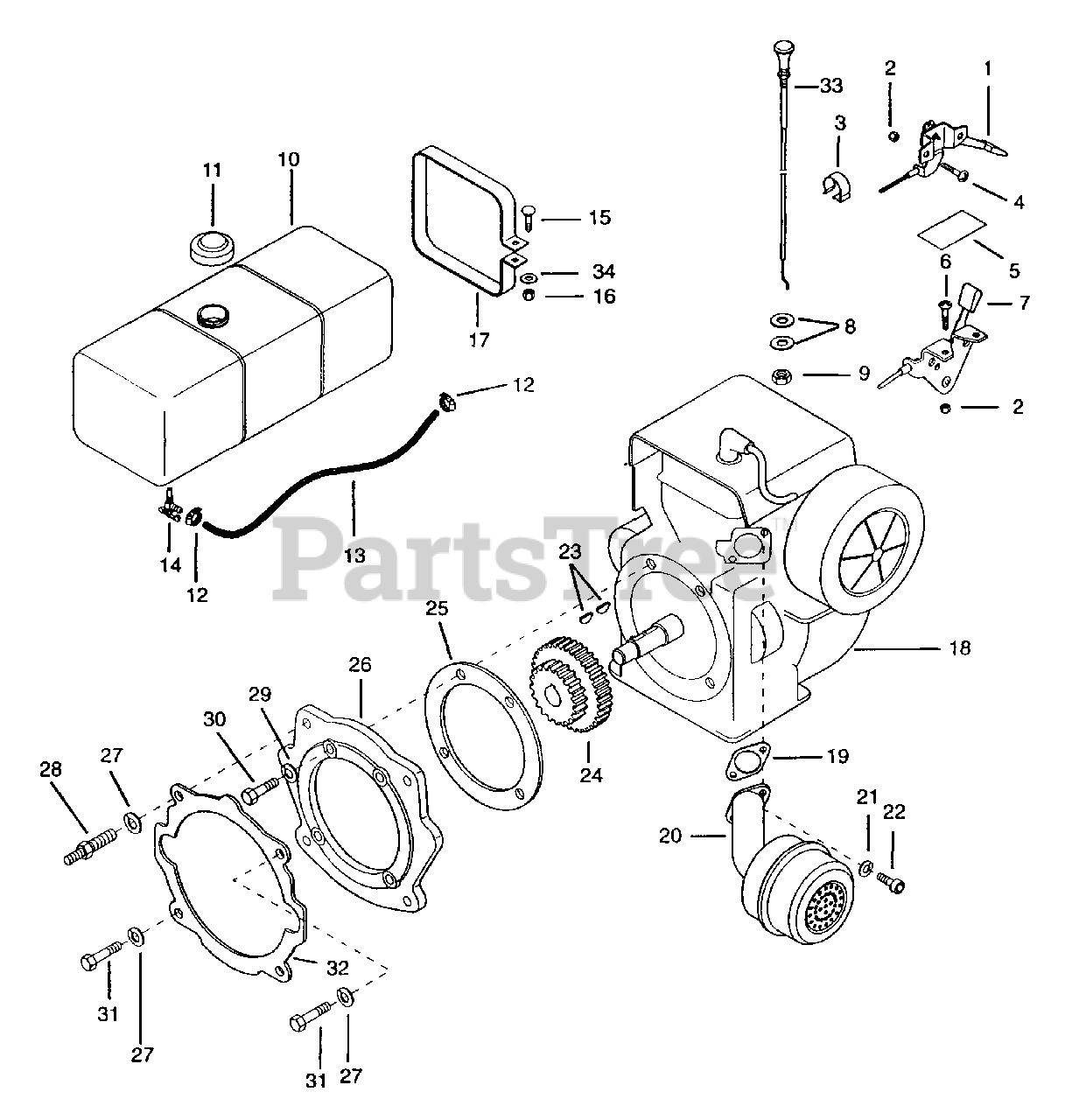

985108 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric (SN: 000101 & Above) > Parts Diagrams (16) > FUEL AND EXHAUST SYSTEM - PROFESSIONAL 8 AND 12

  • Title
043429

1

Lever, Control Plated

Part# 043429 (Superseded to 06926900)

Note: Model (105)

OEM Warranty Repair Part for Gravely

Not available

021103

Lever, Throttle Control Plated

Part# 021103 (Superseded to 06921900)

Note: Models (103,104)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

190254

2

Nut-Locking 10-24

Part# 190254 (Superseded to 06536000)

Note: Models (103,104,105)

OEM Warranty Repair Part for Gravely

Not available

190254

Nut-Locking 10-24

Part# 190254 (Superseded to 06536000)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Not available

008260

3

Clamp

Part# 008260 (Superseded to 06901200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

159967

4

Screw-Machine 10-24 x 1.50

Part# 159967 (Superseded to 06118300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

021092

5

Decal, Throttle

Part# 021092 (Superseded to 05201200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

159920

6

Screw-Machine 10-24 x .50

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

044798

7

Lever, Throttle Control Plated

Part# 044798 (Superseded to 06927600)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

043429

Lever, Control Plated

Part# 043429 (Superseded to 06926900)

OEM Warranty Repair Part for Gravely

Not available

120394

8

Washer-Flat-Steel .406 x .812 x .065

Part# 120394 (Superseded to 06436200)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

124925

9

Nut-Jam .375-24

Part# 124925 (Superseded to 06534700)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

010636

10

Assembly, Fuel Tank

Part# 010636 (Superseded to 08575100)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $305.98

010756

11

Cap, Gas Tank

Part# 010756 (Superseded to 08582100)

Note: Models (106,107,106)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $38.05

032045

12

Hose Clamp

Part# 032045 (Superseded to 06924300)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

021134

13

Ft. Gas Line-Bulk

Part# 021134 (Superseded to 03278100)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

007354

14

Valve & Strainer

Part# 007354 (Superseded to 08860200)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06204500

15

Bolt-Round Head Square Neck.25-20 x 1.75

Part# 06204500 (Superseded to 06222600)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

419454

16

Nut-Locking-Nylon .250-20 Grade 2

Part# 419454 (Superseded to 06531000)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

010640

17

Strap, Fuel Tank

Part# 010640 (Superseded to 08581800)

Note: Models

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

041645

18

Engine, 12 HP Electric Magnum

Part# 041645

Note: Models (107,108)

OEM Warranty Repair Part for Gravely

Not available

041646

Engine, 12 HP Man Magnum

Part# 041646

Note: Model (106)

OEM Warranty Repair Part for Gravely

Not available

041643

Engine, 8 HP Electric

Part# 041643

Note: Model (105)

OEM Warranty Repair Part for Gravely

Not available

041644

Engine, 8 HP Recoil

Part# 041644

Note: Models (103,104)

OEM Warranty Repair Part for Gravely

Not available

044390

19

Gasket, Exhaust

Part# 044390 (Superseded to 08824700)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.88

040868

20

Muffler, 12 HP

Part# 040868 (Superseded to 08545400)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $248.36

120214

21

Washer-Lock .313 x .078

Part# 120214 (Superseded to 06308600)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

421705

22

Screw-Cap .31-18 x .75

Part# 421705 (Superseded to 05933100)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

124546

23

Key-Woodruff .16 x .63

Part# 124546 (Superseded to 06608500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

017838

24

Gear, 10/12 DP 21/30 Teeth

Part# 017838 (Superseded to 08505300)

OEM Warranty Repair Part for Gravely

Not available

010732

25

Gasket, Engine to Adaptor

Part# 010732 (Superseded to 08602700)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.34

015718

Gasket, Engine to Adapter

Part# 015718 (Superseded to 08500400)

Note: Models (103,104,105)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

010731

26

Adapter, Engine

Part# 010731 (Superseded to 09022100)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $215.55

014938

Adapter, Engine

Part# 014938 (Superseded to 08503200)

Note: Models (103,104,105)

OEM Warranty Repair Part for Gravely

Not available

131100

27

Washer-Lock .438 x .133

Part# 131100 (Superseded to 06310700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

040404

28

Stud

Part# 040404 (Superseded to 08541700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

131099

29

Washer-Lock .375 x .155

Part# 131099 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

180122

30

Bolt-Hex .375-16 x 1.00 Grade 5

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180147

31

Bolt-Hex .44-14 x 1.25 Grade 5

Part# 180147 (Superseded to 05964800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

010635

32

Gasket, Chassis to Adapter

Part# 010635 (Superseded to 08602800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $15.21

044797

33

Lever, Choke Control Plated

Part# 044797 (Superseded to 06927500)

Note: Models (106,107,108)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

050365

34

Washer-Flat-Steel .281 x .620 x .065

Part# 050365 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84
