985109 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FRAME - PROFESSIONAL 16 B & S Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

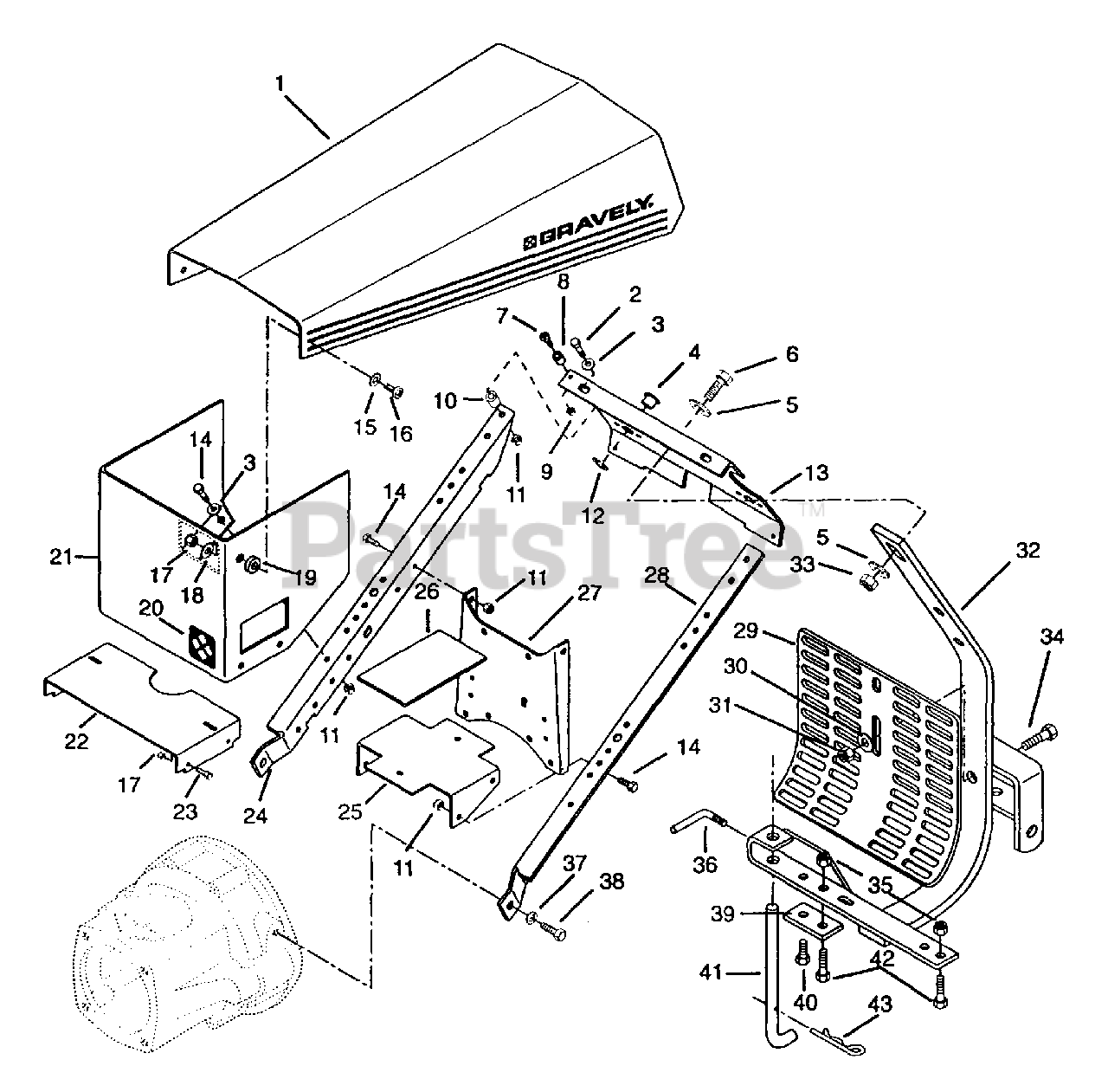

FRAME - PROFESSIONAL 16 B & S Parts Diagram

  • Title

1

Gravely 046755

Hood Silk Screen
(Superseded to 68512900)

$205.99

$

Usually ships in 4-12 days

0

2

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

3

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

5

Gravely 421879

Washer-Flat-Steel .656 x 1.250 x .100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 271723

Bolt-Hex .625-11 x 2.00
(Superseded to 05968100)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 159341

Screw-Machine 6-32 x .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

9

Gravely 427254

Nut-Locking-Machine 6-32
(Superseded to 06538900)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, Qty 15

0

11

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 034737

Ring-Retaining 1.000 x.748
(Superseded to 05715100)

$

$

Not available

13

Gravely 044657

Plate, Silk Screen
(Superseded to 58500800)

$

$

Not available

14

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

16

Gravely 160556

Screw-Machine .250-20 x 1
(Superseded to 06113600)

$

$

Not available

17

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

18

Gravely 446354

Washer-Flat-Steel .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 041622

Bushing, Flange 280 x .750 x .318
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

20

Gravely 010697

Decal, Comm. Front
(Superseded to 05216500)

$

$

Not available

21

Gravely 046387

Support, Hood
(Superseded to 08564100)

$

$

Not available

22

Gravely 046390

Bracket
(Superseded to 08574400)

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 046796

Support, Handle Bar Right Hand
(Superseded to 08565400)

$90.99

$

Usually ships in 4-12 days

0

25

Gravely 046824

Bracket, Tank Support
(Superseded to 08565600)

$

$

Not available

26

Gravely 041075

Pad, Gas Tank
(Superseded to 08602600)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 046388

Bracket
(Superseded to 08564200)

$33.99

$

Usually ships in 4-12 days

0

28

Gravely 046797

Support, Handle Bar Left Hand
(Superseded to 08565500)

$

$

Not available

29

Gravely 047190

Guard, Engine
(Superseded to 08566900)

$

$

Not available

30

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

31

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 047527

Weldment, Hitch
(Superseded to 08568100)

$

$

Not available

33

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, Qty 16

0

34

Gravely 180177

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

35

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

36

Gravely 013457

Handle, Adjusting
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

37

Gravely 120384

Washer-Lock.50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

38

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

39

Gravely 050134

Bracket
(Superseded to 08570500)

$

$

Not available

40

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

41

Gravely 034062

Stand, Kick
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

42

Gravely 180087

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

43

Gravely 010405

Pin-Hair-Internal .15 x 2.937
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

Gravely 044131

Decal, 16
(Superseded to 05211900)

Note: Not Shown

$

$

Not available

Gravely 043418

Decal, 8 Lead
(Superseded to 05211300)

Note: Not Shown

$

$

Not available
