985109 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - PROFESSIONAL 16 B & S Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

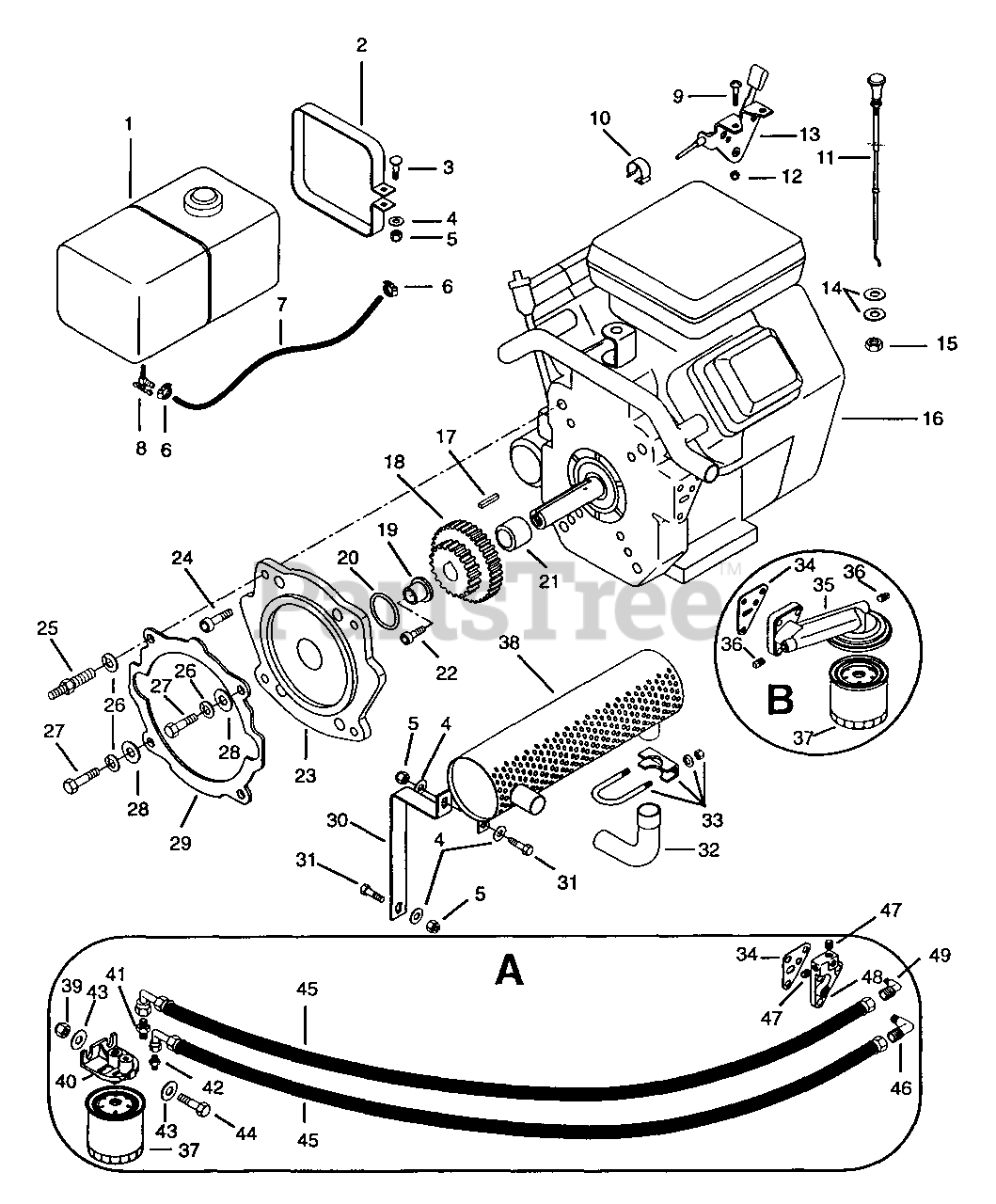

FUEL AND EXHAUST SYSTEM - PROFESSIONAL 16 B & S Parts Diagram

  • Title

1

Gravely 08575151

TANK,FUEL,W/CAP,BLACK,2-WHL TR
(Superseded to 08575100)

$395.99

$

Usually ships in 4-12 days

0

2

Gravely 010640

STRAP,FUEL TANK
(Superseded to 08581800)

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 06204500

BLT-RDHDSQNK .25-20X1.75SHT PL
(Superseded to 06222600)

$9.99

$

In Stock, only 1 left!

0

4

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

6

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 007354

VALVE & STRAINER
(Superseded to 08860200)

$

$

Not available

9

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 008260

CLAMP
(Superseded to 06901200)

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06929400

CONTROL, CHOKE

$

$

Not available

12

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06929300

LEVER,CHOKE CONTROL 8 HP

$

$

Not available

14

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 124925

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 08241000

ENG,16-HP B&S (2-WHL)

$

$

Not available

17

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$3.49

$

In Stock, Qty 14

0

18

Gravely 046410

GR,B&S ENGINE
(Superseded to 08564700)

$

$

Not available

19

Gravely 046411

PILOT,GEAR
(Superseded to 08564800)

$70.99

$

Usually ships in 4-12 days

0

20

Gravely 047144

O-RING 1.850X2.270X.210
(Superseded to 05617900)

$

$

Not available

21

Gravely 046436

SPACER 1.007 X 1.312 X 1.60 ST
(Superseded to 08567400)

$

$

Not available

22

Gravely 453440

SCR-MCH .38-24X1.00
(Superseded to 06114100)

$

$

Not available

23

Gravely 046989

ADPT,B&S ENGINE
(Superseded to 08565700)

$

$

Not available

24

Gravely 421648

SCR-SKH .44-14X1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

26

Gravely 131100

WSHR-LK .438X.133 HVY YWZC
(Superseded to 06310700)

$3.49

$

In Stock, only 1 left!

0

27

Gravely 180149

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

28

Gravely 120395

WSHR-FL-STL .469X.938X.065
(Superseded to 06429400)

$

$

Not available

29

Gravely 010635

GSKT,CHASSIS TO ADAPTER
(Superseded to 08602800)

$16.99

$

In Stock, only 2 left!

0

30

Gravely 049327

BRKT,EXHAUST
(Superseded to 08569900)

$

$

Not available

31

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

32

Gravely 049191

ELBOW
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

CLAMP-MUFFLER 1.25
(Superseded to 06920900)

$7.49

$

In Stock, Qty 11

0

34

Gravely 805250

Gasket, Oil Filter Adapter

$

$

Not available

35

Gravely 08518300

OIL FILTER MANIFOLD

$113.99

$

Usually ships in 4-12 days

0

36

Gravely 07027200

PLUG-PIPE 1/16-27

$

$

Not available

37

Gravely 491056

Filter, Oil

$10.99

$

In Stock, Qty 20+

0

38

Gravely 044399

MUFFLER
(Superseded to 08555600)

$

$

Not available

39

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

40

Gravely 01915400

REMOTE OIL FILTER BRKT. 491656

$

$

Not available

41

Gravely 050063

FTG-STR 6FTX-S
(Superseded to 07022900)

$

$

Not available

42

Gravely 050064

FTG-STR 6-2FTX-S
(Superseded to 07023000)

$

$

Not available

43

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

45

Gravely 049356

ASM,HOSE
(Superseded to 08570000)

$

$

Not available

46

Gravely 049227

ADPTR-PIPE .56-18
(Superseded to 07022500)

$

$

Not available

47

Gravely 444855

PLUG,PIP.12-27 HEXSCKT UNFINST
(Superseded to 07025600)

$

$

Not available

48

Gravely P805353

Adapter, Oil Filter

$

$

Not available

49

Gravely 049228

ADPTR-PIPE .90X1.06
(Superseded to 07022400)

$

$

Not available
