985110 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) FRAME - PROFESSIONAL 8 Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

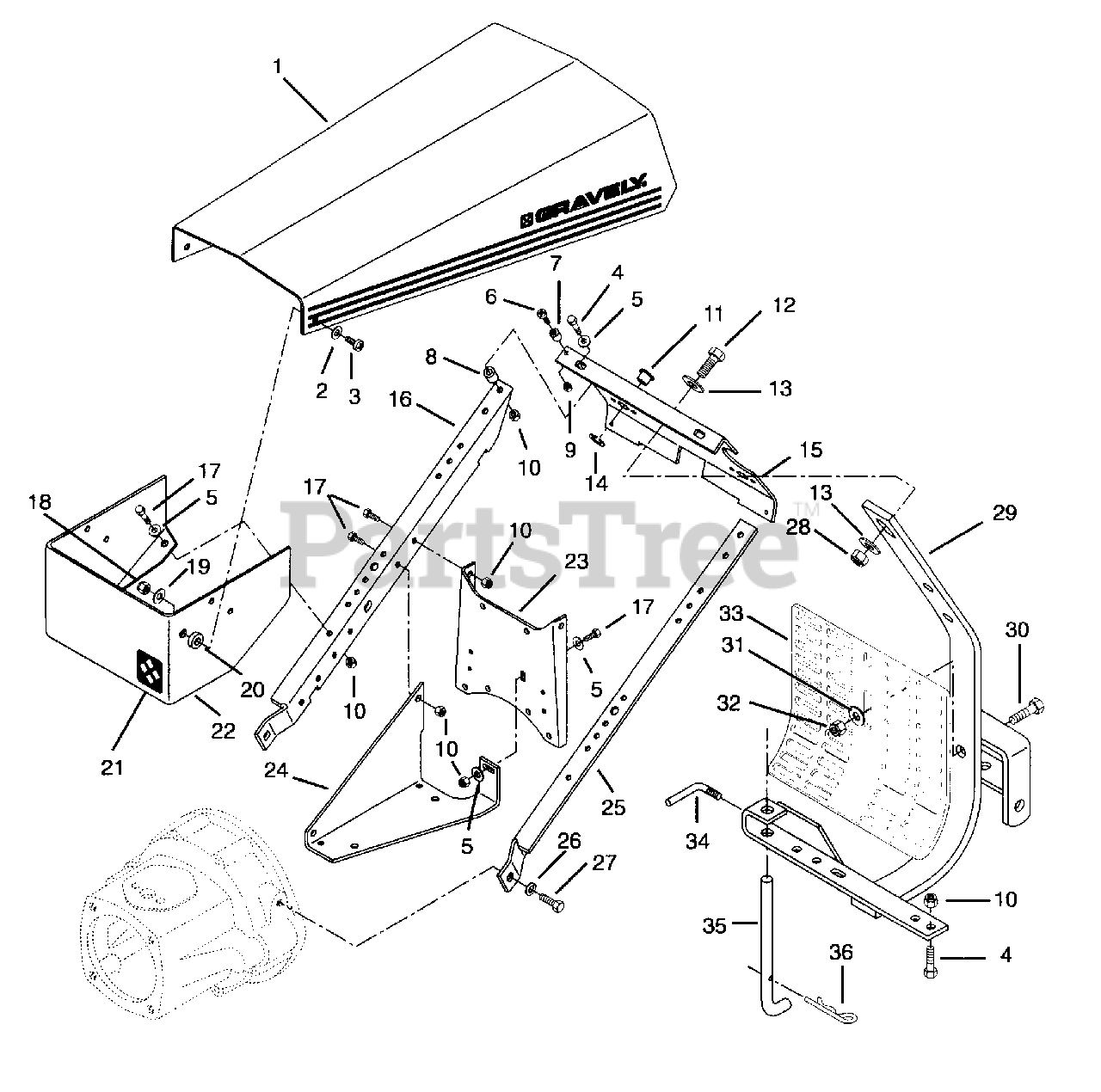

FRAME - PROFESSIONAL 8 Parts Diagram

  • Title

1

Gravely 68512900

Hood with Decal

$205.99

$

Usually ships in 4-12 days

0

1

Gravely 040871

Hood 8HP

$

$

Not available

2

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

3

Gravely 06118100

Screw-Machine .250-20 x 1

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (110)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (111)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06117900

Screw-Machine 6-32 x .75

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 618183

Bumper

$

$

Not available

8

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, Qty 16

0

9

Gravely 06538900

Nut-Locking-Nylon 6-32

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

Note: (110)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

Note: (111)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

12

Gravely 05968100

Bolt-Hex .625-11 x 2.00

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 034737

Ring-Retaining 1.000 x .748
(Superseded to 05715100)

$

$

Not available

15

Gravely 041767

Plate, Silk Screen, Man
(Superseded to 58500700)

Note: (110)

$

$

Not available

15

Gravely 040872

Plate, Silk Screen
(Superseded to 58500600)

Note: (111)

$

$

Not available

16

Gravely 040618

Support, Handle Bar Right Hand
(Superseded to 08543100)

$

$

Not available

17

Gravely 05959400

Bolt-Hex .380-16 x .75
(Superseded to 05901702)

Note: (110)

$1.49

$

In Stock, only 1 left!

0

17

Gravely 05959400

Bolt-Hex .380-16 x .75
(Superseded to 05901702)

Note: (111)

$1.49

$

In Stock, only 1 left!

0

18

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 15

0

20

Gravely 041622

Bushing, Flange 280 x .750 x .318
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 010697

Decal, Comm. Front
(Superseded to 05216500)

$

$

Not available

22

Gravely 040847

Support Hood
(Superseded to 08545100)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 040629

Bracket
(Superseded to 08543300)

$

$

Not available

24

Gravely 040846

Tray, Battery
(Superseded to 08545000)

$

$

Not available

25

Gravely 040619

Support, Handle Bar Left Hand
(Superseded to 08543200)

$

$

Not available

26

Gravely 06307300

Washer-Lock .50 x .125 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

27

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 06535300

Nut-Locking-Center .625-11 Grade 2

$2.99

$

In Stock, only 1 left!

0

29

Gravely 040821

Weldment, Hitch 8 HP
(Superseded to 08544400)

$

$

Not available

30

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 06442000

Washer-Flat-Steel .536 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 17

0

32

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

33

Gravely 047190

Guard, Engine
(Superseded to 08566900)

$

$

Not available

34

Gravely 013457

Handle, Adjusting
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

35

Gravely 034062

Stand, Kick
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

36

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 9

0

Gravely 043417

Decal, 6 Lead
(Superseded to 05211200)

Note: NS

$

$

Not available

Gravely 043418

Decal, 8 Lead
(Superseded to 05211300)

Note: NS

$

$

Not available
