985110 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) FRAME - PROFESSIONAL 8 Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

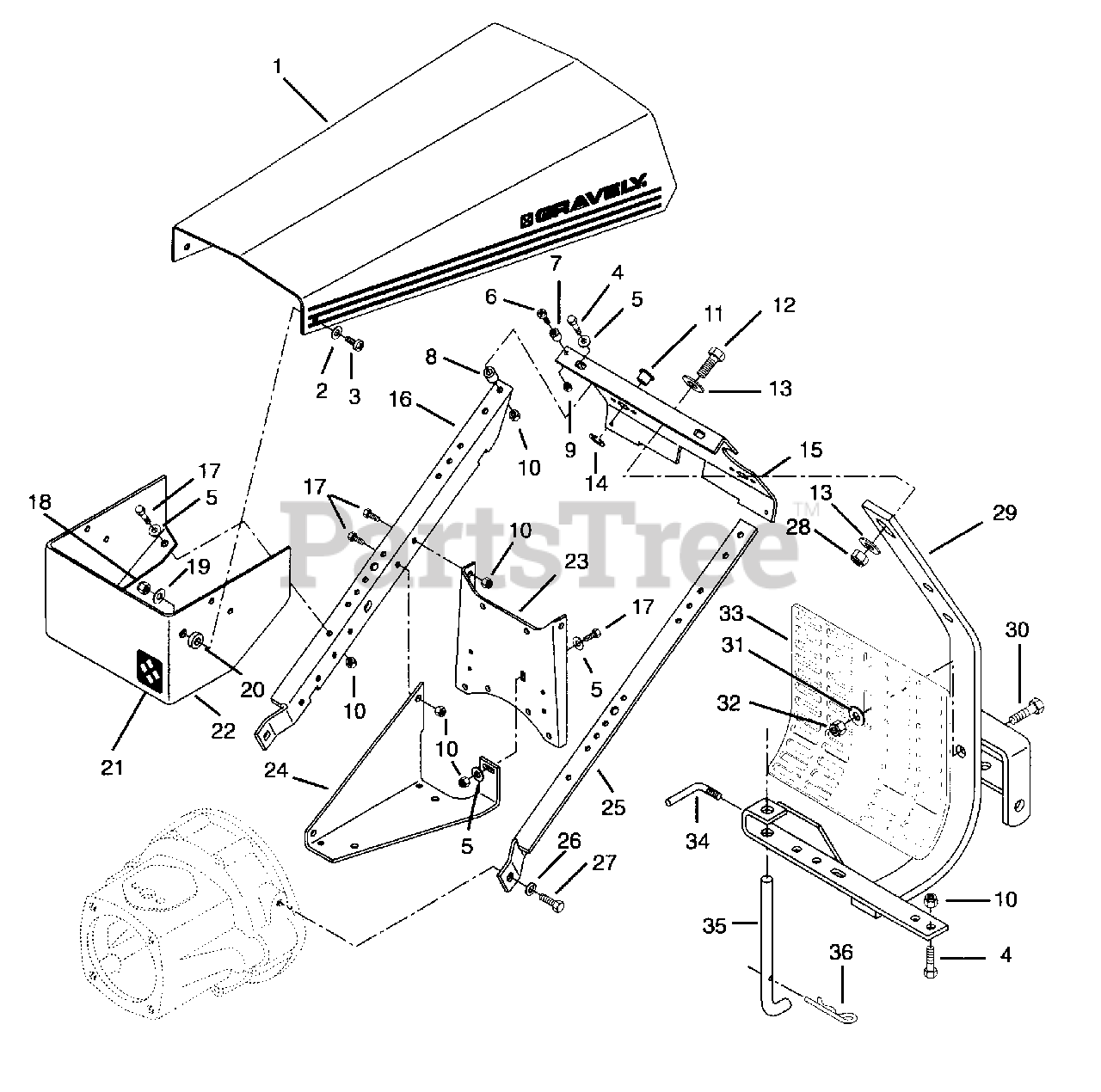

FRAME - PROFESSIONAL 8 Parts Diagram

  • Title

1

Gravely 68512900

HOOD & DECAL (2-WHEEL)

$205.99

$

Usually ships in 4-12 days

0

Gravely 040871

HOOD,8 HP

$

$

Not available

2

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06118100

SCR-MCH .25-20X1.00HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (110)

$1.49

$

In Stock, Qty 20+

0

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (111)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06117900

SCR-MCH 6-32X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 618183

Bumper

$

$

Not available

8

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

9

Gravely 06538900

NUT-LK-NYL 6-32 W/INSRT YWZC

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

Note: (110)

$1.49

$

In Stock, Qty 20+

0

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

Note: (111)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05968100

BLT-HEX .62-11X2.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 034737

RG-RTNG 1.000X.748
(Superseded to 05715100)

$

$

Not available

15

Gravely 041767

INST PANEL W/ DECAL
(Superseded to 58500700)

Note: (110)

$

$

Not available

Gravely 040872

INST PANEL W/ DECAL
(Superseded to 58500600)

Note: (111)

$

$

Not available

16

Gravely 040618

SPRT,HANDLE BAR R.H.
(Superseded to 08543100)

$

$

Not available

17

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (110)

$1.99

$

In Stock, Qty 14

0

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (111)

$1.99

$

In Stock, Qty 14

0

18

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 041622

BUSH.,F.280X.750X.318 NY
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 010697

DECAL,COMM. FRONT
(Superseded to 05216500)

$

$

Not available

22

Gravely 040847

SP7T,HOOD
(Superseded to 08545100)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 040629

BRKT
(Superseded to 08543300)

$

$

Not available

24

Gravely 040846

TRAY,BATTERY
(Superseded to 08545000)

$

$

Not available

25

Gravely 040619

SPRT,HANDLE BAR L.H.
(Superseded to 08543200)

$

$

Not available

26

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

29

Gravely 040821

WLDMT,HITCH 8 HP
(Superseded to 08544400)

$

$

Not available

30

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

31

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

32

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

33

Gravely 047190

GRD,ENGINE
(Superseded to 08566900)

$

$

Not available

34

Gravely 013457

HNDL,ADJUSTING
(Superseded to 08597900)

$53.99

$

Usually ships in 4-12 days

0

35

Gravely 034062

STAND,KICK
(Superseded to 08536500)

$

$

Not available

36

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0

Gravely 043417

DECAL,6 LEAD
(Superseded to 05211200)

Note: NS

$

$

Not available

Gravely 043418

DECAL,8 LEAD
(Superseded to 05211300)

Note: NS

$

$

Not available
