985110 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - 8 & 12HP Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

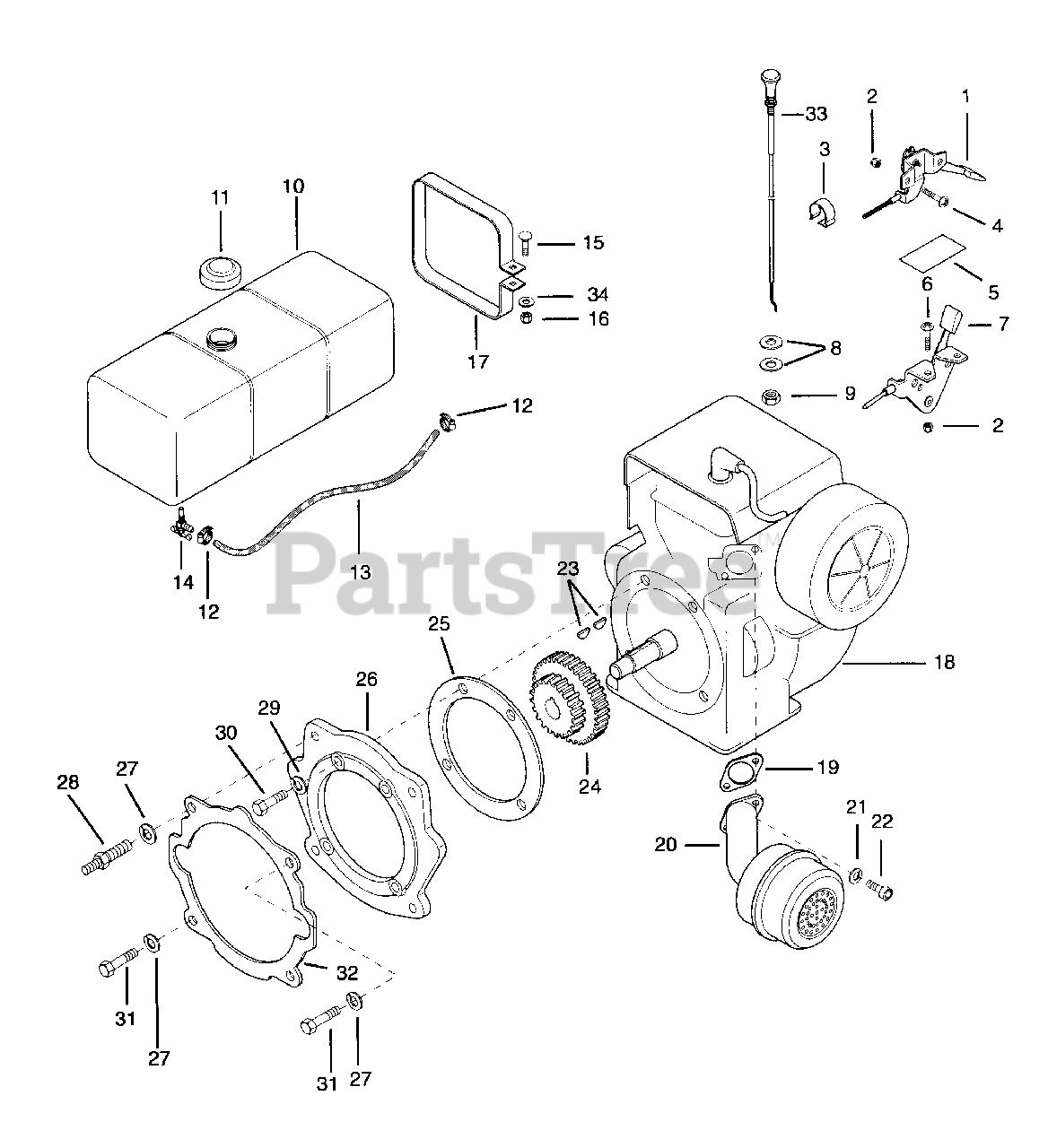

FUEL AND EXHAUST SYSTEM - 8 & 12HP Parts Diagram

  • Title

1

Gravely 043429

Lever, Control Plated
(Superseded to 06926900)

Note: (111)

$

$

Not available

1

Gravely 021103

Lever, Throttle Control Plated
(Superseded to 06921900)

Note: (110)

$75.99

$

Usually ships in 4-12 days

0

2

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

Note: (110,111)

$0.99

$

In Stock, only 4 left!

0

2

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

Note: (112,113)

$0.99

$

In Stock, only 4 left!

0

3

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

4

Gravely 06118200

Screw-Machine 10-24 x 1.50

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 021092

Decal, Throttle
(Superseded to 05201200)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 044798

Lever, Throttle Control Plated
(Superseded to 06927600)

Note: (112,113)

$52.99

$

In Stock, only 2 left!

0

7

Gravely 043429

Lever, Control Plated
(Superseded to 06926900)

$

$

Not available

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (112,113)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

Note: (112,113)

$2.49

$

In Stock, Qty 5

0

10

Gravely 010636

Assembly, Fuel Tank
(Superseded to 08575100)

Note: (112,113)

$387.99

$

Usually ships in 4-12 days

0

11

Gravely 010756

Cap, Gas Tank
(Superseded to 08582100)

Note: (112,113)

$40.99

$

In Stock, only 1 left!

0

12

Gravely 032045

Hose Clamp
(Superseded to 06924300)

Note: (112,113)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

Note: (112,113)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 007354

Valve & Strainer
(Superseded to 08860200)

Note: (112,113)

$17.99

$

In Stock, only 3 left!

0

15

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

Note: (112,113)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

Note: (112,113)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 010640

Strap, Fuel Tank
(Superseded to 08581800)

Note: (112,113)

$46.99

$

Usually ships in 4-12 days

0

18

Gravely 041645

Engine, 12 HP Electric Magnum

Note: (112,113)

$

$

Not available

18

Gravely 041643

Engine, 8 HP Electric

Note: (111)

$

$

Not available

18

Gravely 041644

Engine, 8 HP Recoil

Note: (110)

$

$

Not available

19

Gravely 044390

Gasket, Exhaust
(Superseded to 08824700)

Note: (112,113)

$10.99

$

In Stock, only 2 left!

0

20

Gravely 040868

Muffler, 12 HP
(Superseded to 08545400)

Note: (112,113)

$287.99

$

Usually ships in 4-12 days

0

21

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

Note: (112,113)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05947000

Screw-Cap .31-18 x .75
(Superseded to 05901704)

Note: (112,113)

$1.49

$

In Stock, Qty 16

0

23

Gravely 124546

Key-Woodruff .16 x .63
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 017838

Gear, 10/12 DP 21/30 Teeth
(Superseded to 08505300)

$

$

Not available

25

Gravely 010732

Gasket, Engine to Adaptor
(Superseded to 08602700)

Note: (112,113)

$10.99

$

Usually ships in 4-12 days

0

25

Gravely 015718

Gasket, Engine to Adapter
(Superseded to 08500400)

Note: (110,111)

$9.99

$

Usually ships in 4-12 days

0

26

Gravely 010731

Adapter, Engine
(Superseded to 09022100)

Note: (112,113)

$

$

Not available

26

Gravely 014938

Adapter, Engine
(Superseded to 08503200)

Note: (110,111)

$

$

Not available

27

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

29

Gravely 06306500

Washer-Lock .375 x .115
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

30

Gravely 05948700

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

In Stock, only 1 left!

0

32

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

33

Gravely 044797

Lever, Choke Control Plated
(Superseded to 06927500)

Note: (112,113)

$

$

Not available

34

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0
