985113 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric Start (SN: 000101 & Above) ELECTRICAL SYSTEM - ELECTRICAL START Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Electric Start

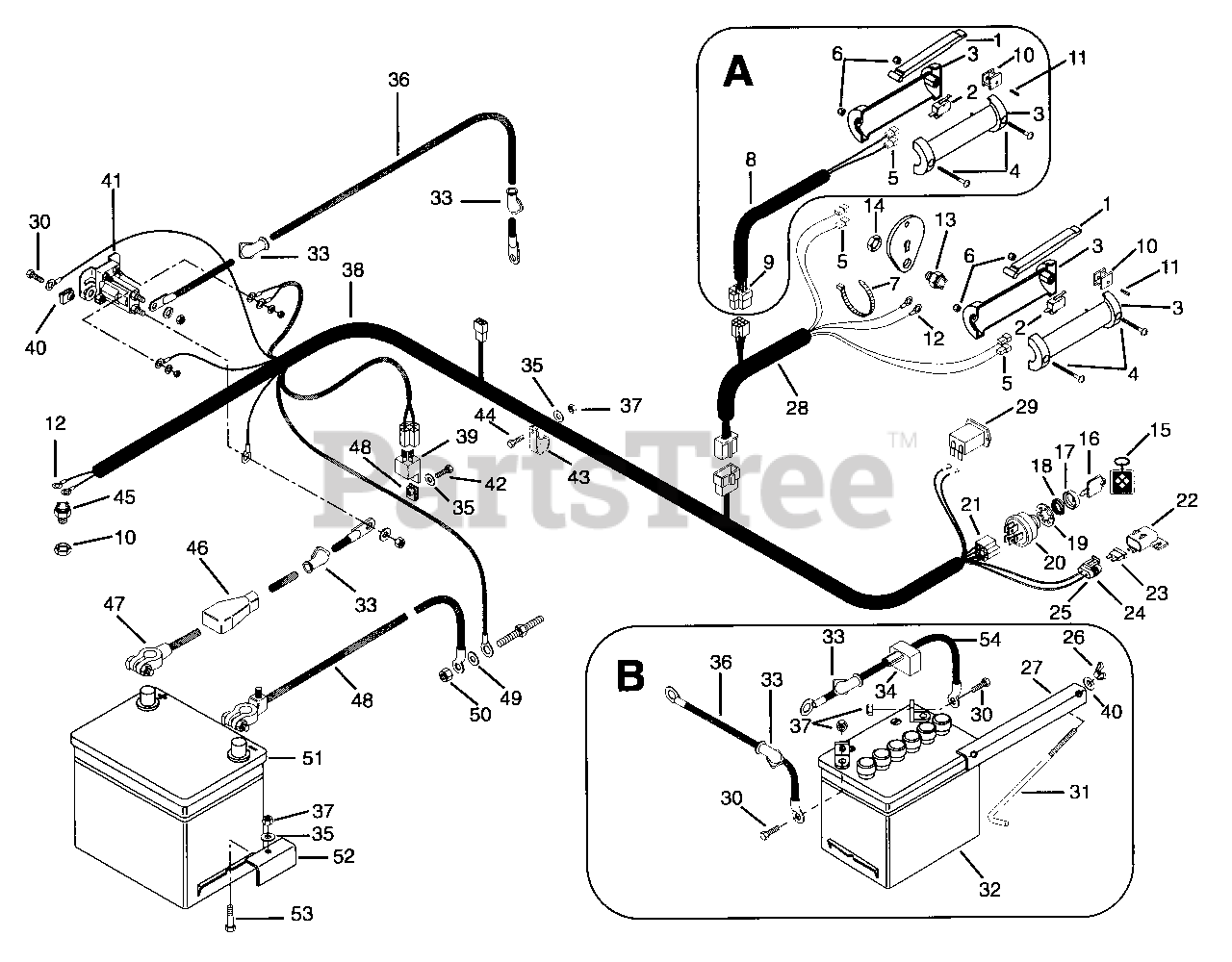

ELECTRICAL SYSTEM - ELECTRICAL START Parts Diagram

  • Title

1

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

3

Gravely 08870200

Handle, Left Hand & Right Hand

$35.99

$

In Stock, only 2 left!

0

4

Gravely 06118200

Screw-Machine 10-24 x 1.50

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

6

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 047307

Harness, Steering Brake
(Superseded to 08567100)

$

$

Not available

9

Gravely 038057

Connector
(Superseded to 20645000)

$

$

Not available

10

Gravely 08855100

Holder, Switch

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 05808100

Pin-Roll .094 x .750

$0.99

$

In Stock, only 4 left!

0

12

Gravely 051920

Terminal, Eyelet
(Superseded to 08572000)

$

$

Not available

13

Gravely 051919

Switch, Interlock Closed
(Superseded to 08571900)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

16

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 18

0

17

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

18

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$13.99

$

In Stock, only 1 left!

0

19

Gravely 006306900

Washer-Lock Internal .563 x .040

$

$

Not available

20

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

21

Gravely 038058

Connector
(Superseded to 20645101)

$5.99

$

In Stock, Qty 9

0

22

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

23

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

24

Gravely 045923

Terminal For 10-12 Gauge Wire
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

26

Gravely 06537500

Nut-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

27

Gravely 015258

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, Qty 5

0

28

Gravely 047306

Harness, Wiring Handlebar
(Superseded to 08567001)

$77.99

$

Usually ships in 4-12 days

0

29

Gravely 038256

Hour meter
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

30

Gravely 05944200

Bolt-Hex .25-20 x .63

$3.49

$

Usually ships in 4-12 days

0

31

Gravely 015257

Tie Down
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

32

Gravely 78509300

12 Volt Battery

Note: (111)

$

$

Not available

33

Gravely 03384700

Boot, Insulator

Note: (112,113,114)

$

$

Not available

34

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

35

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

36

Gravely 041815

Cable, Battery to Solonoid 8 HP
(Superseded to 08547300)

Note: (111)

$

$

Not available

36

Gravely 041814

Cable, Ground
(Superseded to 03492400)

Note: (111)

$

$

Not available

37

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 051898

Harness, 10, 12 & 16-HP Electric
(Superseded to 08571100)

Note: (112,113)

$

$

Not available

38

Gravely 051897

Harness, 8-HP Electric
(Superseded to 08571000)

Note: (111)

$

$

Not available

38

Gravely 051899

Harness, 16-HP Electric
(Superseded to 08571201)

Note: (114)

$136.99

$

Usually ships in 4-12 days

0

39

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 19

0

40

Gravely 011676

Nut-Speed .25-02
(Superseded to 07016800)

$

$

Not available

41

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 6

0

42

Gravely 05944200

Bolt-Hex .25-20 x .63

$3.49

$

Usually ships in 4-12 days

0

43

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

45

Gravely 051918

Switch, Interlock Open
(Superseded to 08571800)

$62.99

$

In Stock, only 3 left!

0

46

Gravely 034466

Cover, Battery Terminal
(Superseded to 07523100)

$

$

Not available

47

Gravely 021368

Cable, Positive Battery
(Superseded to 08516500)

Note: (112,113)

$15.99

$

Usually ships in 4-12 days

0

47

Gravely 011033

Cable, Battery-To-Magneto
(Superseded to 08582200)

Note: (114)

$

$

Not available

48

Gravely 040410

Cable, Negative Battery
(Superseded to 08542000)

Note: (112,113,114)

$34.99

$

Usually ships in 4-12 days

0

49

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 042597

Battery, 12 Volt

Note: (112,113,114)

$

$

Not available

52

Gravely 037742

Clamp
(Superseded to 08539500)

Note: (111)

$22.99

$

In Stock, only 1 left!

0

53

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

54

Gravely 041815

Cable, Battery to Solonoid
(Superseded to 08547300)

Note: (111)

$

$

Not available

Gravely 044321

Tie Wrap Black
(Superseded to 02589600)

Note: NS

$

$

Not available
