985113 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric Start (SN: 000101 & Above) OPTIONAL WHEELS KITS Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Electric Start

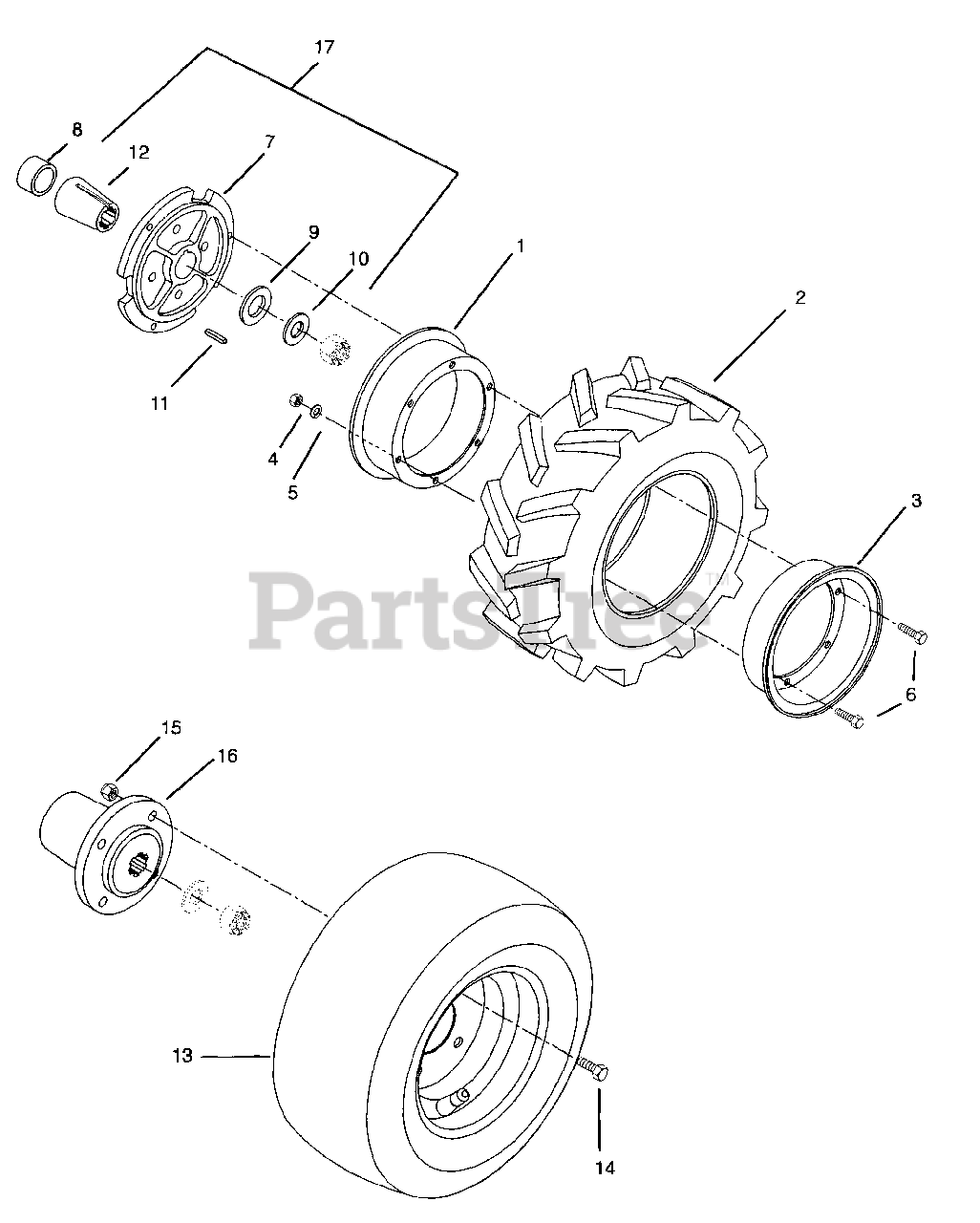

OPTIONAL WHEELS KITS Parts Diagram

  • Title

1

Gravely 012674

WHL 7.71 X 1.25
(Superseded to 07133000)

$52.99

$

In Stock, only 2 left!

0

2

Gravely 018762

TIRE 16X5WX3
(Superseded to 07127100)

$280.99

$

Usually ships in 4-12 days

0

3

Gravely 012673

WHL-DISC 6.75X9.129
(Superseded to 07132900)

$70.99

$

In Stock, only 2 left!

0

4

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

7

Gravely 08742753

HUB, WHEEL

$263.99

$

Usually ships in 4-12 days

0

8

Gravely 022512

BUSH.,S1.02X1.37X1.13 ST
(Superseded to 08525200)

$27.99

$

Usually ships in 4-12 days

0

9

Gravely 038229

WSHR-FL-STL 2.0X1.12X.148 HDND
(Superseded to 06427900)

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

11

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

12

Gravely 038230

INSERT, HUB
(Superseded to 08742600)

$191.99

$

Usually ships in 4-12 days

0

13

Gravely 046987

T/WHL ASSY 8.50-8 X 18
(Superseded to 07130200)

$188.99

$

Usually ships in 4-12 days

0

Gravely 07137700

T/WHL ASSY 4.80/4.00-8 STUD

$

$

Not available

Gravely 07137800

T/WHL 4.80/4.00-8 TRAC R.H.

$

$

Not available

Gravely 07138700

T/WHL 4.80/4.00-8 TRAC L.H.

$

$

Not available

14

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

15

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

16

Gravely 022551

HUB,7" WHEEL
(Superseded to 08526400)

$398.99

$

Usually ships in 4-12 days

0

17

Gravely 78704300

KIT, HVY-DUTY WHL HUB

Note: (Contains Items 7,9-12)

$

$

Not available
