985114 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) Fuel And Exhaust System - 16HP Briggs And Stratton Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

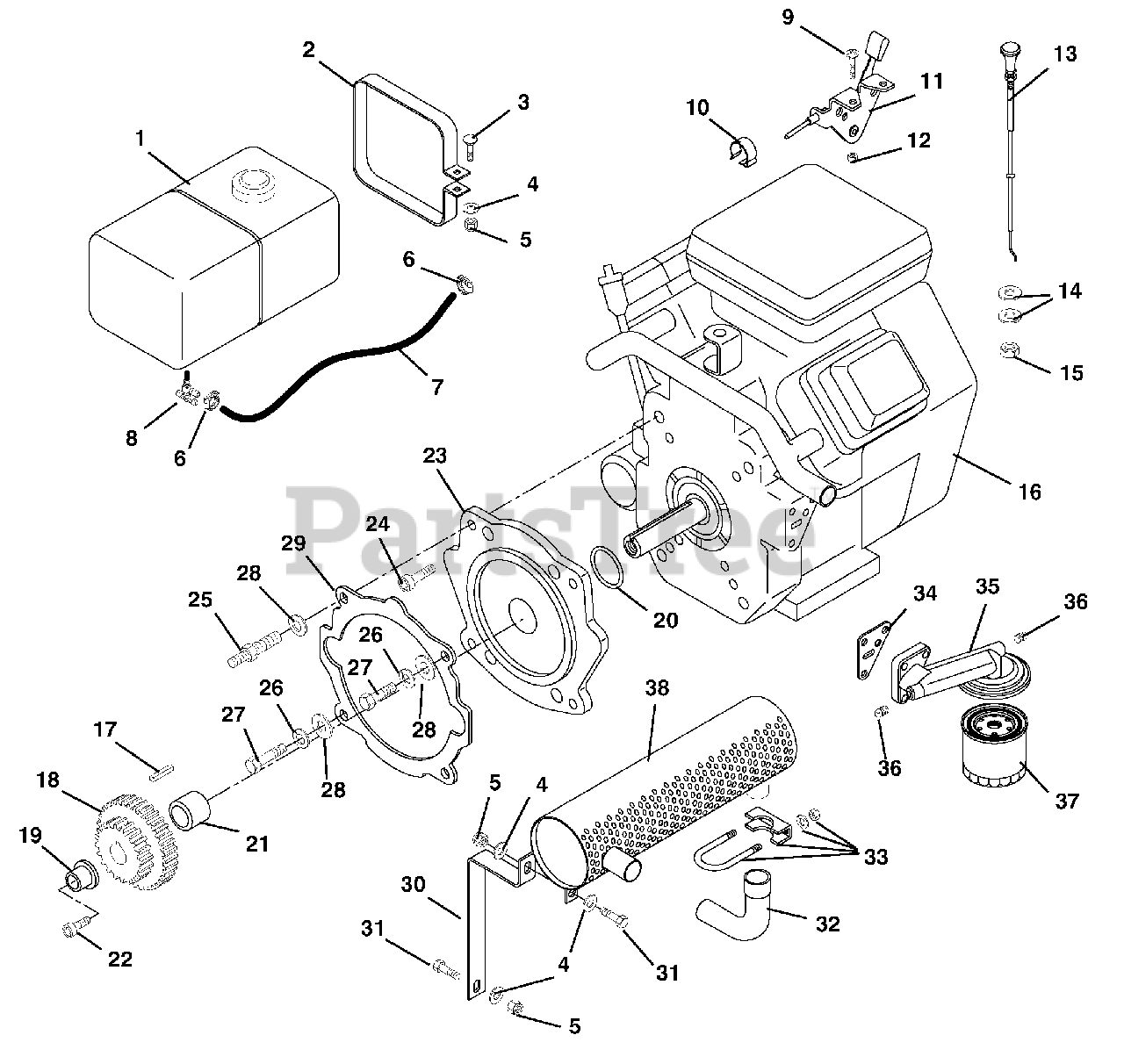

Fuel And Exhaust System - 16HP Briggs And Stratton Parts Diagram

  • Title

1

Gravely 08575100

Tank-Fuel, w/Cap-Black, 2-Wheel

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010640

Strap-Fuel Tank
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

5

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 007354

Valve and Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

11

Gravely 050132

Control-Choke Plated
(Superseded to 06929300)

$

$

Not available

12

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

13

Gravely 050133

Lever-Choke Control
(Superseded to 06929400)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

16

Gravely 08251900

Engine-16 HP B & S

$

$

Not available

17

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, Qty 11

0

18

Gravely 046410

Gear
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

19

Gravely 046411

Pilot-Gear
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

20

Gravely 047144

O-Ring 1.850 x 2.270 x .210
(Superseded to 05617900)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 046436

Spacer 1.05 x 1.31 x 1.54
(Superseded to 08567400)

$28.99

$

Usually ships in 4-12 days

0

22

Gravely 453440

Screw-Machine .38-24 x 1.00
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 046989

Adapter
(Superseded to 08565700)

$

$

Not available

24

Gravely 421648

Screw-Socket Head .44-14 x 1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

26

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05962800

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

28

Gravely 120395

Washer-Flat-Steel .459 x .938 x .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 010635

Gasket-Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

30

Gravely 049327

Bracket-Exhaust
(Superseded to 08569900)

$

$

Not available

31

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

32

Gravely 049191

Elbow
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 051418

Gasket-Oil Filter Adapter

Note: Items 34 and 37 are Briggs & Stratton parts numbers. Service parts can be purchased from your local Briggs & Stratton Distributor.

$

$

Not available

35

Gravely 08518300

Oil Filter Manifold

$113.99

$

Usually ships in 4-12 days

0

36

Gravely 07027200

Plug-Pipe 1/16-27

$

$

Not available

37

Gravely 051422

Filter-Oil
(Superseded to 08597500)

Note: Items 34 and 37 are Briggs & Stratton parts numbers. Service parts can be purchased from your local Briggs & Stratton Distributor.

$12.99

$

In Stock, only 1 left!

0

38

Gravely 044399

Muffler-16 HP
(Superseded to 08555600)

$

$

Not available
