985114 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) Wiring Diagram Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

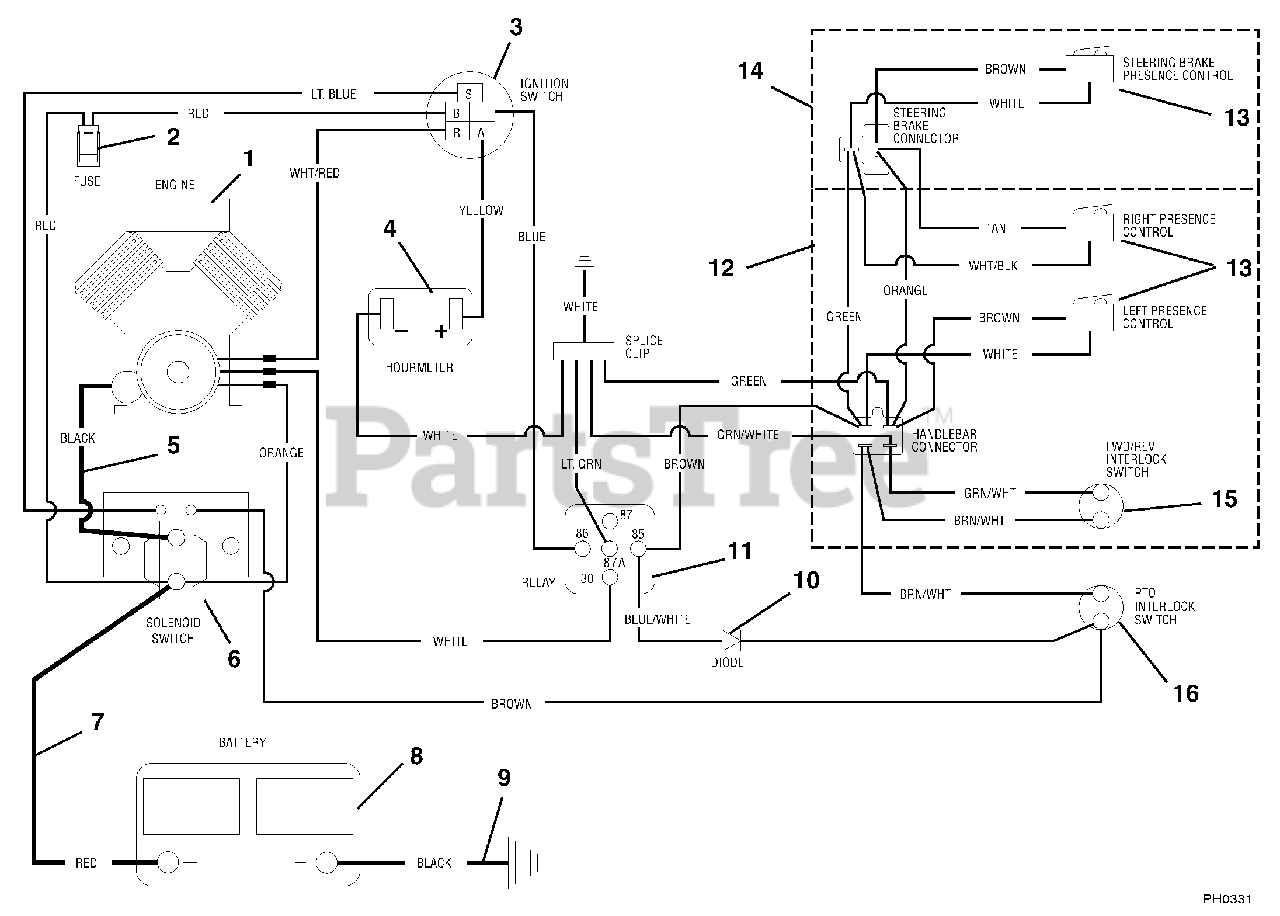

Wiring Diagram Parts Diagram

  • Title

1

Gravely 08251900

Engine, Briggs and Stratton 16HP V Twin H/S

$

$

Not available

2

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

3

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

4

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

5

Gravely 041815

Cable
(Superseded to 08547300)

$

$

Not available

6

Gravely 044766

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 6

0

7

Gravely 02743300

Cable, Battery-To-Solenoid
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

8

Gravely 01554800

Battery

$

$

Not available

9

Gravely 09222700

Cable, Negative Battery 35"
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 03081700

Molded Diode Plug- Clear 1 AMP

$26.99

$

In Stock, only 1 left!

0

11

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

12

Gravely 047306

Harness, Wiring Handlebar
(Superseded to 08567001)

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

14

Gravely 08594200

Harness, Steering Brake

$

$

Not available

15

Gravely 051919

Switch,Interlock Closed (Forward/Reverse)
(Superseded to 08571900)

Note: (Forward/Reverse)

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 051918

Switch,Interlock Open (PTO)
(Superseded to 08571800)

Note: (PTO)

$62.99

$

In Stock, only 3 left!

0
