985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Electrical System - Electric Start Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

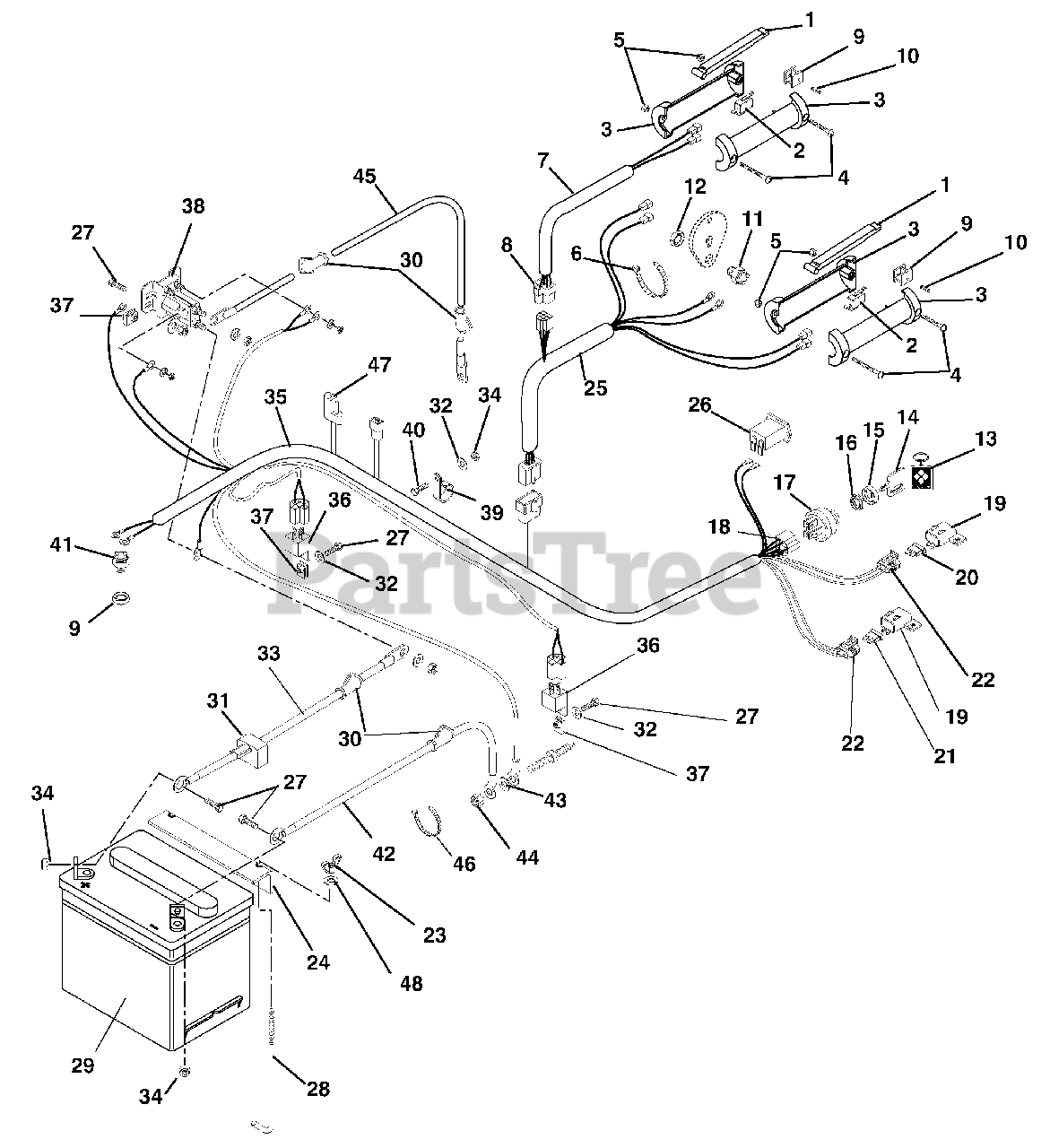

Electrical System - Electric Start Parts Diagram

  • Title

1

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

3

Gravely 08870200

HANDLE, L.H. & R.H.

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 06118300

SCR-MCH 10-24X1.50 PH YWZC

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 08594200

HARNESS, STEERING BRAKE

Note: (114,117, 119, 309)

$

$

Not available

8

Gravely 038057

CONNECTOR
(Superseded to 20645000)

$

$

Not available

9

Gravely 08855100

HOLDER, SWITCH

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 05808100

PIN-ROLL .094X.750

$0.99

$

In Stock, Qty 5

0

11

Gravely 051919

SWITCH,INTERLOCK CLOSED
(Superseded to 08571900)

Note: (Forward/Reverse)

$

$

Not available

12

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

14

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

15

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

16

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

17

Gravely 03602300

KEY SWITCH

Note: (115, 117, 119, 307, 309, 311-313)

$26.99

$

In Stock, Qty 15

0

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

Note: (114)

$70.99

$

In Stock, Qty 9

0

18

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

19

Gravely 045921

COVER
(Superseded to 20822800)

Note: (114, 115, 117, 307, 309, 311-313)

$

$

Not available

Gravely 045921

COVER
(Superseded to 20822800)

Note: (119)

$

$

Not available

20

Gravely 00524600

FUSE, 30 AMP.

Note: (115,117, 307, 309, 311, 312)

$5.99

$

Usually ships in 4-12 days

0

Gravely 00580600

FUSE 20AMP

Note: (119)

$6.99

$

In Stock, Qty 10

0

Gravely 045037

FUSE,25 AMP
(Superseded to 08961800)

Note: (114)

$3.99

$

In Stock, Qty 12

0

21

Gravely 00524700

FUSE, 15 AMP.

Note: (119)

$

$

Not available

22

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

Note: (114, 115, 117, 307, 309, 311-313)

$

$

Not available

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

Note: (119)

$

$

Not available

23

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

24

Gravely 015258

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 4 left!

0

25

Gravely 047306

HRNS,WIRING HANDLEBAR
(Superseded to 08567001)

Note: (114)

$

$

Not available

Gravely 08591000

HARNESS, HANDLEBAR

Note: (115,117,119, 307, 309, 311, 312)

$

$

Not available

26

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

27

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (114, 115, 117, 307, 309, 311-313)

$2.49

$

In Stock, Qty 11

0

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (119)

$2.49

$

In Stock, Qty 11

0

28

Gravely 015257

TIE DOWN
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

29

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

30

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

31

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

32

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

Note: (115, 117, 119, 307, 309, 311, 312)

$23.99

$

In Stock, only 2 left!

0

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

Note: (114)

$21.99

$

In Stock, only 2 left!

0

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 051899

HRNS,16-HP ELECT B&S
(Superseded to 08571201)

Note: (114)

$181.99

$

In Stock, only 1 left!

0

Gravely 08590900

HARNESS, WIRING

Note: (115, 117, 307, 309, 311, 312)

$

$

Not available

Gravely 08598400

HARNESS - WIRE 12 HP KOHLER

Note: (119)

$

$

Not available

36

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (115, 117, 307, 309, 311, 312)

$25.99

$

In Stock, Qty 20+

0

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (119)

$25.99

$

In Stock, Qty 20+

0

37

Gravely 07027700

NUT-RTNR 10-24

$

$

Not available

38

Gravely 044766

SOLENOID
(Superseded to 03551000)

$43.99

$

In Stock, Qty 6

0

39

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

$6.49

$

Usually ships in 4-12 days

0

40

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

41

Gravely 051918

SWITCH,INTERLOCK OPEN
(Superseded to 08571800)

Note: (PTO)

$59.99

$

In Stock, only 3 left!

0

42

Gravely 09222700

CBL, NEGATIVE BATT 35.0"LG
(Superseded to 03288200)

$26.99

$

Usually ships in 4-12 days

0

43

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

Note: (115, 117, 119, 307, 309, 311, 312)

$21.99

$

In Stock, only 2 left!

0

Gravely 041815

CBL,BATT.TO SOLONOID 8HP
(Superseded to 08547300)

Note: (114)

$

$

Not available

46

Gravely 044321

CABLE TIE .187 X 11 50022830
(Superseded to 02589600)

$

$

Not available

47

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

48

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
