985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Fuel And Exhaust System - 13.5 HP Robin / 12.0 HP Kohler Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

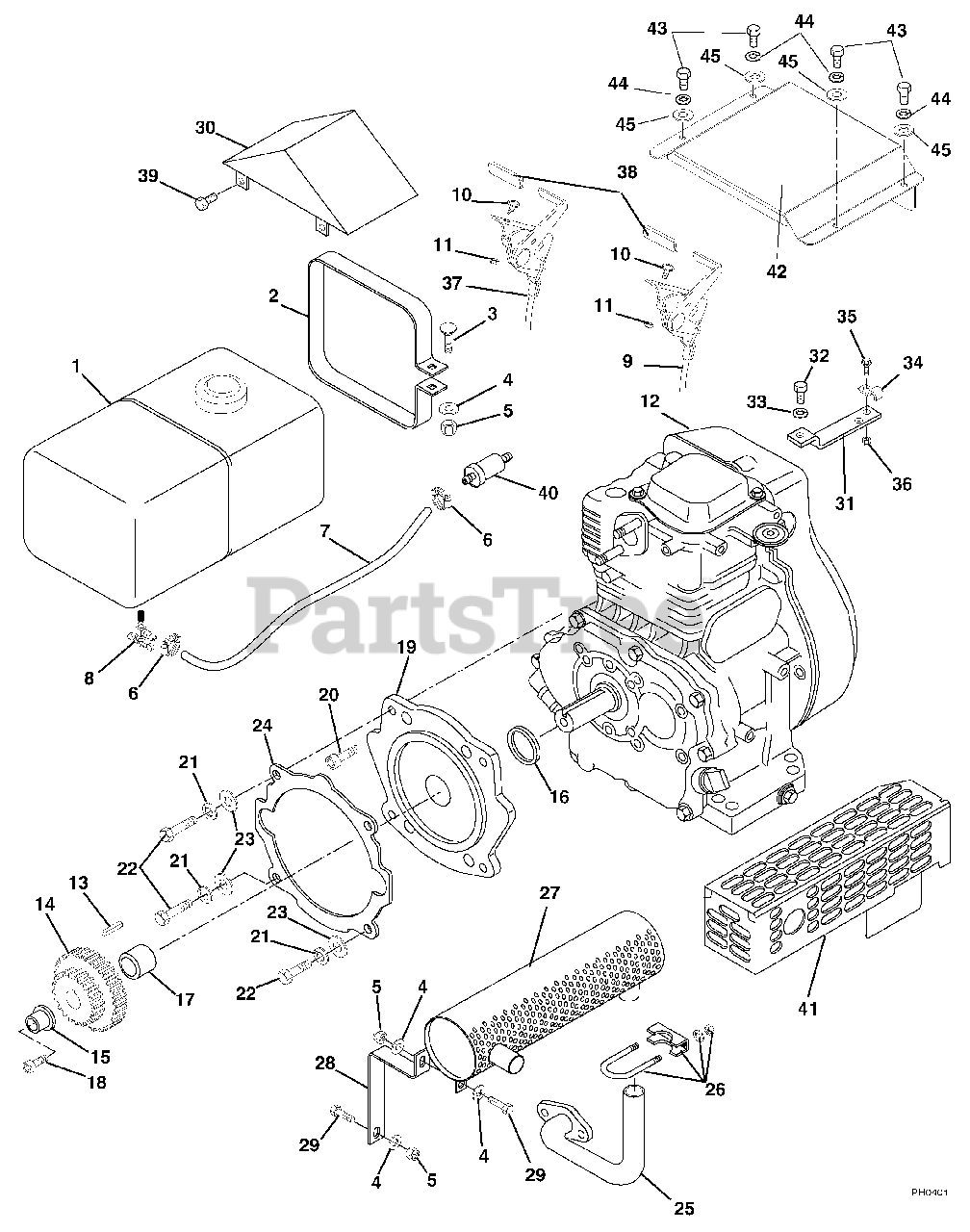

Fuel And Exhaust System - 13.5 HP Robin / 12.0 HP Kohler Parts Diagram

  • Title

1

Gravely 08575100

Tank, Gas with Cap

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010640

Strap-Fuel Tank
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 007354

Valve & Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 06941900

Cable-Control (Throttle) (117, 309, 311, 312)

Note: (Throttle) (117, 309, 311, 312)

$

$

Not available

9

Gravely 06949900

Control, Throttle (119)

Note: (119)

$

$

Not available

10

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 08255800

Engine-13.5HP Robin EH41 (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

12

Gravely 08269400

Engine-12HP Kohler Command Pro CS125T (119)

Note: (119)

$

$

Not available

13

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, Qty 11

0

14

Gravely 046410

Gear
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

15

Gravely 046411

Pilot-Gear
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 022506

Seal 1.188 x 2.000 x .250 (117, 309, 311, 312)
(Superseded to 05616400)

Note: (117, 309, 311, 312)

$21.99

$

In Stock, only 2 left!

0

16

Gravely 05619600

Seal 1.375 x 2.000 x .315 (119)

Note: (119)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 08572900

Spacer-Steel 1.00 x 1.31 x .836

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 453440

Screw-Machine .38-24 x 1.00
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 08571700

Adapter

$

$

Not available

20

Gravely 05930400

Screw-Socket Head .38-16 x 1.00

$

$

Not available

21

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 05962800

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

24

Gravely 010635

Gasket-Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

25

Gravely 08590800

Manifold (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

25

Gravely 08499500

Weldment- Exhaust Pipe (119)

Note: (119)

$144.99

$

In Stock, only 2 left!

0

26

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

27

Gravely 044399

Muffler
(Superseded to 08555600)

$

$

Not available

28

Gravely 049327

Bracket-Exhaust
(Superseded to 08569900)

$

$

Not available

29

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

30

Gravely 08578700

Panel-Linkage Cover (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 08594400

Bracket-Cable Mount (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

32

Gravely 05974900

Bolt-Hex M6 x 1.00 x 20 (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

33

Gravely 06308400

Washer-Locking .25 x .062 Regular (117, 309, 311, 312)
(Superseded to 06401009)

Note: (117, 309, 311, 312)

$0.99

$

In Stock, Qty 16

0

34

Gravely 045242

Clip-Cable (117, 309, 311, 312)
(Superseded to 06928000)

Note: (117, 309, 311, 312)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 06116900

Screw-Machine Hex Washer Head 10-24 x .75 (117, 309, 311, 312)
(Superseded to 05901837)

Note: (117, 309, 311, 312)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 06536000

Nut-Locking-Nylon 10-24 w/ Insert (117, 309, 311, 312)
(Superseded to 06500915)

Note: (117, 309, 311, 312)

$0.99

$

In Stock, only 4 left!

0

37

Gravely 06942000

Cable-Control (Choke) (117, 309, 311, 312)

Note: (Choke) (117, 309, 311, 312)

$

$

Not available

37

Gravely 06950000

Cable, Choke (119)

Note: (119)

$

$

Not available

38

Gravely 07521500

Grip

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 05956300

Bolt-Hex M8 x 1.25x16 (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

40

Gravely 040742

Filter-Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

41

Gravely 08595800

Weldment-Muffler Guard (309, 311, 312)

Note: (309, 311, 312)

$

$

Not available

42

Gravely 084994531

Cover-Fuel Pump (119)

Note: (119)

$

$

Not available

43

Gravely 05969800

Bolt-Hex M6 x 1.0 x 12 (119)

Note: (119)

$1.99

$

In Stock, Qty 5

0

44

Gravely 06308400

Washer-Lock .25 x .062 (119)
(Superseded to 06401009)

Note: (119)

$0.99

$

In Stock, Qty 16

0

45

Gravely 06442300

Washer-Flat-Steel .250 x .562 x .049 (119)

Note: (119)

$1.99

$

In Stock, only 2 left!

0
