985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Locking Differential - 2 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

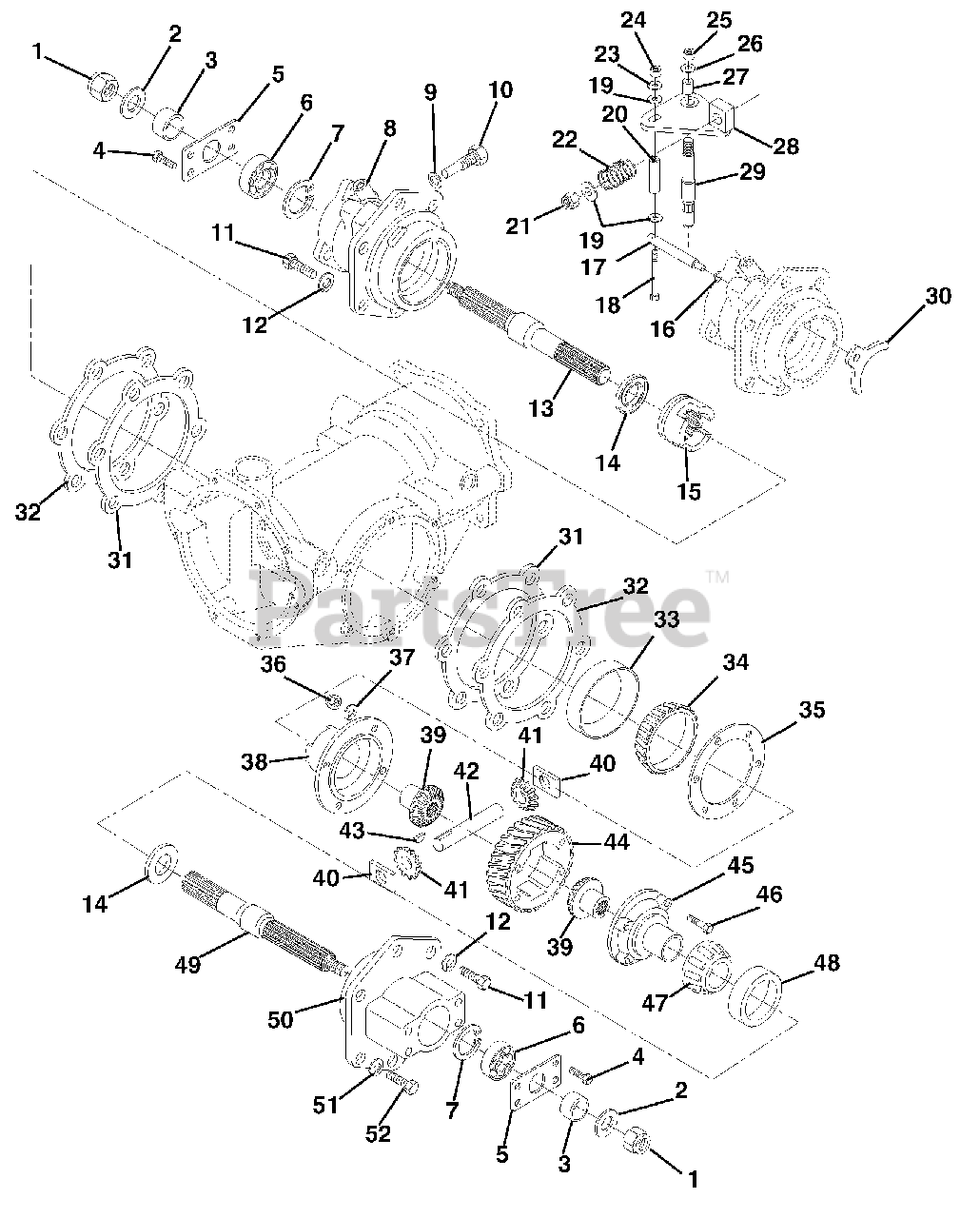

Locking Differential - 2 Speed Parts Diagram

  • Title

1

Gravely 06537900

NUT-LK-JAM-NYL .75-10 YWZC

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 022501

SPACER 1.008X1.377X.509 ST
(Superseded to 08524600)

$

$

Not available

4

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

5

Gravely 022503

PLT,END
(Superseded to 08524800)

$

$

Not available

6

Gravely 032050

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

7

Gravely 022497

RG-RTNG-INT 2.210X.062
(Superseded to 05714200)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 022494

HSG,AXLE, 2 SPEED
(Superseded to 08524100)

$

$

Not available

9

Gravely 012707

WSHR-NUT.63X.875X.062 CPR
(Superseded to 06306300)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 006734

BLT-HEX .62-18X.493X1.25
(Superseded to 07013100)

$

$

Not available

11

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

12

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 041064

AXLE,STRAIGHT DIFF LK
(Superseded to 08546200)

$

$

Not available

14

Gravely 022506

SEAL 1.188X2.000X.250
(Superseded to 05616400)

$22.99

$

In Stock, only 2 left!

0

15

Gravely 041063

CLUTCH,SLIDING DIFF LK
(Superseded to 08546100)

$

$

Not available

16

Gravely 006732

O=RING .437X.625X.093
(Superseded to 05618700)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 006721

PIN,CLUTCH SLIDING
(Superseded to 08577900)

$71.99

$

Usually ships in 4-12 days

0

18

Gravely 05952700

BLT-HEX .25-20X2.25 GR8 YWZC
(Superseded to 05901638)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 024382

BUSH,SLV .277X.375X1.37 ST
(Superseded to 08531000)

$40.99

$

Usually ships in 4-12 days

0

21

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 010682

SG-COMP .067X.72X2.0 WLD22
(Superseded to 08352800)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

25

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

26

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 006724

BSHG-SLV .377X.503X.88
(Superseded to 05518100)

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 006723

WLDMT,ARM SHIFTER
(Superseded to 08578000)

$

$

Not available

29

Gravely 010505

PVT,STATIONARY
(Superseded to 08580800)

$64.99

$

Usually ships in 4-12 days

0

30

Gravely 006719

YOKE, SHIFTING
(Superseded to 08577800)

$36.99

$

Usually ships in 4-12 days

0

31

Gravely 012597

GSKT,AXLE HOUSING
(Superseded to 08556700)

$9.99

$

In Stock, Qty 8

0

32

Gravely 012595

SHIM,AXLE HOUSING .005
(Superseded to 08589700)

$10.99

$

Usually ships in 4-12 days

0

33

Gravely 012500

BRG-RACE 4.34X.741
(Superseded to 05428800)

$

$

Not available

34

Gravely 012501

BRG-CONE 2.69X.87
(Superseded to 05428900)

$

$

Not available

35

Gravely 006739

SHIM,.005 CLUTCH WORM GR
(Superseded to 08583200)

$

$

Not available

36

Gravely 120368

NUT-HEX .312-24 ZC
(Superseded to 06522800)

$2.99

$

Usually ships in 4-12 days

0

37

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

38

Gravely 041065

HSG,DIFF LK
(Superseded to 08546300)

$

$

Not available

39

Gravely 006709

GR,DIFFERENTIAL BEVEL
(Superseded to 08577700)

$

$

Not available

40

Gravely 022505

BLOCK,DRIVE
(Superseded to 08525000)

$

$

Not available

41

Gravely 006708

GR,SPIDER BEVEL
(Superseded to 08577600)

$

$

Not available

42

Gravely 012556

PIN,SPIDER PINION
(Superseded to 08589200)

$

$

Not available

43

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 013497

GR,4-LEAD WORM
(Superseded to 08500200)

$

$

Not available

45

Gravely 022504

HSG,DIFFERENTIAL
(Superseded to 08524900)

$

$

Not available

46

Gravely 181623

BLT-HEX .31-24X2.75 GR5 YWZC
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

47

Gravely 012131

BRG-CONE ROLLER 50MMX21.5MM
(Superseded to 05428300)

$

$

Not available

48

Gravely 012130

BRG-CUP ROLLER 82MMX17MM TMKN
(Superseded to 05428200)

$

$

Not available

49

Gravely 022493

AXLE,STRAIGHT
(Superseded to 08524000)

$

$

Not available

50

Gravely 022495

HSG,AXLE
(Superseded to 08524200)

$

$

Not available

51

Gravely 045280

SEAL-OIL DRAIN .563X1.250X.091
(Superseded to 06432900)

$2.99

$

In Stock, only 1 left!

0

52

Gravely 013624

BLT-HEX .50-13X1.312 GR5
(Superseded to 05941200)

$

$

Not available
