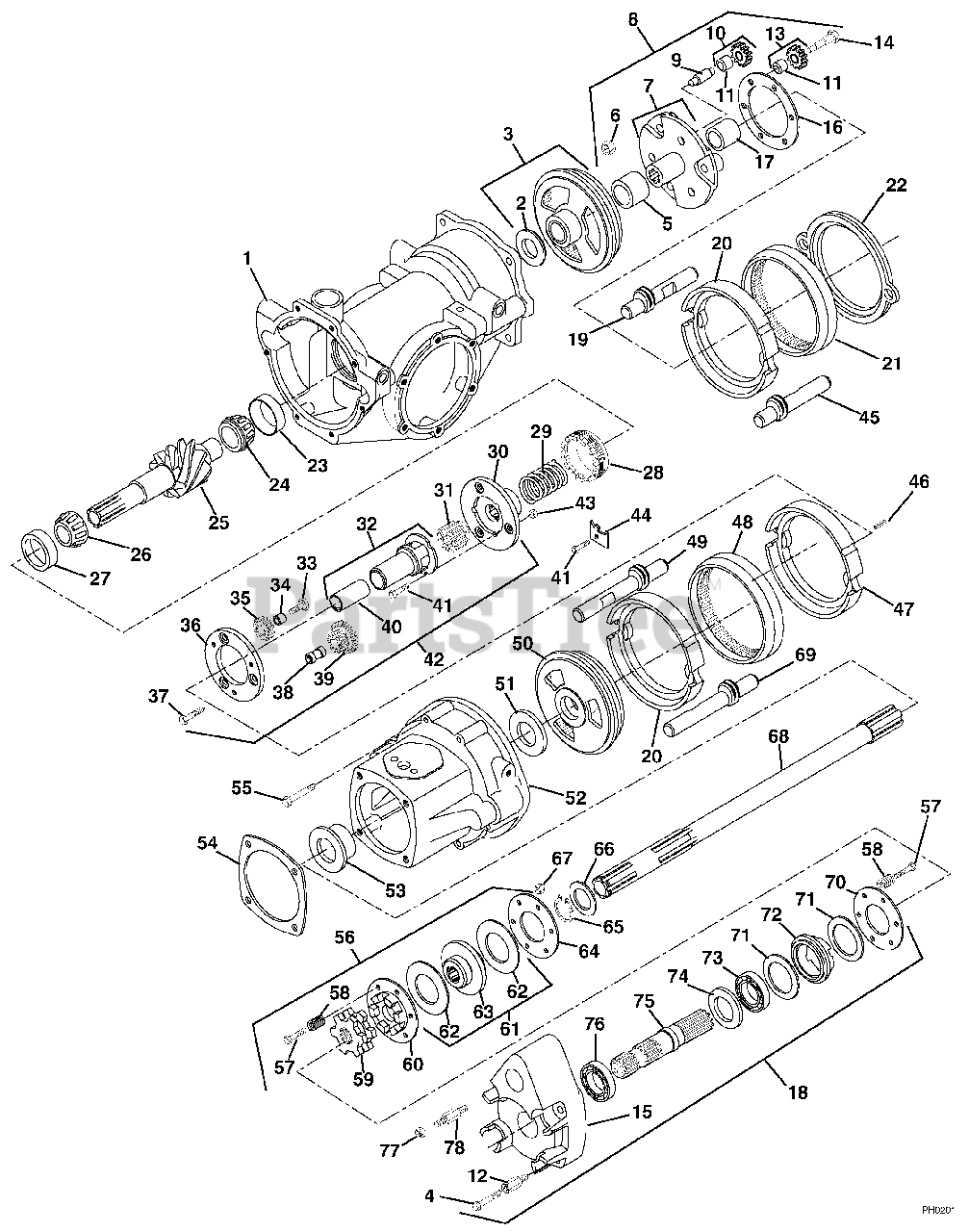

985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Transmission Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

Transmission Parts Diagram

  • Title

1

Gravely 010628

TRANSMISSION HOUSING
(Superseded to 08581600)

$

$

Not available

2

Gravely 012645

PLT,REAR THRUST
(Superseded to 08590300)

$

$

Not available

3

Gravely 011168

ASM,RING GEAR & BUSH
(Superseded to 08582400)

Note: (Includes Item 2)

$

$

Not available

4

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 011169

BSHG-SLV 1.125X1.502X1.312
(Superseded to 05519200)

$

$

Not available

6

Gravely 07051500

NUT-LK .312-18X.265 L H

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 011171

ASM,PLANET GEAR CARRIER
(Superseded to 08582600)

$

$

Not available

8

Gravely 014615

ASM,HI-LO PLANETARY
(Superseded to 68500400)

$

$

Not available

9

Gravely 011174

PIN,HI-LO ORBIT GEAR
(Superseded to 08582900)

$

$

Not available

10

Gravely 011175

ASM,INTERNAL ORBIT GEAR
(Superseded to 08583000)

Note: (Includes Item 11)

$

$

Not available

11

Gravely 011177

BSHG-SLV .500X.627X.465 BR
(Superseded to 05519400)

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 022479

STUD,QUICK HITCH
(Superseded to 08523300)

$32.99

$

Usually ships in 4-12 days

0

13

Gravely 011179

ASM,EXTERNAL ORBIT GEAR
(Superseded to 08583400)

Note: (Includes Item 11)

$

$

Not available

14

Gravely 011181

BLT,ORBIT GEAR
(Superseded to 08583600)

$44.99

$

Usually ships in 4-12 days

0

15

Gravely 042645

CSTG ,QUICK HITCH
(Superseded to 08550400)

$

$

Not available

16

Gravely 011178

SPACER-PIN
(Superseded to 08583300)

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 011172

BSHG-SLV .737X.877X.683 BRZ
(Superseded to 05520300)

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 044279

ASM,ATTACH ADPT
(Superseded to 21267700)

$

$

Not available

19

Gravely 043278

ROD,REAR RH CLUTCH SLIDE
(Superseded to 08550900)

$

$

Not available

20

Gravely 012644

ASM,CLUTCH CUP
(Superseded to 08590200)

$

$

Not available

21

Gravely 011182

GEAR ,REAR RING
(Superseded to 08583700)

$262.99

$

Usually ships in 4-12 days

0

22

Gravely 011183

SPACER-REAR
(Superseded to 08583800)

$

$

Not available

23

Gravely 010390

BRG-CUP 2.328X.465
(Superseded to 05404600)

$15.99

$

In Stock, Qty 15

0

24

Gravely 010389

BRG-CONE 1.25X.66
(Superseded to 05404700)

$22.99

$

In Stock, Qty 18

0

25

Gravely 021243

WLDMT,8-LEAD WORM
(Superseded to 08514600)

Note: (114, 115, 117, 119, 307, 309, 312)

$622.99

$

Usually ships in 4-12 days

0

Gravely 021241

WLDMT,4-LEAD WORM
(Superseded to 08514400)

Note: (311, 313)

$148.99

$

Usually ships in 4-12 days

0

26

Gravely 012332

BRG-CONE 1.250X2.875
(Superseded to 05428400)

$

$

Not available

27

Gravely 012333

BRG-CUP 2.875X.688
(Superseded to 05428500)

$

$

Not available

28

Gravely 012635

NUT-BRG 3.00-16 CI
(Superseded to 07016500)

$

$

Not available

29

Gravely 012663

SG-COMP .188X1.66X2.0
(Superseded to 08327400)

$

$

Not available

30

Gravely 012633

PLT,FRONT PIN
(Superseded to 08589600)

$

$

Not available

31

Gravely 012637

GR,SUN PINION SPUR
(Superseded to 08589900)

$

$

Not available

32

Gravely 014925

ASM,QUILL AND BUSHING

Note: (Includes Item 40)

$

$

Not available

33

Gravely 012658

BLT .38-24X.860
(Superseded to 07016200)

$

$

Not available

34

Gravely 012657

SPACER .375X.686X.516 ST
(Superseded to 08536300)

$

$

Not available

35

Gravely 012656

GR,REVERSE IDLER SPUR
(Superseded to 08590700)

$

$

Not available

36

Gravely 012655

SPACER-FRONT PIN
(Superseded to 08590600)

$

$

Not available

37

Gravely 012643

BLT-SPCR .38-16X1.81
(Superseded to 07013700)

$

$

Not available

38

Gravely 012640

PIN,FWD-REV ORB GR STL
(Superseded to 08590100)

$

$

Not available

39

Gravely 012639

GR,ORBIT SPUR
(Superseded to 08590000)

$

$

Not available

40

Gravely 012662

BSHG-SLV .875X1.002X2.015 BR
(Superseded to 05523300)

$

$

Not available

41

Gravely 106319

BLT-HEX .25-20X.62 PLAIN
(Superseded to 05944200)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 014922

ASM,FWD-REV PLANETARY
(Superseded to 58500100)

Note: (Includes Items 30-41)

$

$

Not available

43

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

44

Gravely 012648

NUT,ADJUSTING
(Superseded to 08590400)

$

$

Not available

45

Gravely 043277

ROD,REAR LH CLUTCH SLIDE
(Superseded to 08550800)

$

$

Not available

46

Gravely 013456

PIN-ROLL .368X.500
(Superseded to 05807500)

$

$

Not available

47

Gravely 012636

CUP,GEAR
(Superseded to 08589800)

$358.99

$

Usually ships in 4-12 days

0

48

Gravely 012632

GR,INTERNAL SPUR
(Superseded to 08589500)

$

$

Not available

49

Gravely 043275

ROD,L.H. CLUTCH SLIDE
(Superseded to 08550600)

$

$

Not available

50

Gravely 012654

CONE,REVERSE GEAR
(Superseded to 08590500)

$

$

Not available

51

Gravely 037820

DISK,FRICTION
(Superseded to 08539600)

$

$

Not available

52

Gravely 044957

ASM,ADVANCE CASTING
(Superseded to 08559700)

$

$

Not available

53

Gravely 044947

BSHG-FLG 1.375X1.628X.957X2.12
(Superseded to 05527100)

$

$

Not available

54

Gravely 005056

GSKT,ATTACHMENT
(Superseded to 08584900)

$3.99

$

In Stock, Qty 10

0

55

Gravely 05967900

BLT-HEX .31-18X3.25 GR 8 YWZC

$

$

Not available

56

Gravely 044278

ASM,CLUTCH
(Superseded to 21267600)

Note: (Includes Items 57, 58, 60, 62, 63, 64 & 67)

$

$

Not available

57

Gravely 05968000

BLT-HEX .31-24X1.75 GR 5 YWZC
(Superseded to 05902007)

$3.49

$

In Stock, Qty 9

0

58

Gravely 012871

SG-COMP .156X.343X.75 WLD??
(Superseded to 08354000)

$9.99

$

Usually ships in 4-12 days

0

59

Gravely 045422

DOG
(Superseded to 08560200)

$105.99

$

Usually ships in 4-12 days

0

60

Gravely 012867

PLT,DOG
(Superseded to 08592400)

$

$

Not available

61

Gravely 58501300

PTO CLUTCH FRICTION WASHER KIT

Note: (Includes Items 62 & 64. Does not include Item 63)

$87.99

$

Usually ships in 4-12 days

0

62

Gravely 08568500

WASHER, FRICTION

$28.99

$

Usually ships in 4-12 days

0

63

Gravely 044946

PLT,DRIVE
(Superseded to 08559500)

$

$

Not available

64

Gravely 012868

PLT,BACK
(Superseded to 08592500)

$43.99

$

Usually ships in 4-12 days

0

65

Gravely 05702600

RG-RTNG-EXT .875X.042

$2.49

$

Usually ships in 4-12 days

0

66

Gravely 021541

WSHR-THRST .877X1.427X.032
(Superseded to 06426100)

$11.99

$

In Stock, only 1 left!

0

67

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

68

Gravely 044645

SHFT,PINION
(Superseded to 08558200)

$

$

Not available

69

Gravely 043276

ROD, R H CLUTCH SLIDE
(Superseded to 08550700)

$

$

Not available

70

Gravely 043876

PLT,BACK
(Superseded to 08553200)

$

$

Not available

71

Gravely 043877

DISC,BRAKE
(Superseded to 08553300)

$59.99

$

Usually ships in 4-12 days

0

72

Gravely 043879

BRK,DOG PLATE
(Superseded to 08553400)

$

$

Not available

73

Gravely 021929

BRG-BALL .984X2.047X.591
(Superseded to 05422200)

$17.99

$

Usually ships in 4-12 days

0

74

Gravely 043882

SEAL 1.102X2.047X.315
(Superseded to 05617100)

$13.99

$

Usually ships in 4-12 days

0

75

Gravely 043875

SHFT,QUICK HITCH
(Superseded to 08553100)

$

$

Not available

76

Gravely 019072

BRG-BALL .984X2.04X.59
(Superseded to 05421500)

$15.99

$

In Stock, Qty 6

0

77

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

78

Gravely 024824

STUD,QUICK HITCH
(Superseded to 08531300)

$

$

Not available
