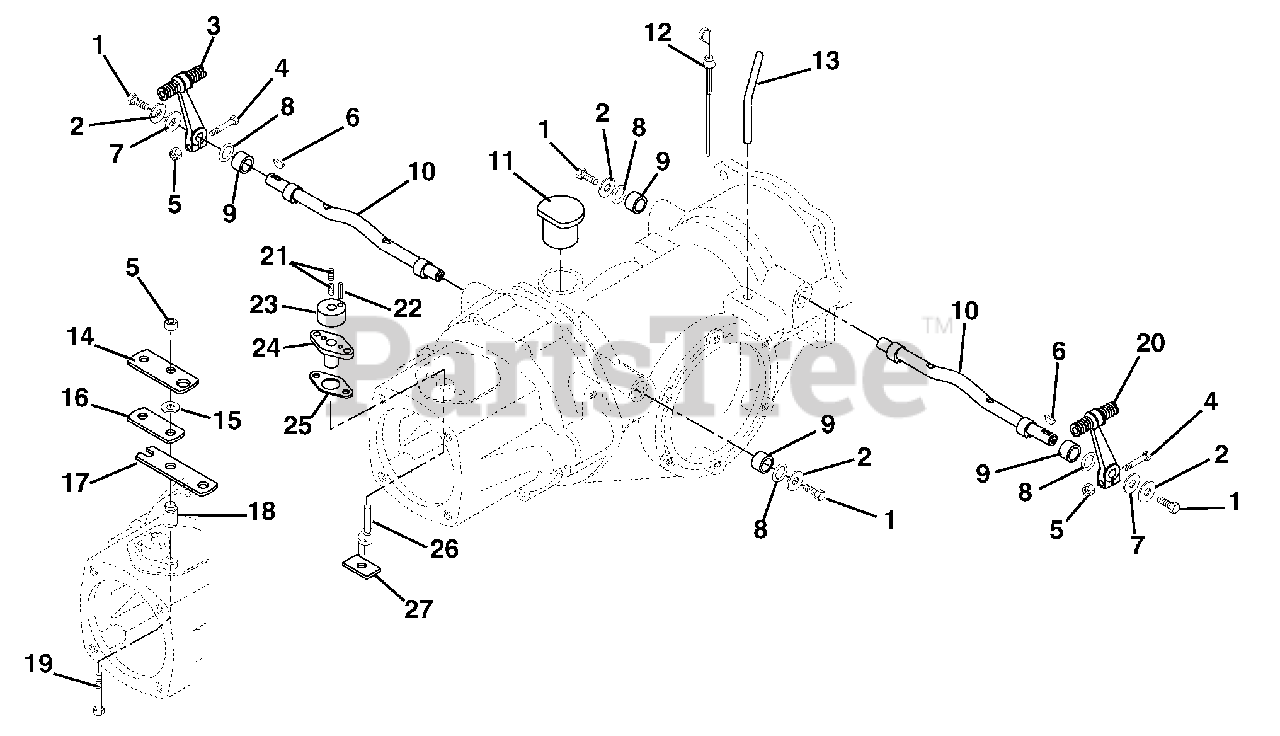

985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Transmission (Cont.) Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

Transmission (Cont.) Parts Diagram

  • Title

1

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

2

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 044485

ASM,FWD-REV LEVER
(Superseded to 68500200)

$

$

Not available

4

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 124545

KEY-WDRF .13X.63 HRD#5
(Superseded to 06608400)

$2.99

$

In Stock, only 1 left!

0

7

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 010663

0-RING .750X1.00X
(Superseded to 05619700)

$

$

Not available

9

Gravely 010618

BSHG-SLV .749X1.00X.625 ST
(Superseded to 08581300)

$

$

Not available

10

Gravely 010625

Shaft-Actuating
(Superseded to 08581500)

$

$

Not available

11

Gravely 010617

PLUG,OIL FILLER
(Superseded to 08581200)

$

$

Not available

12

Gravely 010622

ASM,DIP STICK
(Superseded to 08581400)

$

$

Not available

13

Gravely 041562

GUIDE,DIP STICK
(Superseded to 08596200)

$

$

Not available

14

Gravely 042164

BRKT,PTO SWITCH
(Superseded to 08549600)

$

$

Not available

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 020822

SPACER-STRAP
(Superseded to 08513400)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 08573100

ARM, SHIFTER

$13.99

$

Usually ships in 4-12 days

0

18

Gravely 012123

BUSH.,FLG .344X.562X.866 ST
(Superseded to 08588200)

$79.99

$

In Stock, only 2 left!

0

19

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 040667

ASM,HI-LO LEVER
(Superseded to 68505900)

$

$

Not available

21

Gravely 102591

SCR-SET .38-16X.25 HSCKT
(Superseded to 06004700)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 456384

PIN-ROLL .250X.75
(Superseded to 05803600)

$

$

Not available

23

Gravely 010688

BODY,SHIPPER SHAFT
(Superseded to 08581900)

$73.99

$

Usually ships in 4-12 days

0

24

Gravely 043351

SHFT,SHIPPER
(Superseded to 08552100)

$93.99

$

Usually ships in 4-12 days

0

Gravely 045187

GD,SHIPPER SHAFT
(Superseded to 08559900)

$

$

Not available

25

Gravely 018318

GSKT,SHIPPER SHAFT
(Superseded to 08502300)

$5.99

$

In Stock, only 2 left!

0

26

Gravely 043351

SHFT,SHIPPER
(Superseded to 08552100)

$93.99

$

Usually ships in 4-12 days

0

27

Gravely 043352

BLOCK,TRUNION
(Superseded to 08552200)

$79.99

$

Usually ships in 4-12 days

0
