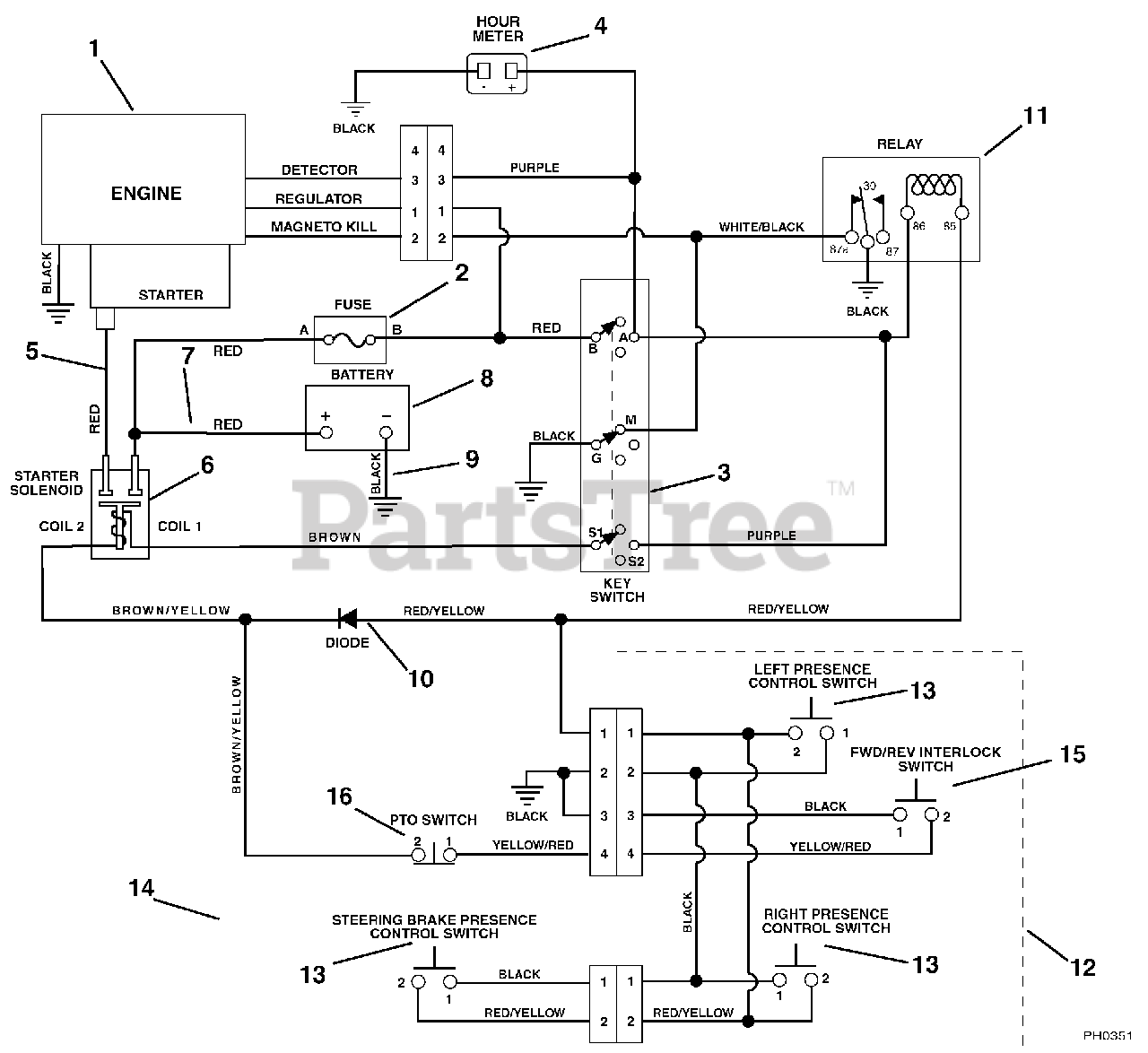

985117 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Wiring Diagram Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

Wiring Diagram Parts Diagram

  • Title

1

Gravely 08255700

ENGINE, ROBIN EH252YS7200

Note: (115, 307)

$

$

Not available

Gravely 08255800

ENGINE, ROBIN EH410YS7300

Note: (117, 309, 311, 312)

$

$

Not available

2

Gravely 00524600

FUSE, 30 AMP.

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

4

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

5

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

6

Gravely 044766

SOLENOID
(Superseded to 03551000)

$43.99

$

In Stock, Qty 6

0

7

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, only 2 left!

0

8

Gravely 03621100

BATTERY W/ TUBE

Note: (307, 309, 311, 312)

$

$

Not available

Gravely 01554800

BATTERY, 300 CCA 10U1L

Note: (115, 117)

$

$

Not available

9

Gravely 09222700

CBL, NEGATIVE BATT 35.0"LG
(Superseded to 03288200)

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

11

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 08591000

HARNESS, HANDLEBAR

$

$

Not available

13

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

14

Gravely 08594200

HARNESS, STEERING BRAKE

$

$

Not available

15

Gravely 051919

SWITCH,INTERLOCK CLOSED
(Superseded to 08571900)

Note: (Forward/Reverse)

$

$

Not available

16

Gravely 051918

SWITCH,INTERLOCK OPEN
(Superseded to 08571800)

Note: (PTO)

$59.99

$

In Stock, only 3 left!

0
