985300 - Gravely Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - PROFESSIONAL 16 B & S Parts Diagram

Walk-Behind 2-Wheel Tractor

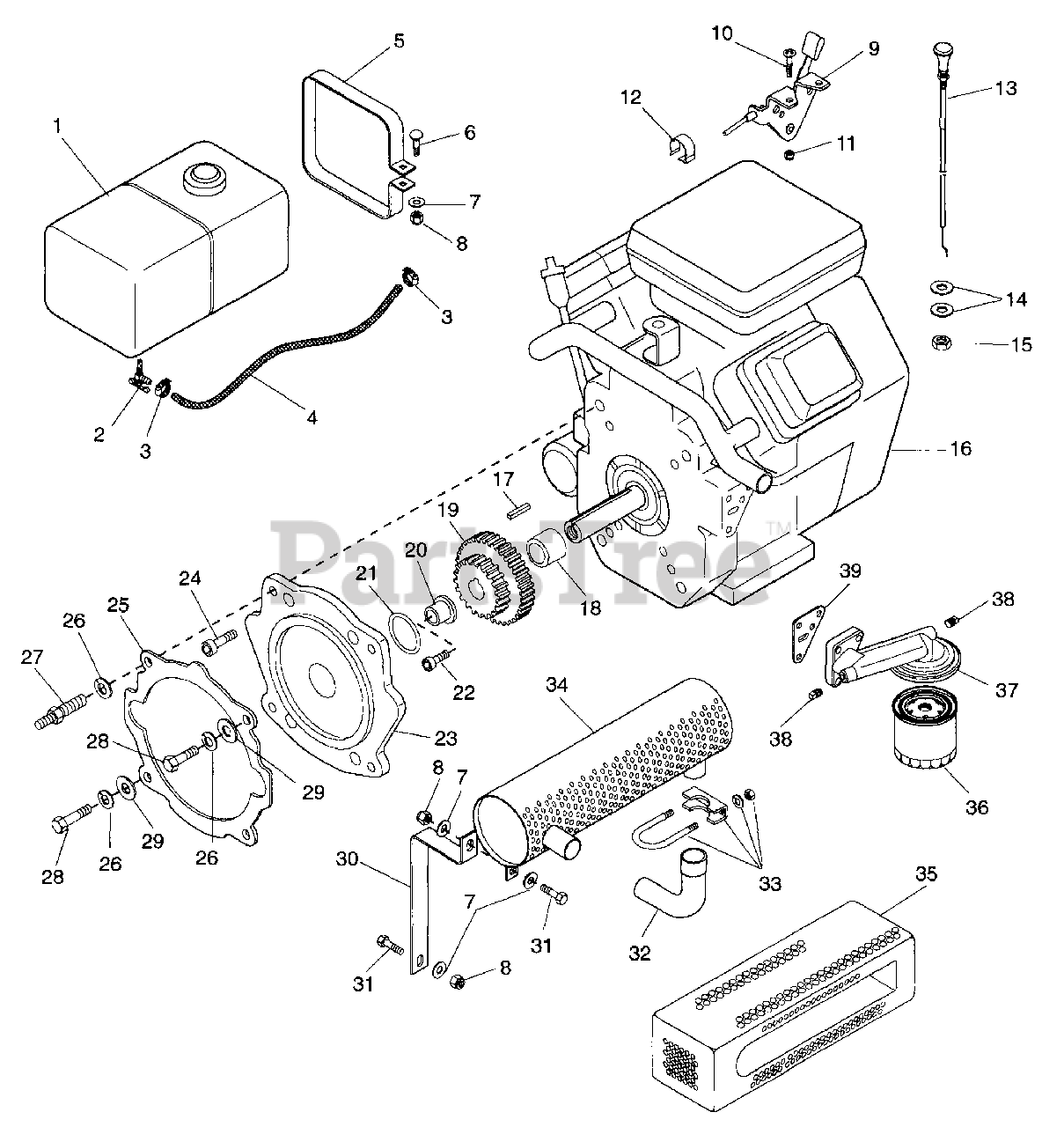

FUEL AND EXHAUST SYSTEM - PROFESSIONAL 16 B & S Parts Diagram

  • Title

1

Gravely 08575151

Tank, Fuel
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 007354

Valve & Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

3

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 010640

Strap, Fuel Tank
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

6

062045

Bolt, Round Head Square Neck .25-20 x 1.75

$

$

Not available

7

Gravely 050365

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

8

Gravely 419454

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

9

Gravely 050133

Control, Choke
(Superseded to 06929400)

$68.99

$

Usually ships in 4-12 days

0

10

Gravely 159920

Screw-Machine 10-24 x .50
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

11

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

13

Gravely 050132

Lever, Choke Control
(Superseded to 06929300)

$

$

Not available

14

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 124925

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

16

Gravely 082410

Engine - 16 HP B & S

$

$

Not available

17

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, Qty 11

0

18

Gravely 046436

Bushing-Flange 1.05 x 1.31 x 1.54
(Superseded to 08567400)

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 046410

Gear, B & S Engine
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

20

Gravely 046411

Pilot, Gear
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

21

Gravely 047144

O-Ring 1.850 x 2.270 x .210
(Superseded to 05617900)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 453440

Screw-Machine .38-24 x 1.00
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 046989

Adapter B & S Engine
(Superseded to 08565700)

$

$

Not available

24

Gravely 421648

Screw-Socket Head .44 - 14 x 1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

26

Gravely 131100

Washer-Lock .438 x .133
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

28

Gravely 180149

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

29

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

30

Gravely 049327

Bracket, Exhaust
(Superseded to 08569900)

$

$

Not available

31

Gravely 180022

Bolt-Hex .25-20 x 1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

32

Gravely 049191

Elbow
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 044399

Muffler
(Superseded to 08555600)

$

$

Not available

35

Gravely 085615

Muffler Guard
(Superseded to 08561500)

$59.99

$

Usually ships in 4-12 days

0

36

Gravely 492932

Filter, Oil

$

$

Not available

37

Gravely 085183

Oil Filter Adapter
(Superseded to 08518300)

$113.99

$

Usually ships in 4-12 days

0

38

Gravely 070242

Plug-Pipe 1/16 - 27
(Superseded to 07024200)

$9.49

$

Usually ships in 4-12 days

0

39

Gravely 805250

Gasket, Oil Filter Adapter

$

$

Not available
