985303 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) ELECTRICAL SYSTEM - MANUAL START MODELS Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

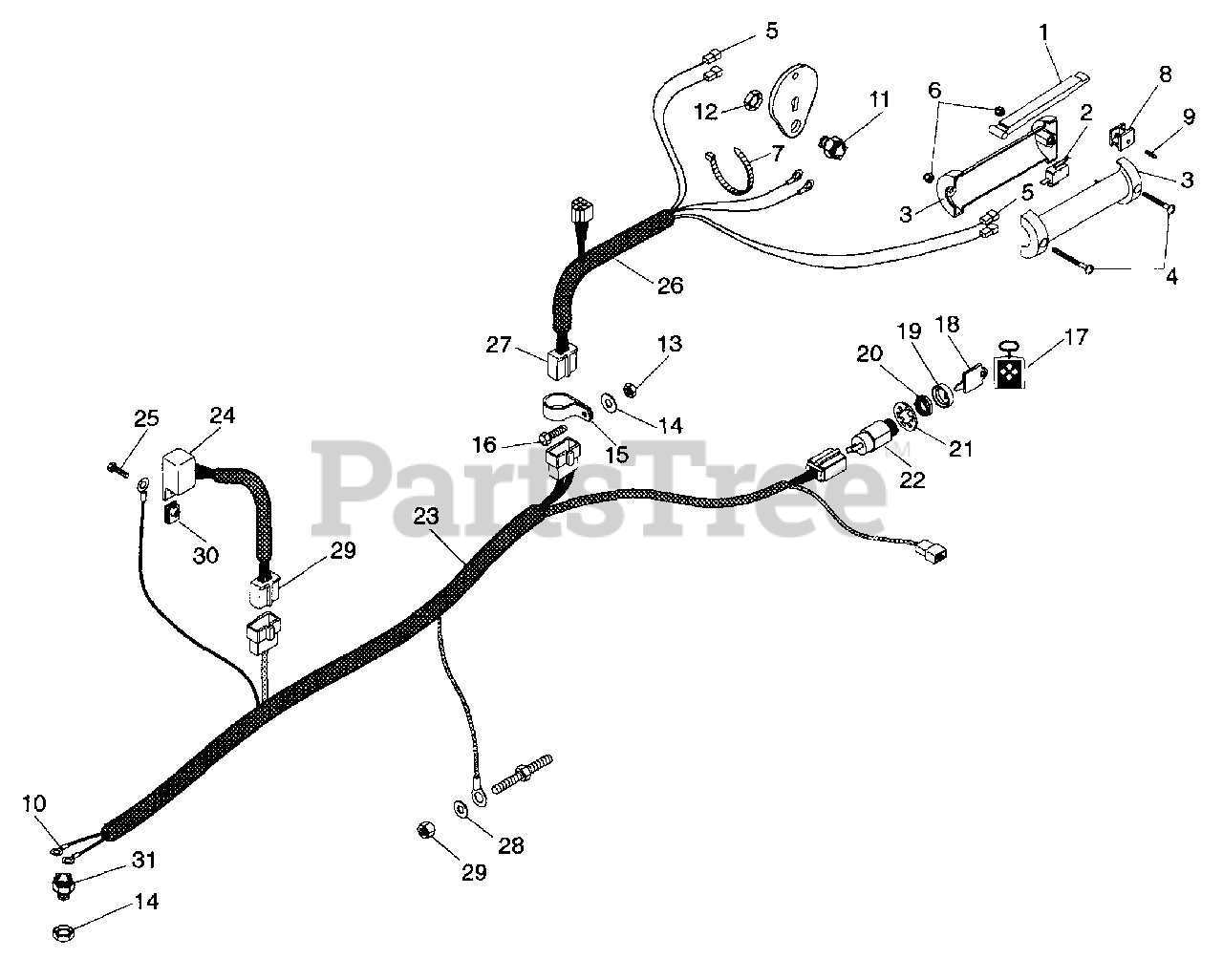

ELECTRICAL SYSTEM - MANUAL START MODELS Parts Diagram

  • Title

1

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

3

Gravely 088702

Handle, Left Hand & Right Hand
(Superseded to 08870200)

$35.99

$

In Stock, only 2 left!

0

4

Gravely 159967

Screw-Machine 10-24 x 1.50
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

6

Gravely 190254

Nut-Locking-Flange .250-20
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 088551

Holder Switch
(Superseded to 08855100)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, Qty 5

0

10

Gravely 051920

Terminal, Eyelet
(Superseded to 08572000)

$

$

Not available

11

Gravely 051919

Switch, Interlock Closed
(Superseded to 08571900)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 419454

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Gravely 033340

Cable Clamp
(Superseded to 03334000)

$

$

Not available

16

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

17

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

18

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 19

0

19

Gravely 045490

Cap-lgnition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

20

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

21

Gravely 063019

Washer-Lock-lnternal .625 x .045
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

22

Gravely 024565

Key Switch Assembly

$

$

Not available

23

Gravely 051900

Harness, 10-HP Kawasaki
(Superseded to 08571300)

$

$

Not available

24

Gravely 048905

Module, Interlock Recoil
(Superseded to 08569400)

$

$

Not available

25

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

26

Gravely 047306

Harness, Wiring Handle Bar
(Superseded to 08567001)

$77.99

$

Usually ships in 4-12 days

0

27

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 456004

Nut-Locking-Nylon .375-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

30

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

31

Gravely 051918

Switch, Interlock Open
(Superseded to 08571800)

$62.99

$

In Stock, only 3 left!

0
