985305 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) ELECTRICAL SYSTEM - ELECTRIC START - INTERNATIONAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

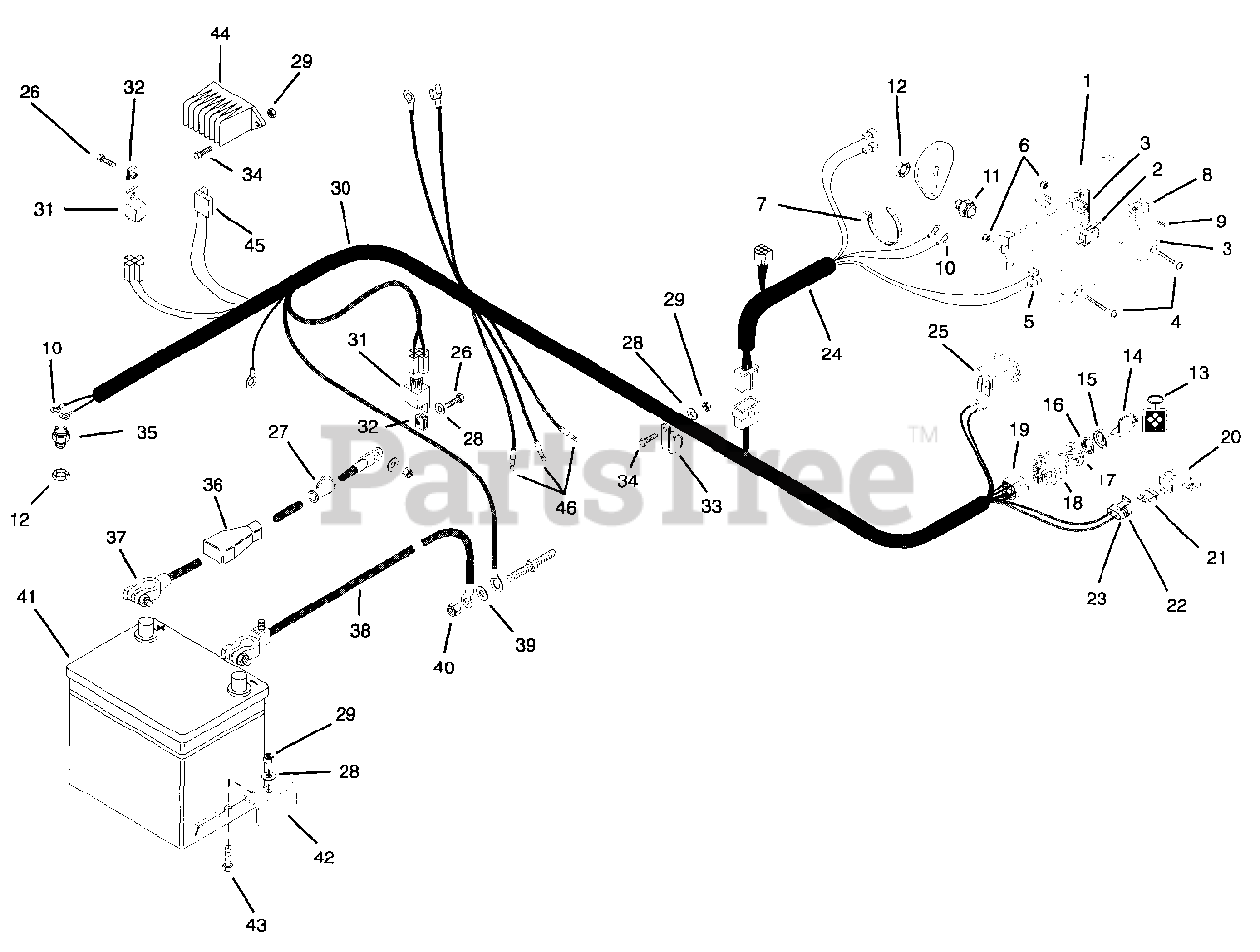

ELECTRICAL SYSTEM - ELECTRIC START - INTERNATIONAL Parts Diagram

  • Title

1

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

3

Gravely 08870200

HANDLE, L.H. & R.H.

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 046988

TERMINAL,FEMALE
(Superseded to 08828400)

$

$

Not available

6

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 08855100

HOLDER, SWITCH

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 05808100

PIN-ROLL .094X.750

$0.99

$

In Stock, Qty 5

0

10

Gravely 051920

TERMINAL,EYELET
(Superseded to 08572000)

$

$

Not available

11

Gravely 051919

SWITCH,INTERLOCK CLOSED
(Superseded to 08571900)

$

$

Not available

12

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

14

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

16

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

17

Gravely 006306900

Washer-Lock Internal .563 x .040

$

$

Not available

18

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

$70.99

$

In Stock, Qty 9

0

19

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

20

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

21

Gravely 048733

FUSE,7.5 AMP

$

$

Not available

22

Gravely 045923

TERM.,FOR 10-12 GA WIRE
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

24

Gravely 047306

HRNS,WIRING HANDLEBAR
(Superseded to 08567001)

$

$

Not available

25

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

26

Gravely 05944200

BLT-HEX .25-20X.62 PLAIN

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 03384700

BOOT, INSULATOR

Note: (107,108,109)

$

$

Not available

28

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 051901

HARNESS, WIRING 10 KAW. ELECT.
(Superseded to 08571400)

Note: (306)

$

$

Not available

Gravely 051898

HRNS,10,12&16-HP ELECT
(Superseded to 08571100)

Note: (304)

$

$

Not available

Gravely 051899

HRNS,16-HP ELECT B&S
(Superseded to 08571201)

Note: (305)

$181.99

$

In Stock, only 1 left!

0

31

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

32

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

33

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

35

Gravely 051918

SWITCH,INTERLOCK OPEN
(Superseded to 08571800)

$59.99

$

In Stock, only 3 left!

0

36

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

37

Gravely 021368

CBL,POSITIVE BATTERY
(Superseded to 08516500)

Note: (304)

$

$

Not available

Gravely 011033

CBL,BAT-TO-MAG SWTCH26.0
(Superseded to 08582200)

Note: (305,306)

$

$

Not available

38

Gravely 040410

CBL,NEG BATTERY
(Superseded to 08542000)

$

$

Not available

39

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 042597

$

$

Not available

42

Gravely 037742

CLAMP
(Superseded to 08539500)

$23.99

$

Usually ships in 4-12 days

0

43

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 098009

Reg, Rectifier

$

$

Not available

45

Gravely 038800

CONNECTOR
(Superseded to 20652300)

$16.99

$

Usually ships in 4-12 days

0

46

Gravely 046136

TERMINAL,MALE
(Superseded to 08973800)

$

$

Not available

Gravely 044321

CABLE TIE .187 X 11 50022830
(Superseded to 02589600)

Note: NS

$

$

Not available
