985305 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - 16HP Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

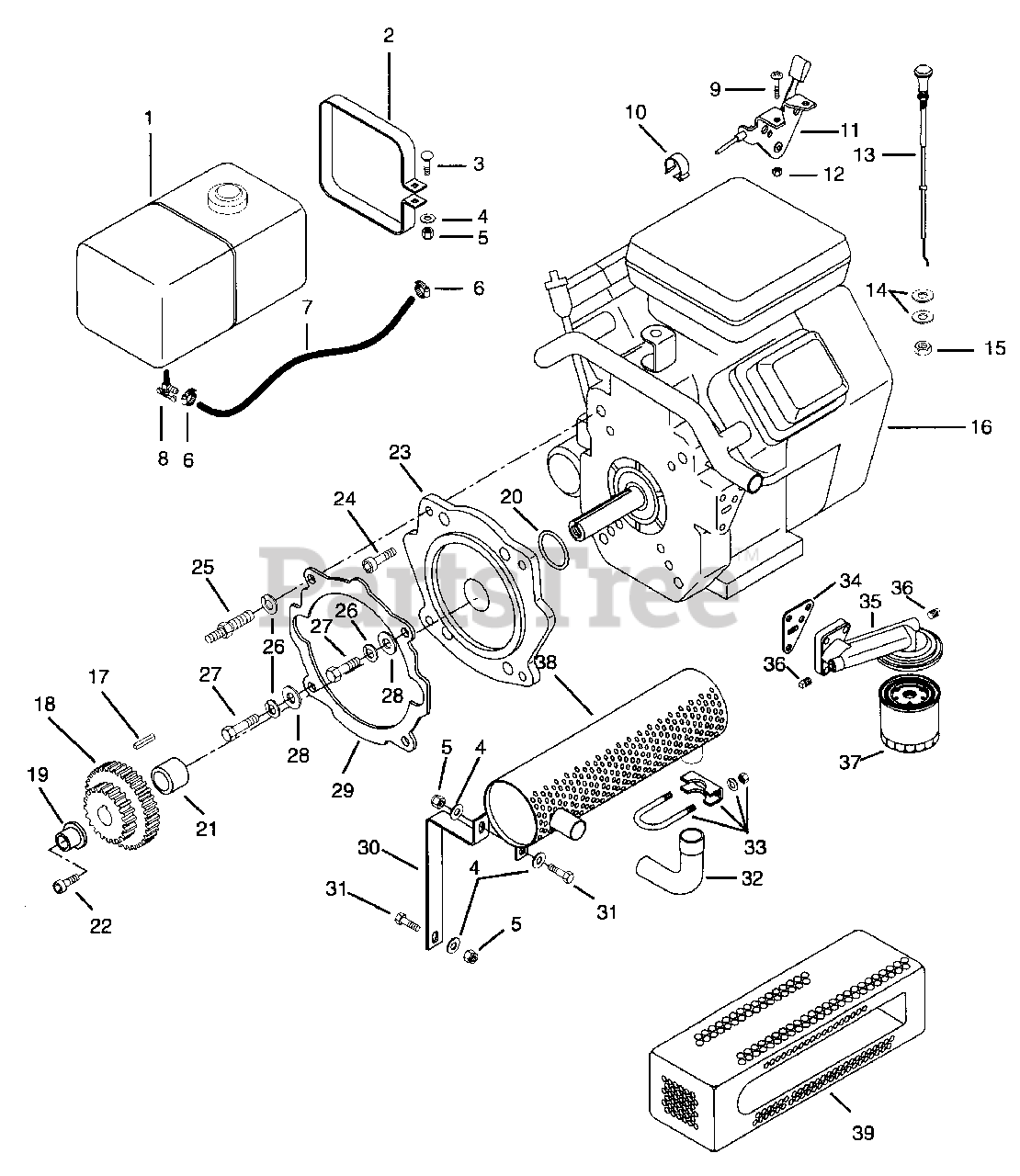

FUEL AND EXHAUST SYSTEM - 16HP Parts Diagram

  • Title

1

Gravely 08575151

TANK,FUEL,W/CAP,BLACK,2-WHL TR
(Superseded to 08575100)

$395.99

$

Usually ships in 4-12 days

0

2

Gravely 08581800

STRAP,FUEL TANK

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03204500

BRACKET
(Superseded to 53200400)

$

$

Not available

7

Gravely 02113400

OBSOLETE USE # 1499-1 1499

$

$

Not available

8

Gravely 00735400

ANGLE BRACE MACK GRILL GUARD

$

$

Not available

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 00826000

GRUB-SCREW M8 X 6 - UNI 5923

$

$

Not available

11

Gravely 05013300

WMT-CASTER FORK-LH

$

$

Not available

12

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05013200

STOP,LH PT/PT100 DRIVE CONTROL

$

$

Not available

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 08241000

ENG,16-HP B&S (2-WHL)

$

$

Not available

17

Gravely 00921300

LOCKTITE RC/653 (#63531)

$

$

Not available

18

Gravely 04641000

DISC - CUTTER - HEX

$26.99

$

In Stock, only 4 left!

0

19

Gravely 04641100

GUIDE - HEIGHT - HEX
(Superseded to 04627000)

$52.99

$

In Stock, Qty 12

0

20

Gravely 04714400

WLDMT, HEIGHT OF CUT

$277.99

$

Usually ships in 4-12 days

0

21

Gravely 04643600

GUARD-FLYWHEEL-LARGE STRTRM CE

$

$

Not available

22

Gravely 453440

SCR-MCH .38-24X1.00
(Superseded to 06114100)

$

$

Not available

23

Gravely 04698900

MANUAL, 2014 PT100-CE PARTS

$

$

Not available

24

Gravely 421648

SCR-SKH .44-14X1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

26

Gravely 06310700

WSHR-LK .438X.133 HVY YWZC

$3.49

$

In Stock, only 1 left!

0

27

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

28

Gravely 120395

WSHR-FL-STL .469X.938X.065
(Superseded to 06429400)

$

$

Not available

29

Gravely 010635

GSKT,CHASSIS TO ADAPTER
(Superseded to 08602800)

$16.99

$

In Stock, only 2 left!

0

30

Gravely 049327

BRKT,EXHAUST
(Superseded to 08569900)

$

$

Not available

31

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

32

Gravely 049191

ELBOW
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

CLAMP-MUFFLER 1.25
(Superseded to 06920900)

$7.49

$

In Stock, Qty 11

0

34

Gravely 805250

Gasket, Oil Filter Adapter

$

$

Not available

35

Gravely 08518300

OIL FILTER MANIFOLD

$113.99

$

Usually ships in 4-12 days

0

36

Gravely 07027200

PLUG-PIPE 1/16-27

$

$

Not available

37

Gravely 491056

Filter, Oil (114)

Note: (114)

$10.99

$

In Stock, Qty 20+

0

Gravely 492932

FIlter, Oil (305)

Note: (305)

$

$

Not available

38

Gravely 044399

MUFFLER
(Superseded to 08555600)

$

$

Not available

39

Gravely 08561500

MUFFLER GUARD

$59.99

$

Usually ships in 4-12 days

0
