985306 - Gravely Walk-Behind 2-Wheel Tractor, No Engine, Electric Start (SN: 000101 & Above) FRAME - PROFESSIONAL 16 Parts Diagram

Walk-Behind 2-Wheel Tractor, No Engine, Electric Start

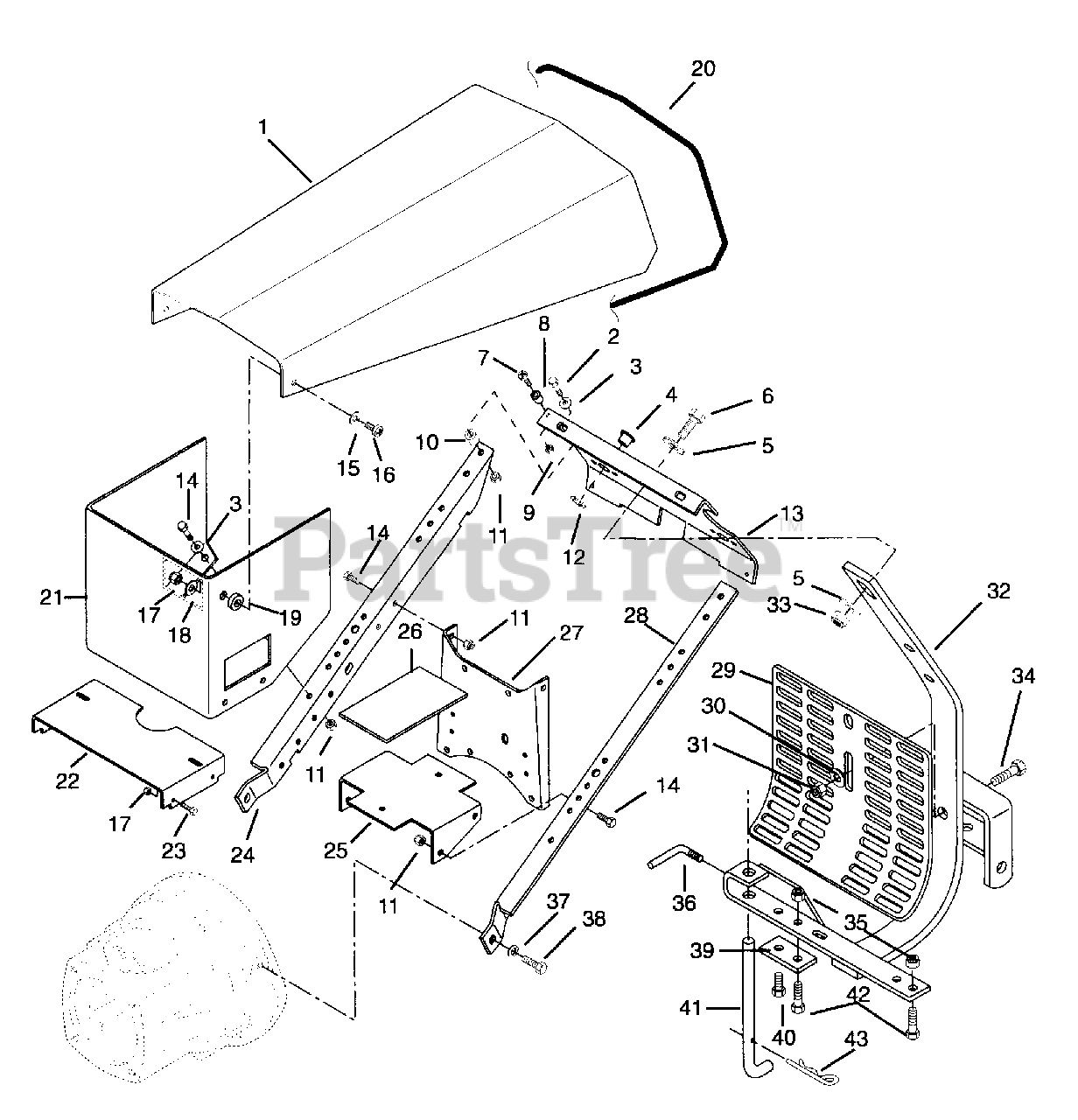

FRAME - PROFESSIONAL 16 Parts Diagram

  • Title

1

Gravely 040871

HOOD,8 HP

$

$

Not available

2

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

3

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05968100

BLT-HEX .62-11X2.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06117900

SCR-MCH 6-32X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

9

Gravely 06538900

NUT-LK-NYL 6-32 W/INSRT YWZC

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

Note: (114,305)

$1.49

$

In Stock, Qty 20+

0

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

Note: (306)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 034737

RG-RTNG 1.000X.748
(Superseded to 05715100)

$

$

Not available

13

Gravely 044658

PLT,INSTRUMENT
(Superseded to 08558400)

$

$

Not available

14

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

15

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06118100

SCR-MCH .25-20X1.00HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (114,305)

$0.99

$

In Stock, Qty 20+

0

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (306)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 041622

BUSH.,F.280X.750X.318 NY
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

20

Gravely 046424

STRIP, COWL
(Superseded to 00922700)

Note: (305,306)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 046387

SPRT,HOOD
(Superseded to 08564100)

$

$

Not available

22

Gravely 046390

BRACKET, BATTERY MOUNT
(Superseded to 08574400)

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 05944200

BLT-HEX .25-20X.62 PLAIN

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 046796

SPRT,HANDLE BAR R.H.
(Superseded to 08565400)

$92.99

$

Usually ships in 4-12 days

0

25

Gravely 046824

BRKT,TANK SUPPORT
(Superseded to 08565600)

$

$

Not available

26

Gravely 041075

PAD,GAS TANK
(Superseded to 08602600)

$

$

Not available

27

Gravely 046388

BRKT
(Superseded to 08564200)

$34.99

$

Usually ships in 4-12 days

0

28

Gravely 046797

SPRT,HANDLE BAR L.H.
(Superseded to 08565500)

$

$

Not available

29

Gravely 047190

GRD,ENGINE
(Superseded to 08566900)

Note: (114)

$

$

Not available

30

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

Note: (114)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

Note: (114)

$4.99

$

In Stock, Qty 19

0

32

Gravely 047527

WLDMT,HITCH
(Superseded to 08568100)

Note: (114,305)

$

$

Not available

Gravely 046392

WLDMT,HITCH
(Superseded to 08564400)

Note: (306)

$74.99

$

Usually ships in 4-12 days

0

33

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

34

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

35

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Not 306)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 013457

HNDL,ADJUSTING
(Superseded to 08597900)

$53.99

$

Usually ships in 4-12 days

0

37

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

39

Gravely 050134

BRACKET
(Superseded to 08570500)

$

$

Not available

40

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 034062

STAND,KICK
(Superseded to 08536500)

$

$

Not available

42

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

Note: (114,305)

$1.99

$

In Stock, Qty 19

0

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: (306)

$3.49

$

In Stock, Qty 20+

0

43

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0
