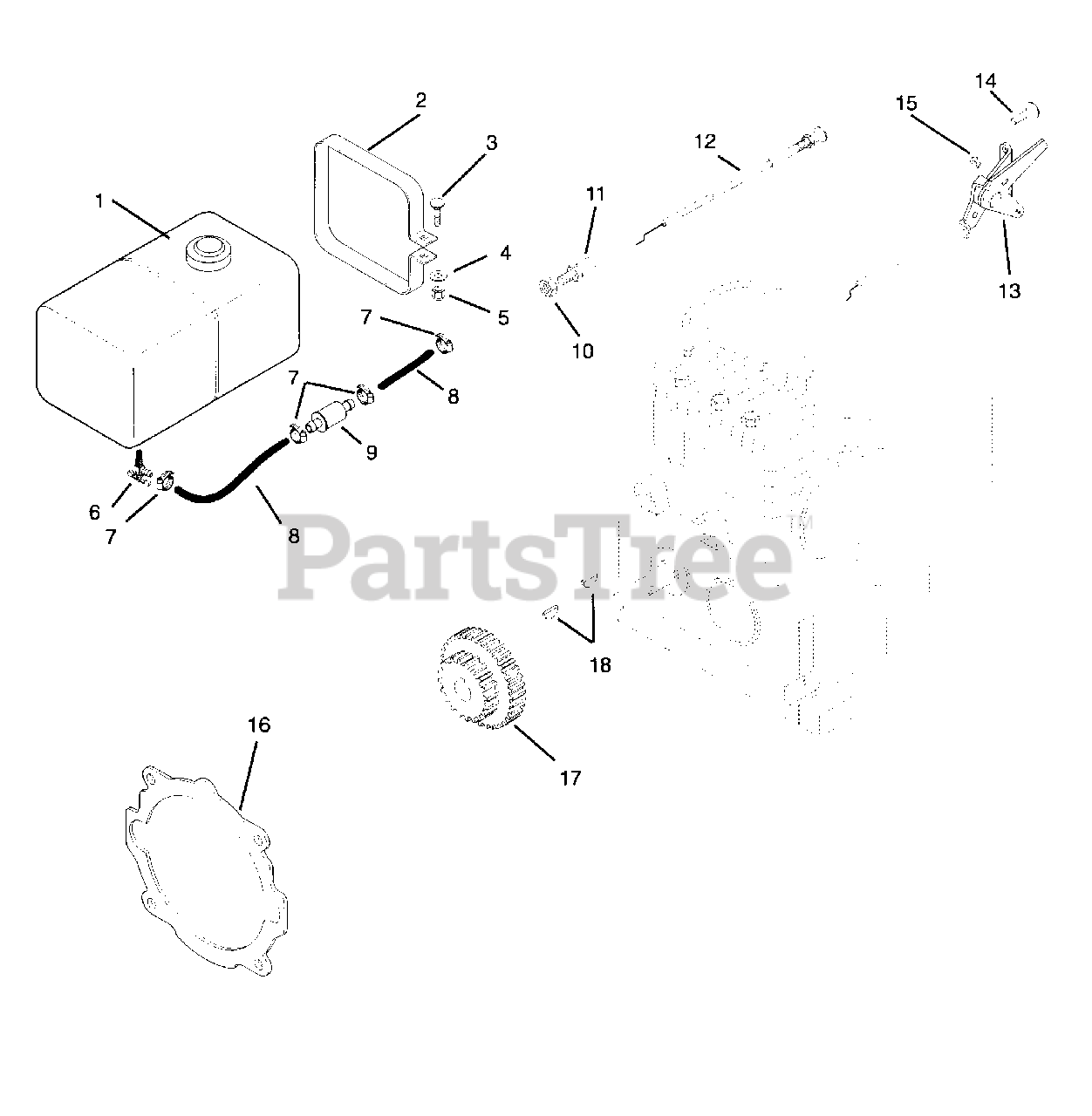

985306 - Gravely Walk-Behind 2-Wheel Tractor, No Engine, Electric Start (SN: 000101 & Above) FUEL SYSTEM AND ENGINE CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, No Engine, Electric Start

FUEL SYSTEM AND ENGINE CONTROL Parts Diagram

  • Title

1

Gravely 08575151

Tank, Fuel w/Cap
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010640

Strap, Fuel Tank
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .62
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 06529700

Nut-Lock-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 007354

Valve and Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

7

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 040742

Filter, Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 06533200

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

11

Gravely 018521

Adapter, Conduit
(Superseded to 06921000)

$

$

Not available

12

Gravely 046795

Lever, Choke Control
(Superseded to 06928600)

$

$

Not available

13

Gravely 046794

Lever, Throttle
(Superseded to 06928500)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06536000

Nut-Lock Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

17

Gravely 017838

Gear, 10/12 DP 21/30 Teeth
(Superseded to 08505300)

$

$

Not available

18

Gravely 124546

Key, Woodruff .16 x .63
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0
