985307 - Gravely Walk-Behind 2-Wheel Tractor, 8.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Fuel And Exhaust System - 8.5 HP Robin Parts Diagram

Walk-Behind 2-Wheel Tractor, 8.5hp Robin Subaru, Electric Start

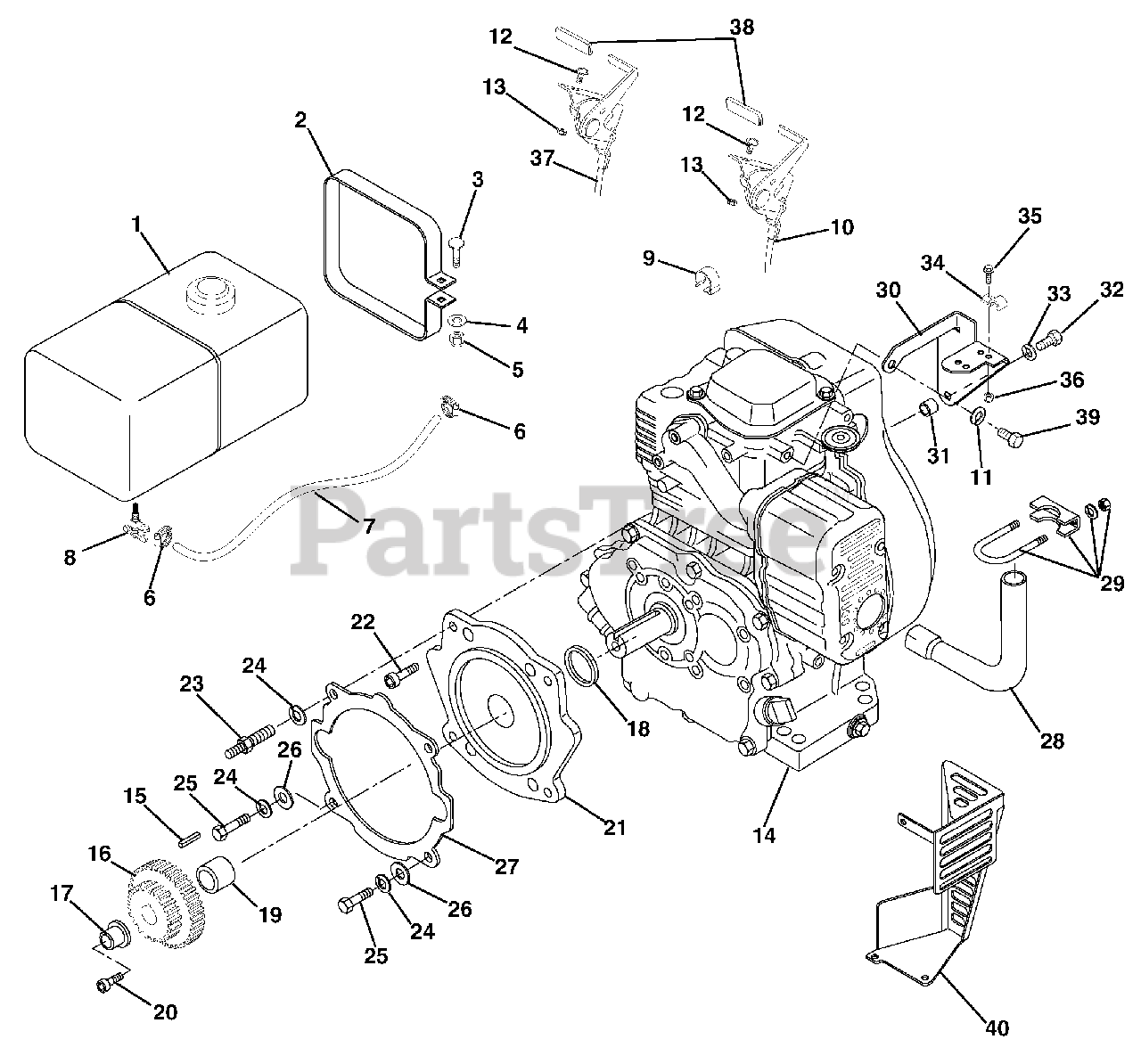

Fuel And Exhaust System - 8.5 HP Robin Parts Diagram

  • Title

1

Gravely 08581700

ASM,FUEL TANK

$

$

Not available

2

Gravely 010640

STRAP,FUEL TANK
(Superseded to 08581800)

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 007354

VALVE & STRAINER
(Superseded to 08860200)

$

$

Not available

9

Gravely 008260

CLAMP
(Superseded to 06901200)

$5.49

$

Usually ships in 4-12 days

0

10

Gravely 06941900

CABLE, CONTROL

Note: (Throttle)

$

$

Not available

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 08255700

ENGINE, ROBIN EH252YS7200

$

$

Not available

15

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$3.49

$

In Stock, Qty 14

0

16

Gravely 046410

GR,B&S ENGINE
(Superseded to 08564700)

$

$

Not available

17

Gravely 046411

PILOT,GEAR
(Superseded to 08564800)

$70.99

$

Usually ships in 4-12 days

0

18

Gravely 022506

SEAL 1.188X2.000X.250
(Superseded to 05616400)

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 08572900

SPACER, 1.00X1.31X.836

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 453440

SCR-MCH .38-24X1.00
(Superseded to 06114100)

$

$

Not available

21

Gravely 08571700

ADAPTER, ENGINE

$

$

Not available

22

Gravely 05930400

SCR-SKH .38-16X1.00

$

$

Not available

23

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

24

Gravely 06310700

WSHR-LK .438X.133 HVY YWZC

$3.49

$

In Stock, only 1 left!

0

25

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

26

Gravely 120395

WSHR-FL-STL .469X.938X.065
(Superseded to 06429400)

$

$

Not available

27

Gravely 010635

GSKT,CHASSIS TO ADAPTER
(Superseded to 08602800)

$16.99

$

In Stock, only 2 left!

0

28

Gravely 049191

ELBOW
(Superseded to 08569500)

$

$

Not available

29

Gravely 014728

CLAMP-MUFFLER 1.25
(Superseded to 06920900)

$7.49

$

In Stock, Qty 11

0

30

Gravely 08594300

BRKT, CABLE MOUNT

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 03233600

SPACER .322X.626X.50

$13.99

$

Usually ships in 4-12 days

0

32

Gravely 05972000

BLT-HEX M6-1.0X25 YWZC

$

$

Not available

33

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

34

Gravely 045242

CLIP
(Superseded to 06928000)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

36

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06942000

CABLE, CONTROL

Note: (Choke)

$

$

Not available

38

Gravely 07521500

GRIP

$

$

Not available

39

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

40

Gravely 08596500

GUARD, MUFFLER

Note: (307)

$13.99

$

Usually ships in 4-12 days

0
