985307 - Gravely Walk-Behind 2-Wheel Tractor, 8.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Fuel And Exhaust System - 8.5 HP Robin Parts Diagram

Walk-Behind 2-Wheel Tractor, 8.5hp Robin Subaru, Electric Start

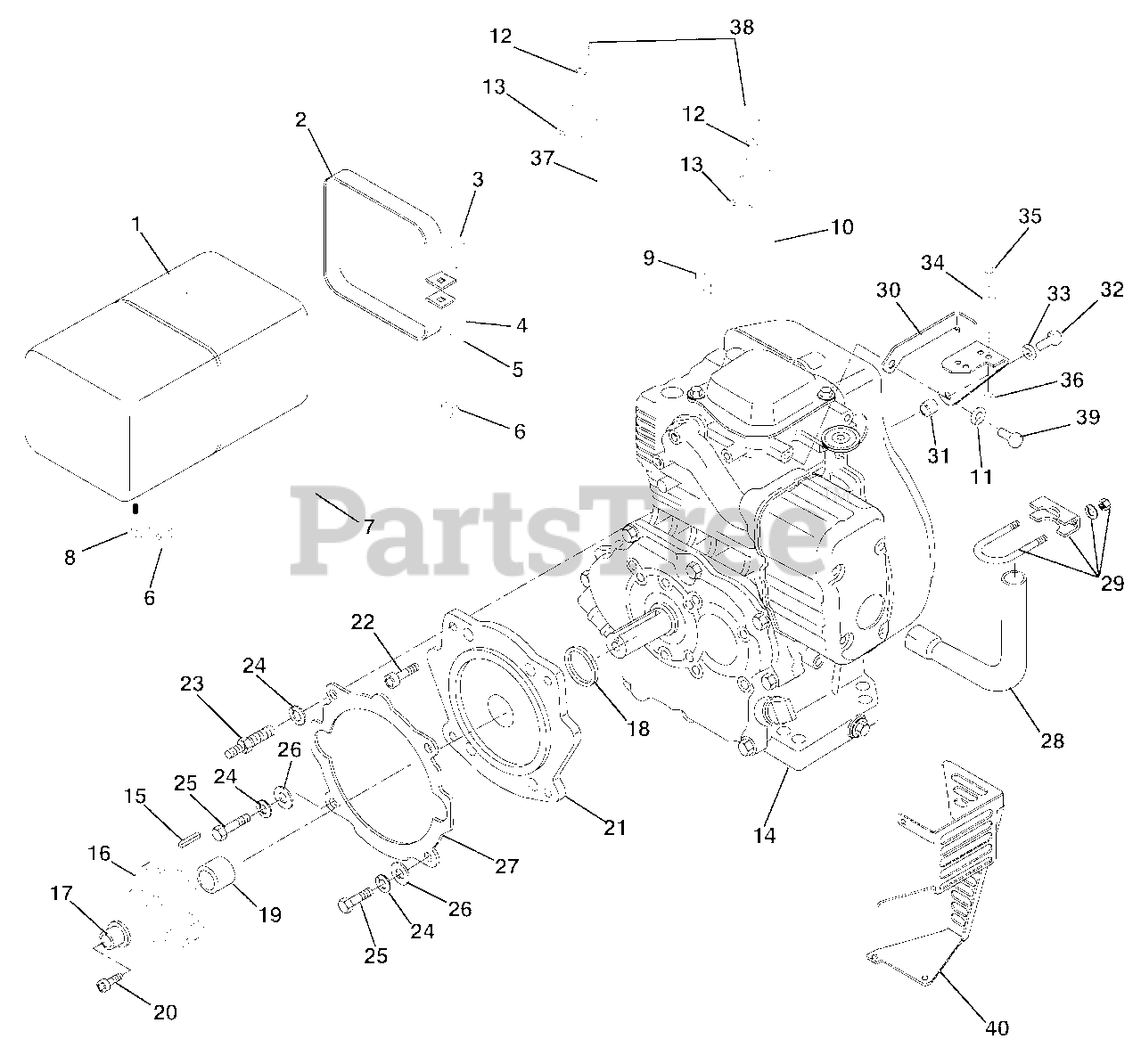

Fuel And Exhaust System - 8.5 HP Robin Parts Diagram

  • Title

1

Gravely 08581700

Tank,Gas with Cap

$

$

Not available

2

Gravely 010640

Strap-Fuel Tank
(Superseded to 08581800)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 007354

Valve & Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

9

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

10

Gravely 06941900

Cable-Control (Throttle)

Note: (Throttle)

$

$

Not available

11

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 08255700

Engine-8HP Robin

$

$

Not available

15

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, Qty 11

0

16

Gravely 046410

Gear
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

17

Gravely 046411

Pilot-Gear
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

18

Gravely 022506

Seal 1.188 x 2.000 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

19

Gravely 08572900

Spacer-Steel 1.00 x 1.31 x .836

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 453440

Screw-Machine .38-24 x 1.00
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 08571700

Adapter

$

$

Not available

22

Gravely 05930400

Screw-Socket Head .38-16 x 1.00

$

$

Not available

23

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

24

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 05962800

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

26

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

27

Gravely 010635

Gasket-Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, Qty 5

0

28

Gravely 049191

Elbow
(Superseded to 08569500)

$

$

Not available

29

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

30

Gravely 08594300

Bracket-Cable Mount

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 03233600

Spacer

$13.99

$

Usually ships in 4-12 days

0

32

Gravely 05972000

Bolt-Hex M6 x 1.00 x 20

$

$

Not available

33

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

34

Gravely 045242

Clip-Cable
(Superseded to 06928000)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 06116900

Screw-Machine Hex Washer Head 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 06536000

Nut-Locking-Nylon 10-24 w/ Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

37

Gravely 06942000

Cable-Control (Choke)

Note: (Choke)

$

$

Not available

38

Gravely 07521500

Grip

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16

$

$

Not available

40

Gravely 08596500

Muffler Guard (307)

Note: (307)

$13.99

$

Usually ships in 4-12 days

0
