985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Battery Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

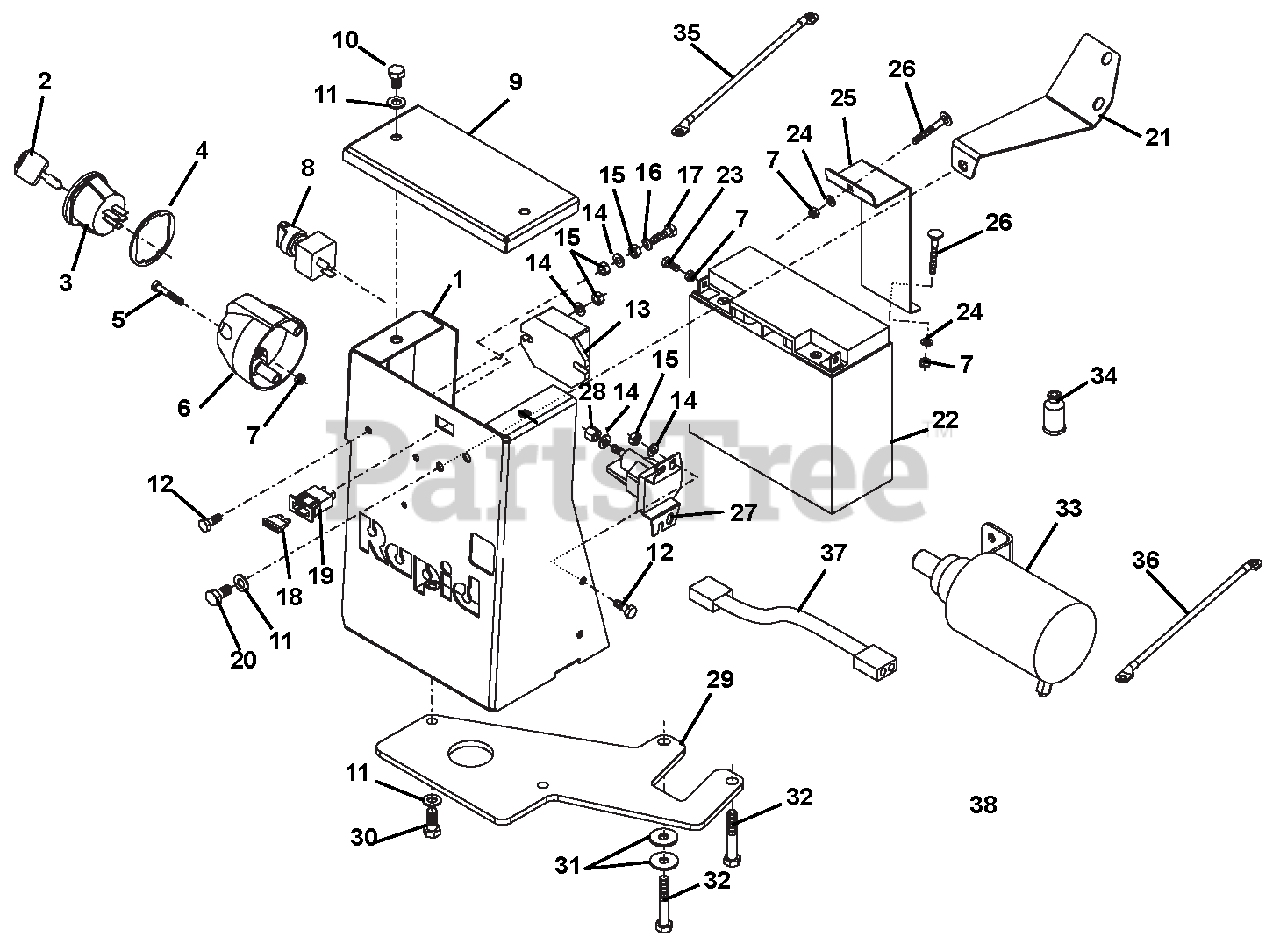

Battery Parts Diagram

  • Title

1

Gravely 00683000

BATTERY CAGE

$

$

Not available

2

Gravely 08697300

ASSY, KEY

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 08697200

ASSY, STARTER SWITCH

$66.99

$

Usually ships in 4-12 days

0

4

Gravely 00862200

SPACER

$

$

Not available

5

Gravely 00683100

SCREW, CYLINDRICAL HEAD, D84AM

$

$

Not available

6

Gravely 00683200

PLUG SOCKET, D72577 12/7A

$

$

Not available

7

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00690600

SWITCH

$

$

Not available

9

Gravely 00862300

COVER

$

$

Not available

10

Gravely 08621900

BOLT, HEX, D933 M 8X 12

$

$

Not available

11

Gravely 08605800

WASHER, M8

$

$

Not available

12

Gravely 00683300

HEXAGON BOLT, D933 M 6X 16

$

$

Not available

13

Gravely 00683400

REGULATOR, 691.185

$

$

Not available

14

Gravely 08620600

WASHER, M6

$

$

Not available

15

Gravely 08608900

NUT, HEX D934 M6

$

$

Not available

16

Gravely 08675000

LOCK WASHER, D6798A M 6

$

$

Not available

17

Gravely 00861400

HEXAGON BOLT, D933 M 6X 20

$

$

Not available

18

Gravely 08637500

15A, FUSE

$

$

Not available

19

Gravely 00680100

DISC WHEEL

$264.99

$

Usually ships in 4-12 days

0

20

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available

21

Gravely 00862400

BRACKET

$

$

Not available

22

Gravely 08690700

BATTERY, RAPID

$699.99

$

Usually ships in 4-12 days

0

23

Gravely 00862500

HEXAGON BOLT, D933 M 5X 12

$

$

Not available

24

Gravely 08614200

WASHER, D125 5.3X10X1

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 00862600

BOW, FASTENER

$

$

Not available

26

Gravely 00862700

TRUSS HEAD SCREW, D603 M5X40

$

$

Not available

27

Gravely 08696800

SOLENOID STARTER

$

$

Not available

28

Gravely 00862800

HEXAGON NUT, UNC 1/4"

$

$

Not available

29

Gravely 00862900

BATTERY SUPPORT

$

$

Not available

30

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

31

Gravely 00863600

WASHER, D9021 8,4 X25X2

$

$

Not available

32

Gravely 08622400

ARM. DIFF LOCK ACTUATING

$

$

Not available

33

Gravely 00863700

ELECTRICAL STARTER, 691.564

$

$

Not available

34

Gravely 00690000

CAP

$28.99

$

Usually ships in 4-12 days

0

35

Gravely 00683900

CABLE BLACK

$43.99

$

Usually ships in 4-12 days

0

36

Gravely 00684000

CABLE RED

$

$

Not available

37

Gravely 00863800

CABLE

$

$

Not available

38

Gravely 08696900

HARNESS, WIRING

$

$

Not available
