985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Electrical Schematics Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

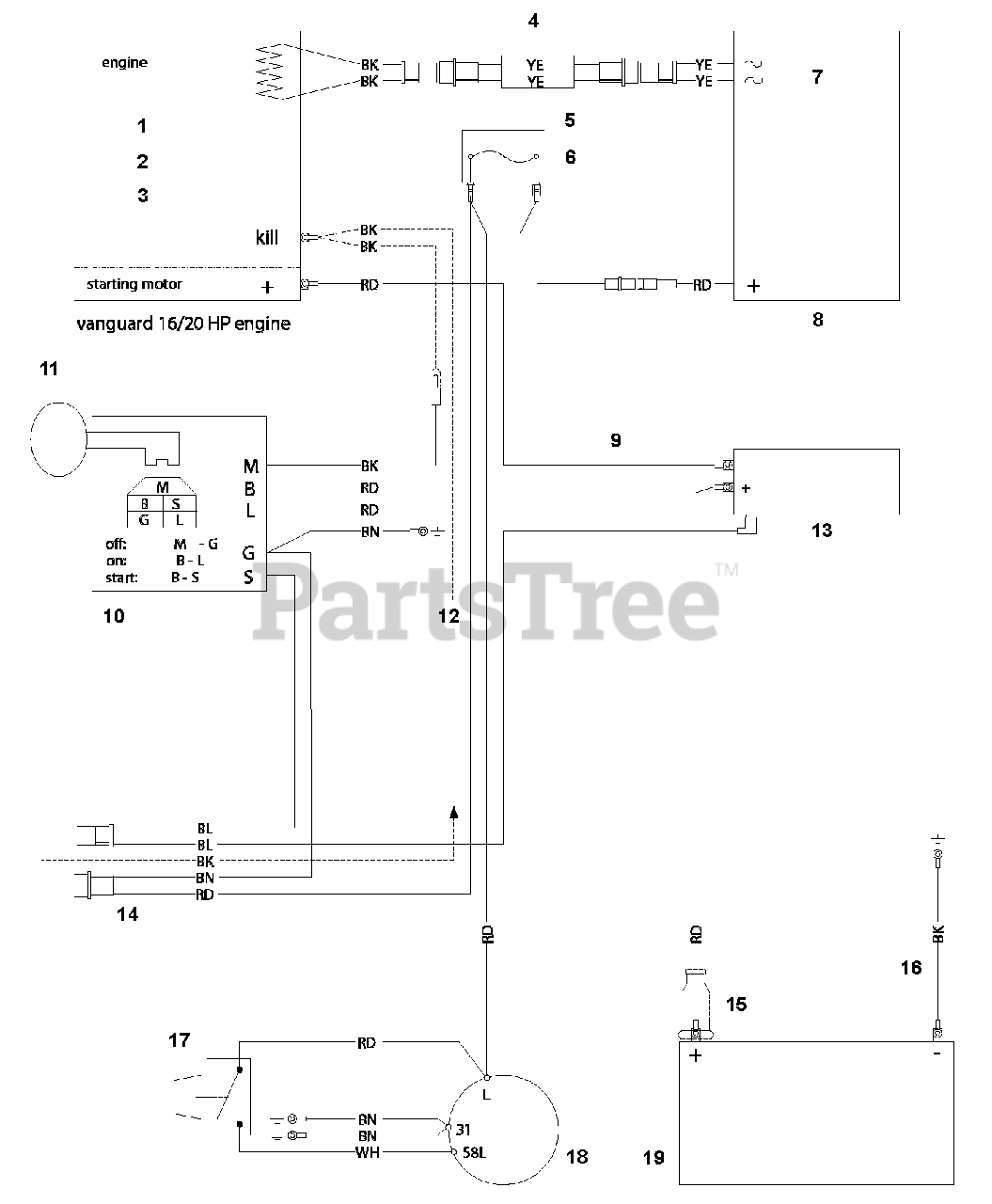

Electrical Schematics Parts Diagram

  • Title

1

Gravely 00864400

ALTERNATOR

$

$

Not available

2

Gravely 00864500

FLYWHEEL 16HP

$

$

Not available

3

Gravely 00864600

FLYWHEEL

$

$

Not available

4

Gravely 00863800

CABLE

$

$

Not available

5

Gravely 00690100

FUSE BOX

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 08637500

15A, FUSE

$

$

Not available

7

Gravely 00864700

VOLTAGE REGULATOR

$

$

Not available

8

Gravely 00683400

REGULATOR, 691.185

$

$

Not available

9

Gravely 00684000

CABLE RED

$

$

Not available

10

Gravely 08697200

ASSY, STARTER SWITCH

$69.99

$

Usually ships in 4-12 days

0

11

Gravely 08697300

ASSY, KEY

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 00864300

CABLE HARNESS

$

$

Not available

13

Gravely 08696800

SOLENOID STARTER

$

$

Not available

14

Gravely 08696900

HARNESS, WIRING

$

$

Not available

15

Gravely 00690000

CAP

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 00683900

CABLE BLACK

$45.99

$

Usually ships in 4-12 days

0

17

Gravely 00690600

SWITCH

$

$

Not available

18

Gravely 00683200

PLUG SOCKET, D72577 12/7A

$

$

Not available

19

Gravely 08690700

BATTERY, RAPID

$730.99

$

Usually ships in 4-12 days

0
