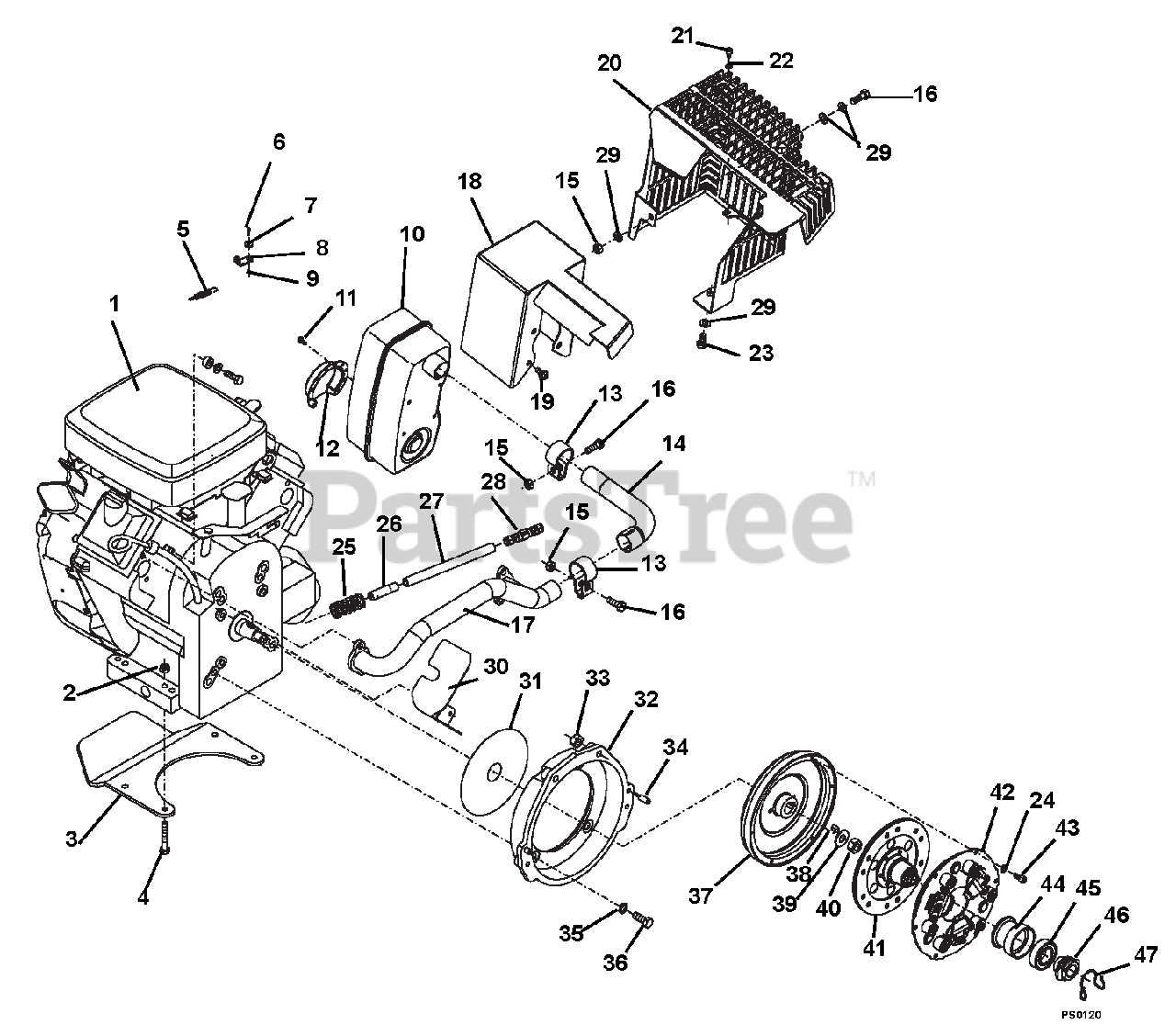

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 00856300

ENGINE

$

$

Not available

2

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

3

Gravely 08667400

PLATE, GUARD

$

$

Not available

4

Gravely 08667500

BOLT, HEX, D931 M 8X 45

$

$

Not available

5

Gravely 00856400

SPRING TENSION, D912 M 2X 10

$

$

Not available

6

Gravely 00856500

SCREW

$

$

Not available

7

Gravely 00856600

SUPPORT

$

$

Not available

8

Gravely 08669300

SHACKLE

$

$

Not available

9

Gravely 00856700

HEXAGON NUT, D934 M 2

$

$

Not available

10

Gravely 00856800

SILENCER, 498984

$

$

Not available

11

Gravely 00856900

SCREW

$

$

Not available

12

Gravely 00682600

DEFLECTOR, 393761

$

$

Not available

13

Gravely 00857000

CLAMP

$

$

Not available

14

Gravely 00857100

EXHAUST PIPE

$

$

Not available

15

Gravely 08605700

NUT, HEX D934 M8

$

$

Not available

16

Gravely 08635100

BOLT, HEX, D933 M 8X 25

$

$

Not available

17

Gravely 00857200

MANIFOLD, 806307

$

$

Not available

18

Gravely 00857300

HEAT PROTECTOR

$

$

Not available

19

Gravely 00857400

SCREW, D7500D M6X16

$

$

Not available

20

Gravely 00857500

HEAT PROTECTOR

$

$

Not available

21

Gravely 00857600

SCREW, D912 M 5X 8

$

$

Not available

22

Gravely 08634300

WASHER, M5

$

$

Not available

23

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available

24

Gravely 00857700

PRESSURE SPRING, 3,2/20X49,5

$

$

Not available

25

Gravely 00857800

VENTILATION VALVE

$

$

Not available

26

Gravely 00857900

HOSE, 904001 LW 10X14

$

$

Not available

27

Gravely 00858000

NIPPLE, REDUCTION, D1=12

$

$

Not available

28

Gravely 00858100

ADJUSTMENT RING, D705A 8-H8X

$

$

Not available

29

Gravely 08605800

WASHER, M8

$

$

Not available

30

Gravely 00858200

HEAT PROTECTOR

$

$

Not available

31

Gravely 08664700

PLATE, INTERMEDIATE

$

$

Not available

32

Gravely 08664800

ENGINE, FLANGE

$

$

Not available

33

Gravely 08616100

NUT, LOCK, D934 M10

$

$

Not available

34

Gravely 08664900

PIN, STRAIGHT, BN 855 8-H8X 20

$

$

Not available

35

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

36

Gravely 08665100

BOLT, HEX, UNC 3/8"X1"

$

$

Not available

37

Gravely 08665200

FLYWHEEL

$

$

Not available

38

Gravely 08664600

KEY, FEATHER, D6885A 6X 6X 16

$

$

Not available

39

Gravely 08604600

WASHER, M12

$

$

Not available

40

Gravely 00858300

HEXAGON NUT, D934 M12X1,25

$

$

Not available

41

Gravely 08665600

DISK, CLUTCH

$

$

Not available

42

Gravely 08692200

PLATE, PRESSURE

$

$

Not available

43

Gravely 08665800

SCREW, D912 M 6X 14

$

$

Not available

44

Gravely 08649400

RING, PRESSURE

$

$

Not available

45

Gravely 08649500

BEARING, BALL, 6005 2RS

$

$

Not available

46

Gravely 00858400

PRESSURE RING

$

$

Not available

47

Gravely 00835800

SPRING, LOCK

$

$

Not available
