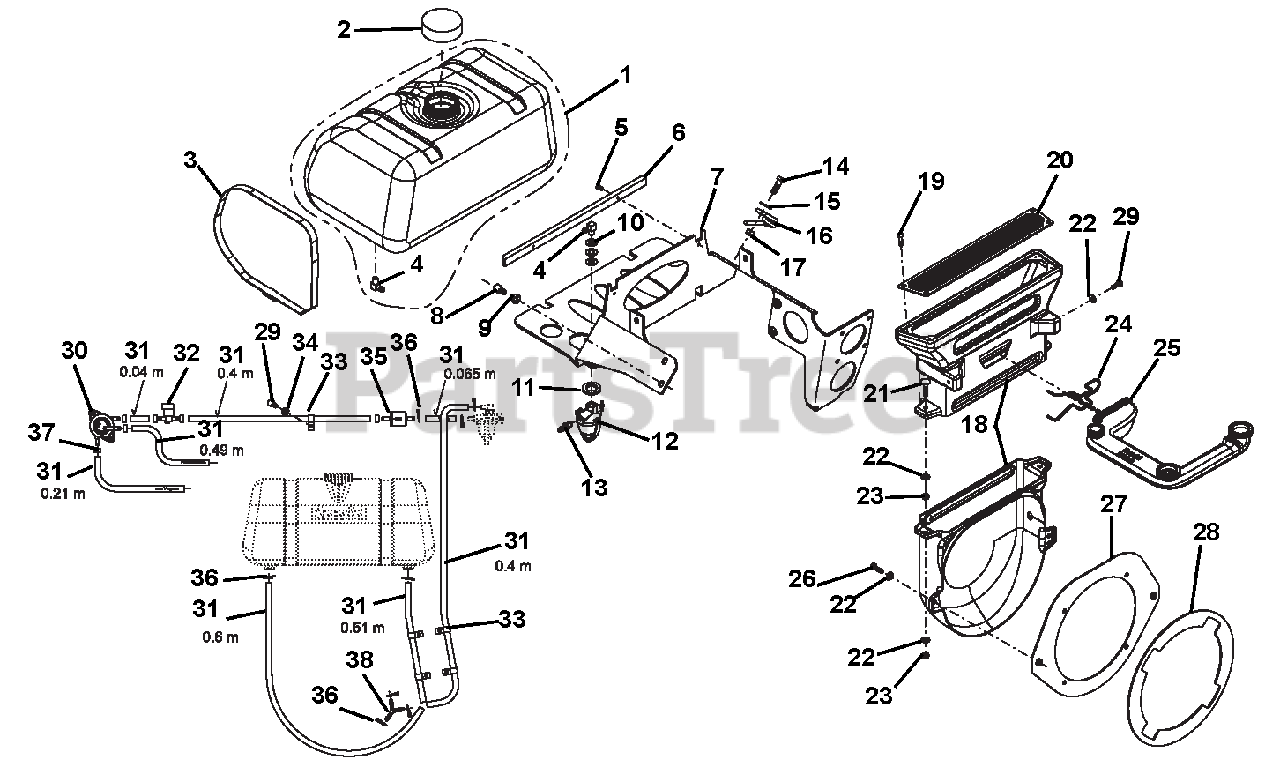

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Fuel Tank And Pump Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Fuel Tank And Pump Parts Diagram

  • Title

1

Gravely 00858500

FUEL TANK, INKL. POS. 4

Note: (Includes item 4)

$

$

Not available

2

Gravely 08692400

CAP, FUEL

$

$

Not available

3

Gravely 00858600

CLAMP

$

$

Not available

4

Gravely 00858700

CONNECTOR

$

$

Not available

5

Gravely 00858800

COUNTERSUNK BOLT, D7991 M 5X

$

$

Not available

6

Gravely 00858900

BASE, PLASTIC

$

$

Not available

7

Gravely 00859000

FUEL GAUGE

$

$

Not available

8

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

9

Gravely 08605800

WASHER, M8

$

$

Not available

10

Gravely 00859100

BELL WASHER, D2093B 20X10,2

$

$

Not available

11

Gravely 00859200

WASHER, D1440 20X 32X 4

$

$

Not available

12

Gravely 00859300

GASOLINE FILTER

$

$

Not available

13

Gravely 08666600

CONNECTOR, 495.194

$

$

Not available

14

Gravely 00859400

HEXAGON BOLT, D933 M 8X 25

$

$

Not available

15

Gravely 08616300

WASHER, M 8

$

$

Not available

16

Gravely 00859500

HOLDER

$

$

Not available

17

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

18

Gravely 00859600

CHANNEL ASSY., 20 PS

$

$

Not available

19

Gravely 00859700

OVAL HEAD SCREW, D7981C 6,3X

$

$

Not available

20

Gravely 00859800

GRATING

$

$

Not available

21

Gravely 00859900

SCREW, BN 289 M6X30

$

$

Not available

22

Gravely 08604900

WASHER, M6

$

$

Not available

23

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

24

Gravely 00861100

CRAMP

$

$

Not available

25

Gravely 00861200

PIPE, 228.6X253.31X49.5

$

$

Not available

26

Gravely 00861400

HEXAGON BOLT, D933 M 6X 20

$

$

Not available

27

Gravely 00861600

PLATE

$

$

Not available

28

Gravely 00861700

SPACER PLATE

$

$

Not available

29

Gravely 00683300

HEXAGON BOLT, D933 M 6X 16

$

$

Not available

30

Gravely 08665900

FUEL, PUMP, 808.856

$

$

Not available

31

Gravely 08646800

HOSE

$

$

Not available

32

Gravely 00861800

FUEL COCK, GASOLINE SHUT-OFF,

$

$

Not available

33

Gravely 00861900

MOUNTING CLIP, 12X1

$

$

Not available

34

Gravely 08620600

WASHER, M6

$

$

Not available

35

Gravely 00682500

GASOLINE FILTER, BRIGGS

$15.99

$

Usually ships in 4-12 days

0

36

Gravely 08646700

HOSE, CLAMP

$

$

Not available

37

Gravely 08666400

CLAMP, 93.053

$

$

Not available

38

Gravely 08692500

FITTING, Y

$

$

Not available
