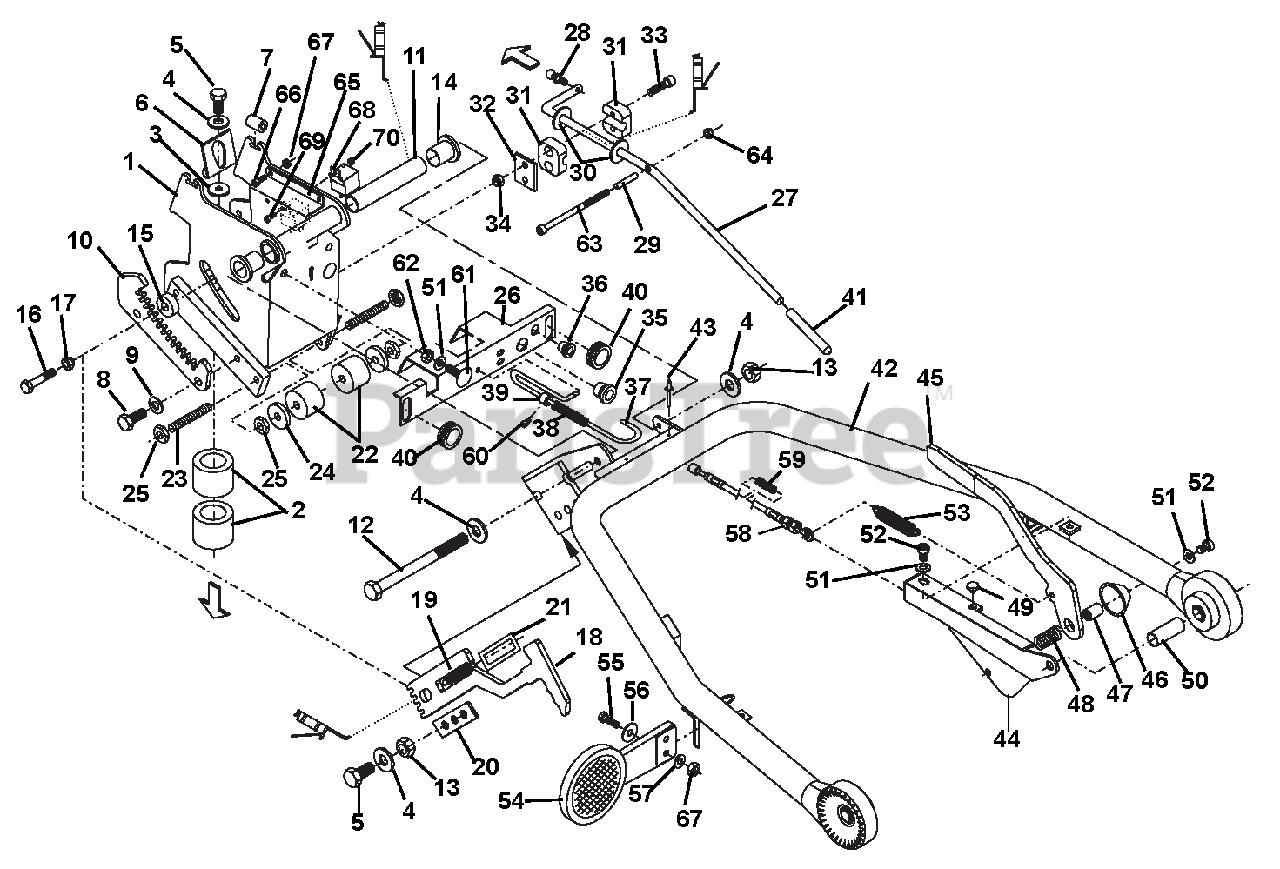

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Handlebar Parts Diagram

  • Title

1

Gravely 00848600

SUPPORT HANDLE ASSY., INKL. PO

Note: (Includes Item 2)

$

$

Not available

2

Gravely 08670500

SILENTBLOC

$

$

Not available

3

Gravely 00828600

WASHER

$

$

Not available

4

Gravely 00828700

FRICTION WASHER

$

$

Not available

5

Gravely 08672000

BOLT, HEX, D933 M12X 30

$

$

Not available

6

Gravely 00848700

FISH-PLATE

$

$

Not available

7

Gravely 08646800

HOSE

$

$

Not available

8

Gravely 00848800

HEXAGON BOLT, D933 M10X 25

$

$

Not available

9

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

10

Gravely 00848900

SEGMENT

$

$

Not available

11

Gravely 00849000

SHAFT

$

$

Not available

12

Gravely 00849100

SCREW, CYLINDER, D912 M12X170

$

$

Not available

13

Gravely 00849200

HEXAGON NUT, D6915 M12

$

$

Not available

14

Gravely 00849300

BUSH, 20/23/3021,5

$

$

Not available

15

Gravely 00849400

GUIDE

$

$

Not available

16

Gravely 08677300

SCREW, D912 M 8X 40A

$

$

Not available

17

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

18

Gravely 00849500

LEVER

$

$

Not available

19

Gravely 00849600

SPRING TENSION

$

$

Not available

20

Gravely 00849700

PLATE, BELT GUIDE

$

$

Not available

21

Gravely 00849800

SLIDING WASHER

$

$

Not available

22

Gravely 00849900

DAMPER

$

$

Not available

23

Gravely 00830400

THREADED PIN, D913 M10X 70

$

$

Not available

24

Gravely 00832900

WASHER, 11,5X 35X 6

$

$

Not available

25

Gravely 08663000

NUT, HEX, D439B M10

$

$

Not available

26

Gravely 00850600

DASH PANEL ASSY.

$

$

Not available

27

Gravely 00850700

CONTROL ROD

$

$

Not available

28

Gravely 00836200

JOINT BALL PIN, D71803 10 A

$

$

Not available

29

Gravely 00850800

DOWEL PIN, 6X 40

$

$

Not available

30

Gravely 00850900

RING, IDLER, SP 220

$

$

Not available

31

Gravely 00851000

CLAMP, PAAR

$

$

Not available

32

Gravely 00851100

PLATE, WELD

$

$

Not available

33

Gravely 08624900

SCREW,D912 M6X35

$

$

Not available

34

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

35

Gravely 00851200

COLLAR

$

$

Not available

36

Gravely 08677900

BUSHING

$

$

Not available

37

Gravely 00851300

BAR, LOCK

$

$

Not available

38

Gravely 00851400

PRESSURE SPRING, 1,25X 8X 69

$

$

Not available

39

Gravely 08608500

HEXAGON BOLT, D931 M8X70

$

$

Not available

40

Gravely 08621600

GROMMET

$

$

Not available

41

Gravely 08678300

KNOB, PLASTIC

$

$

Not available

42

Gravely 00851500

HANDLE

$

$

Not available

43

Gravely 08691500

RIVET, BLIND 4.8 X 10.9

$

$

Not available

44

Gravely 00851600

CONTROL GUIDE RIGHT

$

$

Not available

45

Gravely 00851700

LEVER, BRAKE

$

$

Not available

46

Gravely 08682500

SPACER

$

$

Not available

47

Gravely 08682800

BUSH WI/TREAD

$

$

Not available

48

Gravely 08682700

SPRING, PRESSURE

$

$

Not available

49

Gravely 08683400

STOP, PRESSURE SWITCH

$

$

Not available

50

Gravely 00851800

COLLAR

$

$

Not available

51

Gravely 08605800

WASHER, M8

$

$

Not available

52

Gravely 08669000

SCREW, ISO7380 M 8X 12

$

$

Not available

53

Gravely 08622800

SPRING, TENSION

$

$

Not available

54

Gravely 00851900

REAR REFLECTOR, L 140 X D 92 /

$

$

Not available

55

Gravely 00852400

HEXAGON BOLT, D933 M 5X 20

$

$

Not available

56

Gravely 00852500

WASHER, D440 7X 22X 2

$

$

Not available

57

Gravely 08631900

WASHER, M6

$

$

Not available

58

Gravely 00852600

BRAKE CABLE

$

$

Not available

59

Gravely 00852700

SPRING TENSION

$

$

Not available

60

Gravely 00841500

SCREW, CYLINDER, D912 M 4X 5

$

$

Not available

61

Gravely 00852800

TRUSS HEAD SCREW, D603 M8X20

$

$

Not available

62

Gravely 08605700

NUT, HEX D934 M8

$

$

Not available

63

Gravely 00852900

SCREW, CYLINDER, D912 M3X 50

$

$

Not available

64

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

65

Gravely 00853100

BRACKET

$

$

Not available

66

Gravely 08640200

SCREW, D912 M 6X 15

$

$

Not available

67

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

68

Gravely 08629000

RELAY

$76.99

$

Usually ships in 4-12 days

0

69

Gravely 08625300

SCREW, 912 M5X12

$

$

Not available

70

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0
