985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Left Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

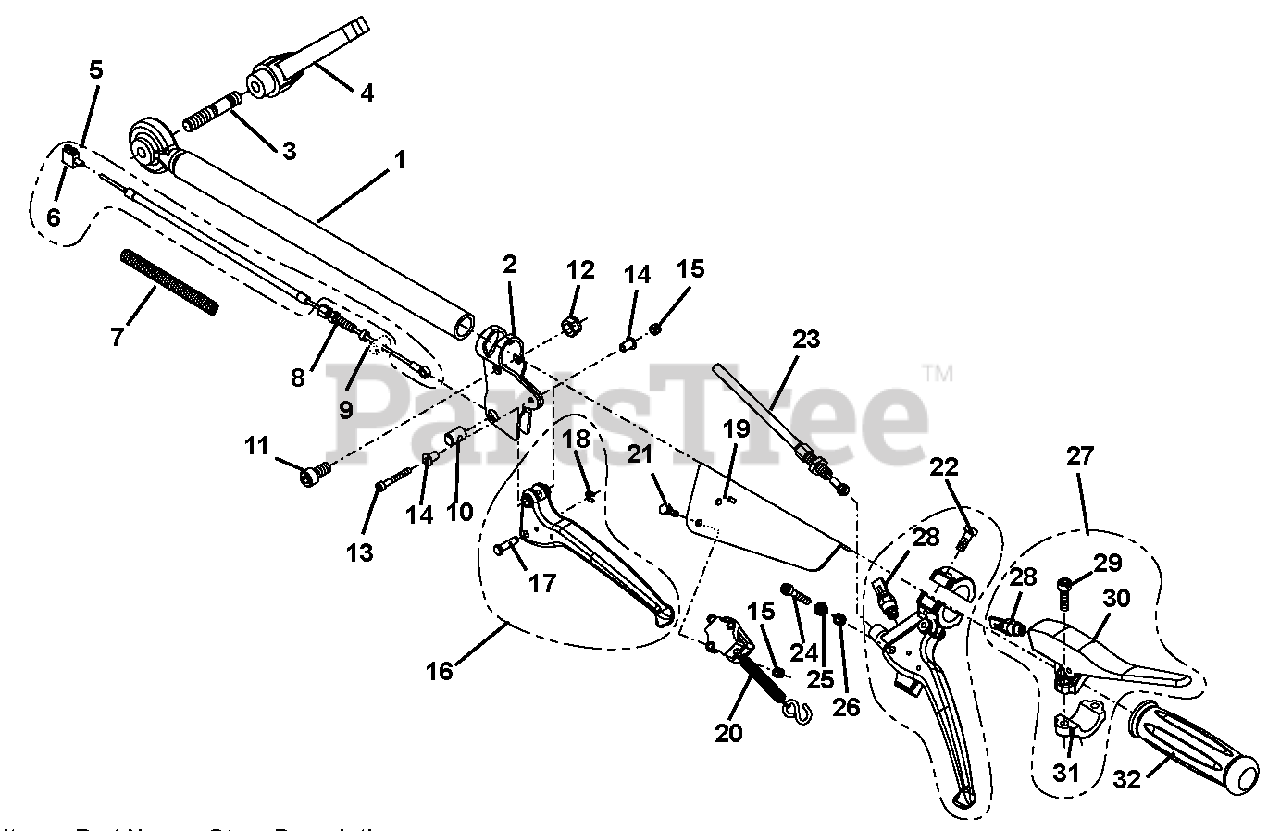

Handlebar Left Parts Diagram

  • Title

1

Gravely 00853500

Handlebar Extension

$

$

Not available

2

Gravely 08682000

Guide, Lever

$

$

Not available

3

Gravely 00854500

Threaded Bolt, D939 M10FO x 45

$

$

Not available

4

Gravely 00853600

Clamping Lever, L= 80 M10 x 20

$

$

Not available

5

Gravely 00853800

Cable Pull, INKL. (Includes item 5)

Note: (Includes item 5)

$

$

Not available

6

Gravely 08669500

Nipple, 2 MM

$

$

Not available

7

Gravely 00852700

Spring Tension

$

$

Not available

8

Gravely 00853900

Set Collar, M6 x 36

$

$

Not available

9

Gravely 00854000

Distance Ring

$

$

Not available

10

Gravely 00854100

Shaft, Stay

$

$

Not available

11

Gravely 08644000

Screw, D912 Metric 8 x 16

$

$

Not available

12

Gravely 08622000

Nut, Lock, D985 Metric 8

$

$

Not available

13

Gravely 08681800

Screw, D912 Metric 4 x 30

$

$

Not available

14

Gravely 08681700

Bushing

$

$

Not available

15

Gravely 08681600

Nut, Lock, D985 Metric 4

$

$

Not available

16

Gravely 00854600

Hand Lever, (Includes items 17 - 18)

Note: (Includes items 17 - 18)

$

$

Not available

17

Gravely 08681900

Bolt

$

$

Not available

18

Gravely 08694600

Washer, Lock

$

$

Not available

19

Gravely 00854700

Holder

$

$

Not available

20

Gravely 00854800

Switch

$

$

Not available

21

Gravely 00854900

Hex Bolt, D933 Metric 4 x 16

$

$

Not available

22

Gravely 00855000

Lever Assembly (Includes item 28)

Note: (Includes item 28)

$

$

Not available

23

Gravely 08692800

Assembly, Cable

$

$

Not available

24

Gravely 00855100

Screw, Cylindrical Head

$

$

Not available

25

Gravely 00855200

Bushing

$

$

Not available

26

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 08697000

Dead Mans Lever Assembly

$

$

Not available

28

Gravely 08693900

Switch

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 08618100

Screw

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 08697400

Lever, Emergency

$325.99

$

Usually ships in 4-12 days

0

31

Gravely 00685000

Clamp

$

$

Not available

32

Gravely 08627000

Rubber, Handle

$22.99

$

Usually ships in 4-12 days

0
