985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Left Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

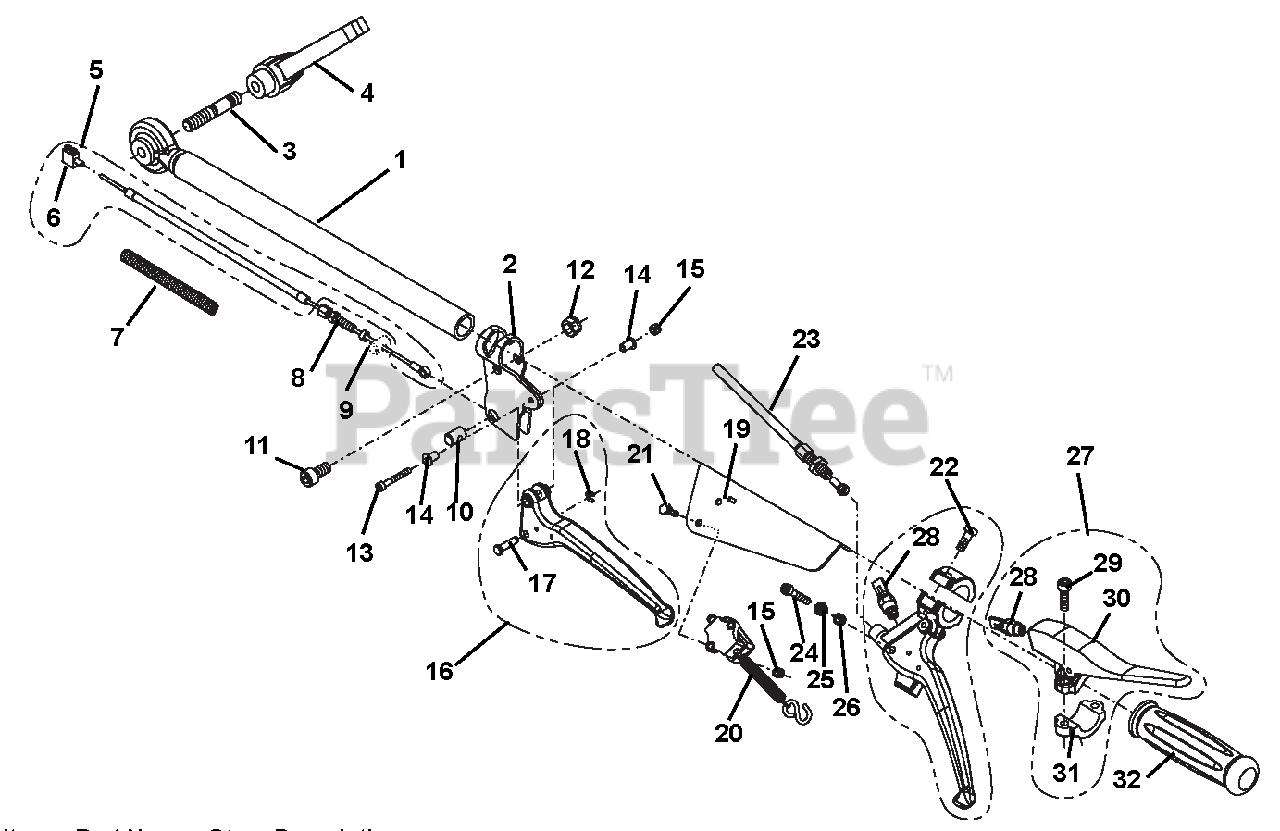

Handlebar Left Parts Diagram

  • Title

1

Gravely 00853500

HANDLEBAR EXTENSION

$

$

Not available

2

Gravely 08682000

GUIDE, LEVER

$

$

Not available

3

Gravely 00854500

THREADED BOLT, D939 M10FOX 45

$

$

Not available

4

Gravely 00853600

CLAMPING LEVER, L= 80 M10X20

$

$

Not available

5

Gravely 00853800

CABLE PULL, INKL. POS. 5

Note: (Includes item 5)

$

$

Not available

6

Gravely 08669500

NIPPLE, 2 MM

$

$

Not available

7

Gravely 00852700

SPRING TENSION

$

$

Not available

8

Gravely 00853900

SET COLLAR, M6X36

$

$

Not available

9

Gravely 00854000

DISTANCE RING

$

$

Not available

10

Gravely 00854100

SHAFT, STAY

$

$

Not available

11

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

12

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

13

Gravely 08681800

SCREW, D912 M 4X 30

$

$

Not available

14

Gravely 08681700

BUSH

$

$

Not available

15

Gravely 08681600

NUT, LOCK, D985 M 4

$

$

Not available

16

Gravely 00854600

HAND LEVER, POS. 17 + 18

Note: (Includes items 17 - 18)

$

$

Not available

17

Gravely 08681900

BOLT

$

$

Not available

18

Gravely 08694600

WASHER, LOCK

$

$

Not available

19

Gravely 00854700

HOLDER

$

$

Not available

20

Gravely 00854800

SWITCH

$

$

Not available

21

Gravely 00854900

HEXAGON BOLT, D933 M 4X 16

$

$

Not available

22

Gravely 00855000

LEVER ASSY., INKL. POS. 28

Note: (Includes item 28)

$

$

Not available

23

Gravely 08692800

ASSY, CABLE

$

$

Not available

24

Gravely 00855100

SCREW, CYLINDRICAL HEAD, D7984

$

$

Not available

25

Gravely 00855200

BUSH

$

$

Not available

26

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 08697000

DEAD MANS LEVER ASSY

$

$

Not available

28

Gravely 08693900

SWITCH

$

$

Not available

29

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 08697400

LEVER, EMERGENCY

$345.99

$

Usually ships in 4-12 days

0

31

Gravely 00685000

CLAMP

$

$

Not available

32

Gravely 08627000

RUBBER, HANDLE

$23.99

$

Usually ships in 4-12 days

0
