985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydraulic Pump Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

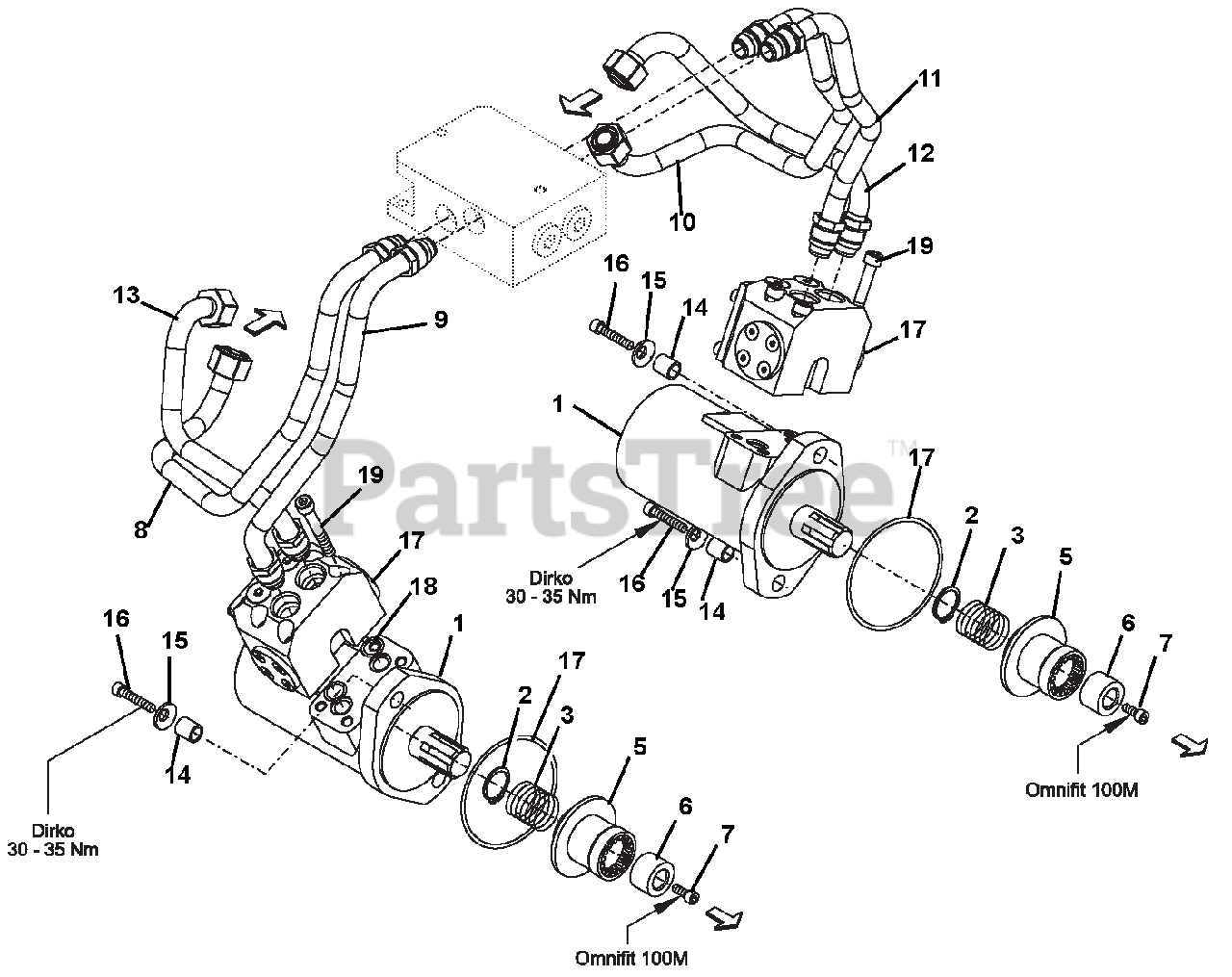

Hydraulic Pump Parts Diagram

  • Title

1

Gravely 00845400

MOTOR, HYDRAULIC, 157CCM

$

$

Not available

2

Gravely 00834200

CIRCLIP, D471 24 1,20

$

$

Not available

3

Gravely 00834700

PRESSURE SPRING

$

$

Not available

4

Gravely 00845500

SLEEVE

$

$

Not available

5

Gravely 00845600

BUSH

$

$

Not available

6

Gravely 00845700

SCREW, 1/4X5/8" UNC

$

$

Not available

7

Gravely 00845800

PIPE, HYDRAULIC ASSY.

$

$

Not available

8

Gravely 00845900

PIPE, HYDRAULIC ASSY.

$

$

Not available

9

Gravely 00846000

PIPE, HYDRAULIC ASSY.

$

$

Not available

10

Gravely 00846100

PIPE, HYDRAULIC ASSY.

$

$

Not available

11

Gravely 00846200

PIPE, HYDRAULIC ASSY.

$

$

Not available

12

Gravely 00846300

PIPE, HYDRAULIC ASSY.

$

$

Not available

13

Gravely 00846400

BUSH

$

$

Not available

14

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

15

Gravely 08649000

SCREW, D912 M10X 30

$

$

Not available

16

Gravely 00846500

O-RING, 78X 3

$

$

Not available

17

Gravely 00846600

VALVE CONTROL

$

$

Not available

18

Gravely 00846700

O-RING, D3770 12,37X2,62

$

$

Not available

19

Gravely 00846800

BOLT, CYLINDRICAL, D912M8X 60

$

$

Not available
