985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O Case Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

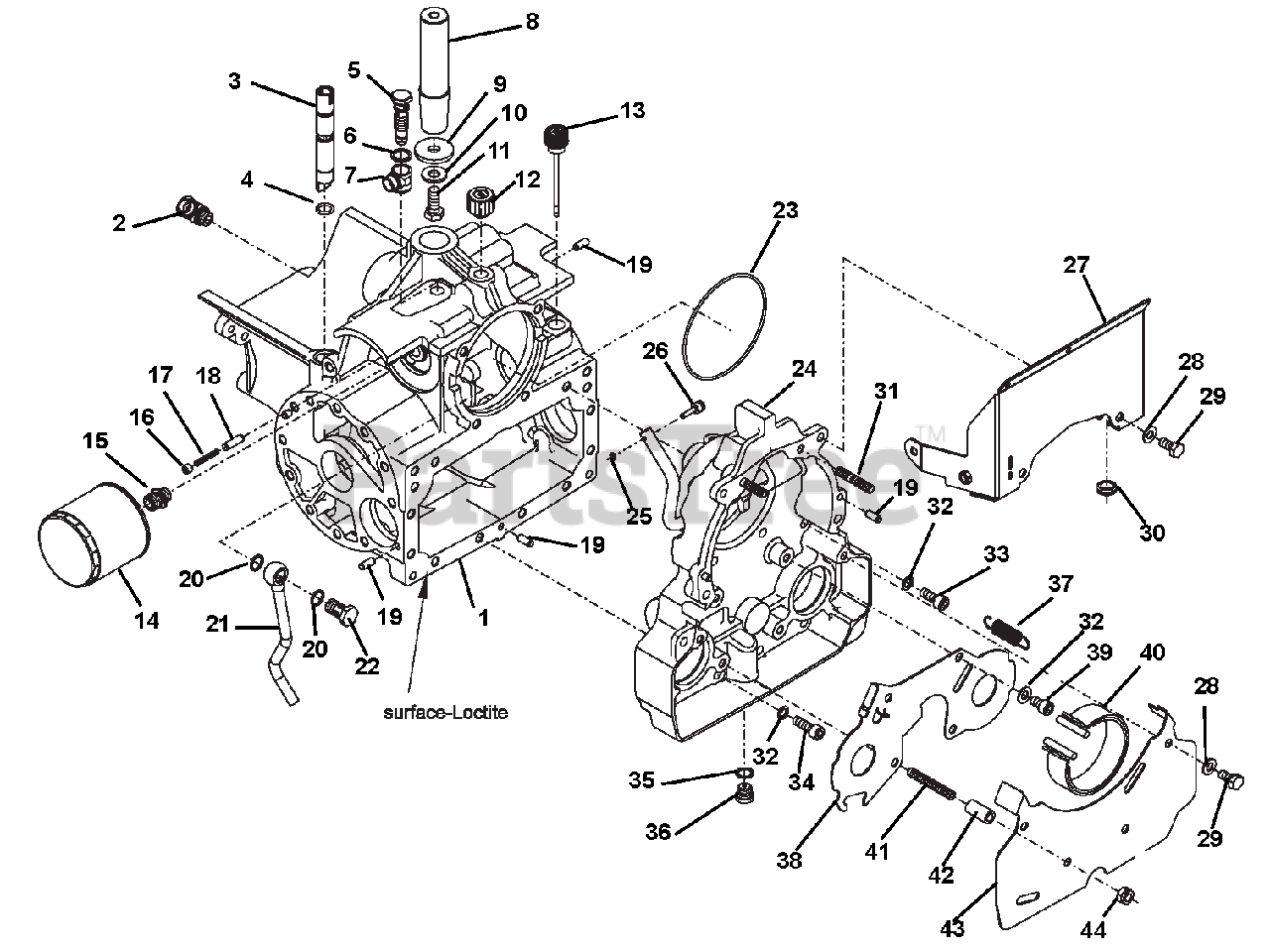

P.T.O Case Parts Diagram

  • Title

1

Gravely 00827800

GEARBOX CASING

$

$

Not available

2

Gravely 00827900

SWIVELLING SCREW-FITTING, XSWV

$

$

Not available

3

Gravely 00828000

STAY SHIFT

$

$

Not available

4

Gravely 00828100

WARNING TRIANGLE, D3770 15,00X

$

$

Not available

5

Gravely 00828200

BANJO BOLT, M16X1,5 SW22

$

$

Not available

6

Gravely 00828300

JOINT RING, D7603A 18X24 CU

$

$

Not available

7

Gravely 00828400

HOUSING

$

$

Not available

8

Gravely 08662900

BEARING, BALL, NJ 303E

$

$

Not available

9

Gravely 00828600

WASHER

$

$

Not available

10

Gravely 00828700

FRICTION WASHER

$

$

Not available

11

Gravely 08672000

BOLT, HEX, D933 M12X 30

$

$

Not available

12

Gravely 00828800

REPLENISHING SCREW, M16X 1,5

$

$

Not available

13

Gravely 00828900

SCREW, LOCK

$

$

Not available

14

Gravely 08663400

SUCTION, FILTER

$

$

Not available

15

Gravely 00829000

CONNECTOR, 3/4/M16X1,5

$

$

Not available

16

Gravely 00829100

THREADED PIN, D913 M10X 8

$

$

Not available

17

Gravely 08642400

SPRING, PRESSURE

$

$

Not available

18

Gravely 08642300

PIN, LOCK

$

$

Not available

19

Gravely 08664900

PIN, STRAIGHT, BN 855 8-H8X 20

$

$

Not available

20

Gravely 08642300

PIN, LOCK

$

$

Not available

21

Gravely 00829200

PIPE, SUCTION

$

$

Not available

22

Gravely 00829300

BANJO BOLT, D7643 NW10 A

$

$

Not available

23

Gravely 00829400

O-RING 129.5X3.0 D3770

$

$

Not available

24

Gravely 00829500

HOUSING

$

$

Not available

25

Gravely 08694600

WASHER, LOCK

$

$

Not available

26

Gravely 00839600

BOLT

$

$

Not available

27

Gravely 00829700

COVER PLATE

$

$

Not available

28

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

29

Gravely 00829800

HEXAGON BOLT, D933 M10X 20

$

$

Not available

30

Gravely 00829900

BUSHING SOCKET, N553 14X18X2

$

$

Not available

31

Gravely 08639700

BOLT, STUD D835 M10FOX35

$

$

Not available

32

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

33

Gravely 00830000

SCREW, D912 M10X 25

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 08649000

SCREW, D912 M10X 30

$

$

Not available

35

Gravely 08647800

RING, JOINT, D7603A 16X20 CU

$

$

Not available

36

Gravely 08647900

DRAIN, PLUG, D908 M 16X1.5MG

$

$

Not available

37

Gravely 08692600

SPRING, TENSION

$

$

Not available

38

Gravely 00830100

SUPPORT BEARING

$

$

Not available

39

Gravely 00830200

SCREW, D912 M10X 16

$

$

Not available

40

Gravely 00830300

BRAKE BAND

$

$

Not available

41

Gravely 00830400

THREADED PIN, D913 M10X 70

$

$

Not available

42

Gravely 00830500

SUPPORT TUBE

$

$

Not available

43

Gravely 00830600

PLATE

$

$

Not available

44

Gravely 08628600

NUT, LOCK, D985 M10

$

$

Not available
