985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O. Shaft Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

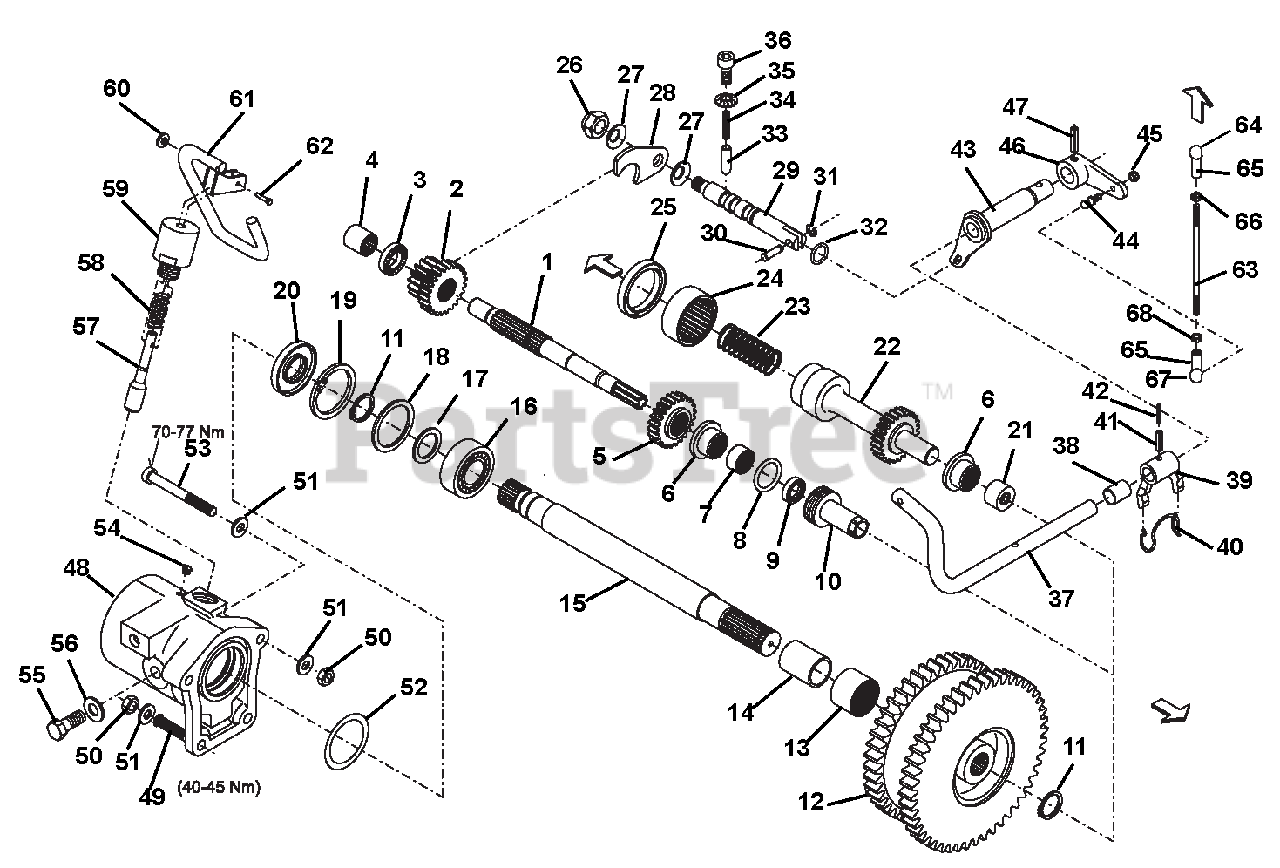

P.T.O. Shaft Parts Diagram

  • Title

1

Gravely 00833300

SHAFT, CLUTCH

$

$

Not available

2

Gravely 08642100

GEAR, CLUTCH, Z = 17 / 22

$

$

Not available

3

Gravely 00833400

BALL BEARING, AXZ 6 17 30,4

$

$

Not available

4

Gravely 00833500

NEEDLE BEARING, BK 1622

$

$

Not available

5

Gravely 00833600

PINION, Z=22

$

$

Not available

6

Gravely 00833700

BALL BEARING, RAX 718

$

$

Not available

7

Gravely 00833800

NEEDLE BEARING, HK 1812

$

$

Not available

8

Gravely 00833900

O-RING, D3770 27X 3

$

$

Not available

9

Gravely 00834000

OIL SEAL, 16X 24X 6 B1

$

$

Not available

10

Gravely 00834100

BUSH, GUIDE

$

$

Not available

11

Gravely 00834200

CIRCLIP, D471 24 1,20

$

$

Not available

12

Gravely 08647200

PINION, DOUBLE, Z=83/88

$

$

Not available

13

Gravely 08691700

BEARING, NEEDLE HK 3026

$

$

Not available

14

Gravely 08691800

RING, INNER IR 25X30X38.5

$

$

Not available

15

Gravely 08691900

SHAFT, PTO

$

$

Not available

16

Gravely 08647400

BEARING, BALL, 4205B.TVH

$

$

Not available

17

Gravely 08647100

WASHER, D988 25X 35X2

$

$

Not available

18

Gravely 00834300

SUPPORTING RING, D988 42X

$

$

Not available

19

Gravely 00834400

CIRCLIP, D472 52 2,00

$

$

Not available

20

Gravely 08692000

SEAL, OIL 25X52X7 AS

$

$

Not available

21

Gravely 00834500

NEEDLE BEARING, BK 1816

$

$

Not available

22

Gravely 00834600

DRIVE SHAFT, Z = 26

$

$

Not available

23

Gravely 00834700

PRESSURE SPRING

$

$

Not available

24

Gravely 00834800

NEEDLE BEARING, HK 4520

$

$

Not available

25

Gravely 00834900

OIL SEAL, 42X 55X 8 AS

$

$

Not available

26

Gravely 08642000

NUT, LOCK, D980V M12

$

$

Not available

27

Gravely 08607800

WASHER

$

$

Not available

28

Gravely 00835000

GEAR SHIFT

$

$

Not available

29

Gravely 00835100

CONTROL ROD

$

$

Not available

30

Gravely 00835200

PIN

$

$

Not available

31

Gravely 00835300

WASHER DI SICUREZZE, D6799 5

$

$

Not available

32

Gravely 08641600

O-RING, 12.42X 1.78

$

$

Not available

33

Gravely 08642300

PIN, LOCK

$

$

Not available

34

Gravely 08642400

SPRING, PRESSURE

$

$

Not available

35

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

36

Gravely 00835400

SCREW, CYLINDER, D912 M10X 12

$

$

Not available

37

Gravely 00835500

SHAFT CLUTCH

$

$

Not available

38

Gravely 00835600

BEARING SLEEVE, PM 1420 DX

$

$

Not available

39

Gravely 00835700

LEVER, CLUTCH RELEASE

$

$

Not available

40

Gravely 00835800

SPRING, LOCK

$

$

Not available

41

Gravely 00835900

PIN, HEAVY, D1481 5X 20

$

$

Not available

42

Gravely 00836000

PIN, HEAVY, D1481 3X 20

$

$

Not available

43

Gravely 00836100

STAY SHIFT

$

$

Not available

44

Gravely 00836200

JOINT BALL PIN, D71803 10 A

$

$

Not available

45

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

46

Gravely 00836300

LEVER

$

$

Not available

47

Gravely 00836400

PIN HEAVY, ISO 8752 6X30

$3.49

$

Usually ships in 4-12 days

0

48

Gravely 00836500

CASE PTO

$

$

Not available

49

Gravely 00830400

THREADED PIN, D913 M10X 70

$

$

Not available

50

Gravely 00836600

HEXAGON NUT, D6330B M10X15

$

$

Not available

51

Gravely 00836700

FRICTION WASHER, D6796

$

$

Not available

52

Gravely 00836800

O-RING, D3770 50,39X3,55

$

$

Not available

53

Gravely 00836900

SCREW, CYLINDER, D912 M10X 75

$

$

Not available

54

Gravely 00837000

LUBRICATING, D71412B M10 KONIS

$

$

Not available

55

Gravely 00837100

HEXAGON BOLT, D933 M10X 12

$

$

Not available

56

Gravely 00837200

WASHER, M14

$

$

Not available

57

Gravely 08648600

BAR, LOCK

$

$

Not available

58

Gravely 08648500

SPRING, PRESSURE, 1.6/15.1X60

$

$

Not available

59

Gravely 00837300

GUIDE TUBE

$

$

Not available

60

Gravely 08648300

CIRCLIP, BQ-DL5, 5/18/6

$

$

Not available

61

Gravely 08692100

LEVER

$

$

Not available

62

Gravely 08648100

PIN, LOCK, D1444A 5X 25

$

$

Not available

63

Gravely 00837400

ROD, THREADED, M6X177

$

$

Not available

64

Gravely 00837500

PAN, BALL, D71805 10B

$

$

Not available

65

Gravely 00837600

BOW, LOCK, D71805 10S

$

$

Not available

66

Gravely 08608900

NUT, HEX D934 M6

$

$

Not available

67

Gravely 00837700

PAN, BALL, D71805 10B LINKS

$

$

Not available

68

Gravely 00837800

HEXAGON NUT, D934 M6 LI

$

$

Not available
