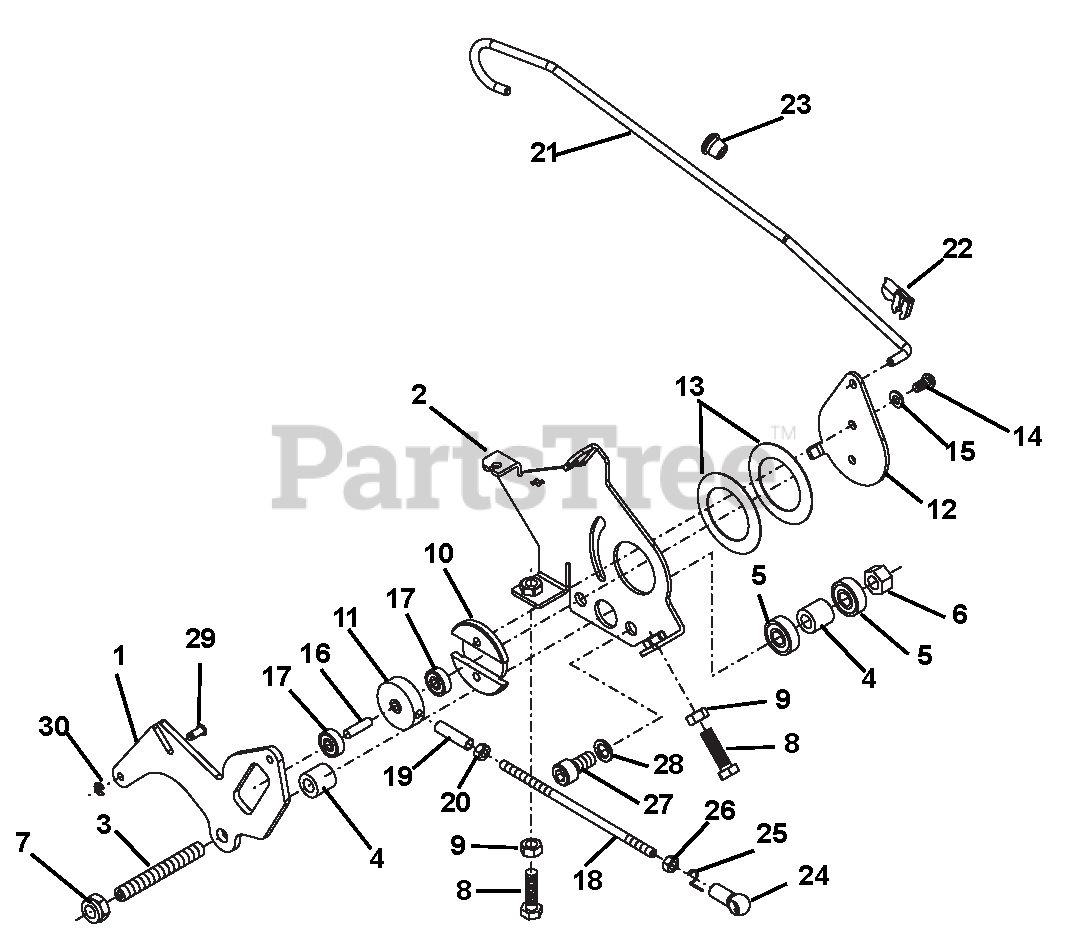

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Reduce Advance Assembly Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Reduce Advance Assembly Parts Diagram

  • Title

1

Gravely 00846900

LEVER, FORWARD

$

$

Not available

2

Gravely 00847000

BEARING PLATE

$

$

Not available

3

Gravely 00847100

STUD, THREADED, D913 M10X 80

$

$

Not available

4

Gravely 00847200

COLLAR

$

$

Not available

5

Gravely 00847300

BALL BEARING, 6000 2RS

$

$

Not available

6

Gravely 00847400

LOCK NUT, D980V M10

$

$

Not available

7

Gravely 08628600

NUT, LOCK, D985 M10

$

$

Not available

8

Gravely 08636400

BOLT, HEX, D933 M 8X 30

$

$

Not available

9

Gravely 08605700

NUT, HEX D934 M8

$

$

Not available

10

Gravely 00847500

PIVOTING BEARING

$

$

Not available

11

Gravely 00847600

WASHER

$

$

Not available

12

Gravely 00847700

PLATE, PIVOTING

$

$

Not available

13

Gravely 00847800

BELL WASHER, 31085 40,5X 61X

$

$

Not available

14

Gravely 08672200

SCREW, ISO7380 M 6X 12

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 08620600

WASHER, M6

$

$

Not available

16

Gravely 00847900

PIN CYLINDRICAL, D6325 M6X 24

$

$

Not available

17

Gravely 00848000

BALL BEARING, 626 2RS

$

$

Not available

18

Gravely 00848100

ROD, THREADED, M6X 155

$

$

Not available

19

Gravely 00848200

DISTANCE SPACER, R 8/0, 75

$

$

Not available

20

Gravely 08608900

NUT, HEX D934 M6

$

$

Not available

21

Gravely 00848300

CONTROL ROD

$

$

Not available

22

Gravely 00848400

FRICTION SPRING, N580 6 SXN-04

$

$

Not available

23

Gravely 08677900

BUSHING

$

$

Not available

24

Gravely 00837700

PAN, BALL, D71805 10B LINKS

$

$

Not available

25

Gravely 00837600

BOW, LOCK, D71805 10S

$

$

Not available

26

Gravely 00837800

HEXAGON NUT, D934 M6 LI

$

$

Not available

27

Gravely 00848500

BOLT, CYLINDRICAL, D912 M10X

$

$

Not available

28

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

29

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

30

Gravely 08694600

WASHER, LOCK

$

$

Not available
