985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Right Hand Handlebar Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

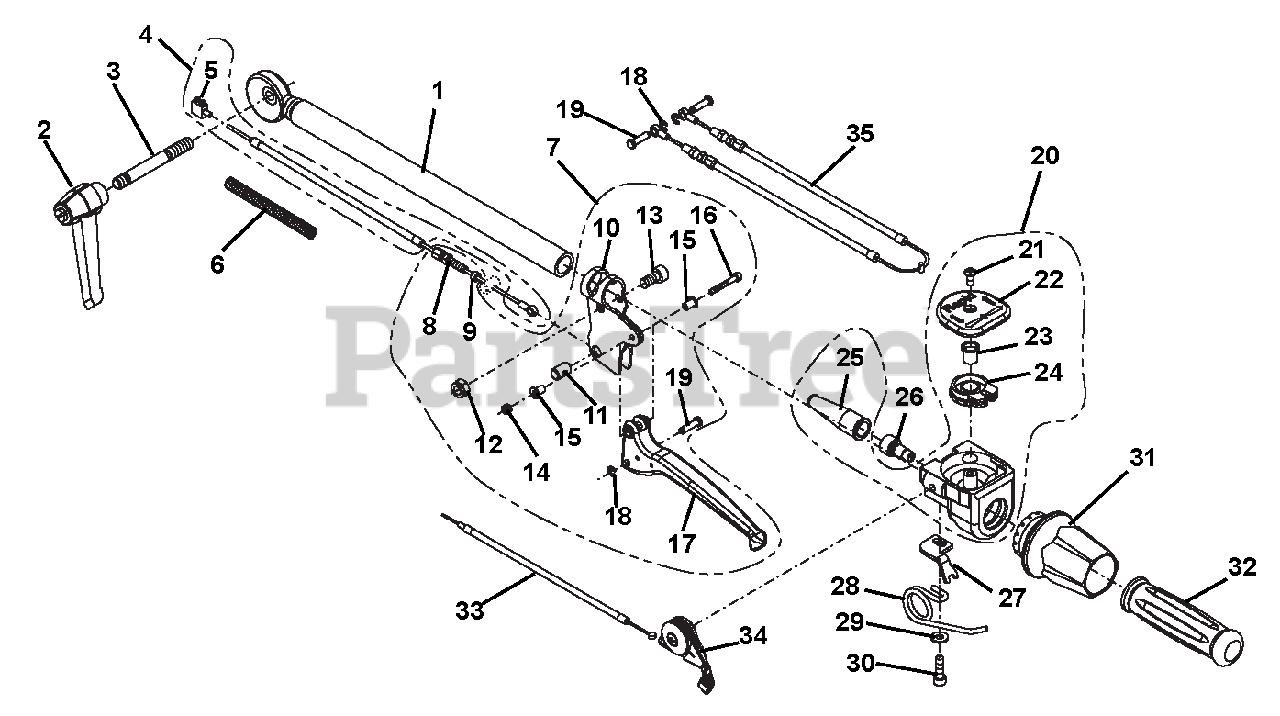

Right Hand Handlebar Parts Diagram

  • Title

1

Gravely 00853500

HANDLEBAR EXTENSION

$

$

Not available

2

Gravely 00853600

CLAMPING LEVER, L= 80 M10X20

$

$

Not available

3

Gravely 00853700

THREADED BOLT, D939 M10FOX 75

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 00853800

CABLE PULL, INKL. POS. 5

Note: (Includes item 5)

$

$

Not available

5

Gravely 08669500

NIPPLE, 2 MM

$

$

Not available

6

Gravely 00852700

SPRING TENSION

$

$

Not available

7

Gravely 08693000

LEVER, ASSY

$

$

Not available

8

Gravely 00853900

SET COLLAR, M6X36

$

$

Not available

9

Gravely 00854000

DISTANCE RING

$

$

Not available

10

Gravely 08682000

GUIDE, LEVER

$

$

Not available

11

Gravely 00854100

SHAFT, STAY

$

$

Not available

12

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

13

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

14

Gravely 08681600

NUT, LOCK, D985 M 4

$

$

Not available

15

Gravely 08681700

BUSH

$

$

Not available

16

Gravely 08681800

SCREW, D912 M 4X 30

$

$

Not available

17

Gravely 08681500

COVER LEFT

$

$

Not available

18

Gravely 08694600

WASHER, LOCK

$

$

Not available

19

Gravely 08681900

BOLT

$

$

Not available

20

Gravely 08680200

MF CONTROL UNIT CPL, POS. 4-8

Note: (Includes items 21 - 25)

$248.99

$

Usually ships in 4-12 days

0

21

Gravely 08626600

SCREW, ISO7380 M5X12/ 10.9

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 08627400

COVER

$69.99

$

Usually ships in 4-12 days

0

23

Gravely 00854200

BUSH

$44.99

$

Usually ships in 4-12 days

0

24

Gravely 08626800

BEVEL WHEEL W. CAM

$48.99

$

Usually ships in 4-12 days

0

25

Gravely 08627800

CAP

$44.99

$

Usually ships in 4-12 days

0

26

Gravely 00854300

NIPPLE, SCREWED

$

$

Not available

27

Gravely 00854400

COVER, STOP

$

$

Not available

28

Gravely 08694800

SPRING, RETURN

$

$

Not available

29

Gravely 08604900

WASHER, M6

$

$

Not available

30

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 08694900

BUSH, GRIP

$201.99

$

Usually ships in 4-12 days

0

32

Gravely 08627000

RUBBER, HANDLE

$23.99

$

Usually ships in 4-12 days

0

33

Gravely 08693300

CABLE

$

$

Not available

34

Gravely 08694700

ASSY, THROTTLE LEVER

$

$

Not available

35

Gravely 08693200

ASSY, CABLE

$

$

Not available
