985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Steering Block Valves Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

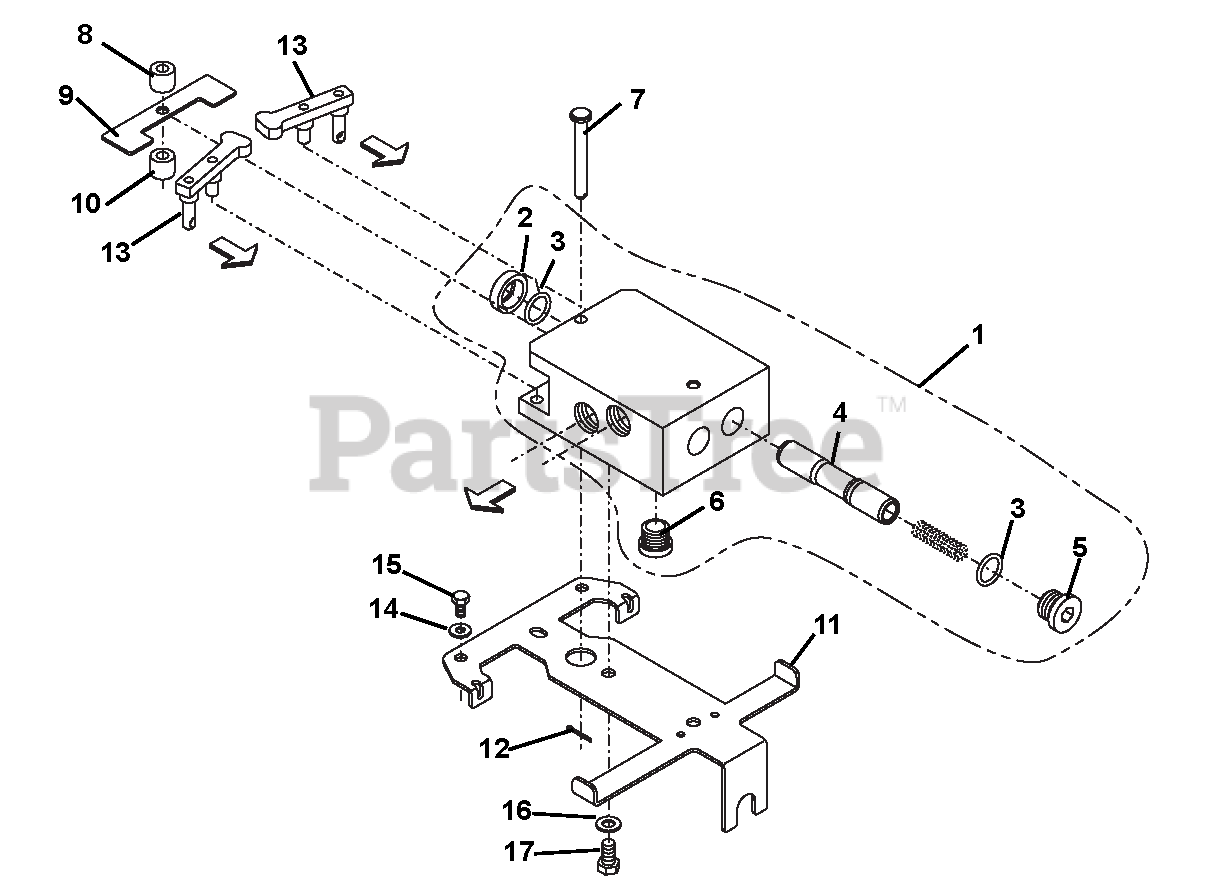

Steering Block Valves Parts Diagram

  • Title

1

Gravely 00844400

VALVE STEERING, POS. 2 - 6

Note: (Includes items 2 - 6)

$

$

Not available

2

Gravely 00844500

BAFFLE

$

$

Not available

3

Gravely 00844600

O-RING, D3770 17,86X2,62

$

$

Not available

4

Gravely 00844700

TAPPET STEERI

$

$

Not available

5

Gravely 00681900

PLUG, DRAIN

$

$

Not available

6

Gravely 00681800

PLUG, DRAIN

$

$

Not available

7

Gravely 00844800

BOLT, D1444B 8X 65

$

$

Not available

8

Gravely 00844900

BUSH

$

$

Not available

9

Gravely 00845000

SUPPORT

$

$

Not available

10

Gravely 00845100

BUSH

$

$

Not available

11

Gravely 00845200

PLATE, SUPPORT

$

$

Not available

12

Gravely 08678000

PIN, COTTER, D94 2 X 16

$

$

Not available

13

Gravely 00845300

LEVER

$

$

Not available

14

Gravely 08604900

WASHER, M6

$

$

Not available

15

Gravely 00683300

HEXAGON BOLT, D933 M 6X 16

$

$

Not available

16

Gravely 08605800

WASHER, M8

$

$

Not available

17

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available
