985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Wheel Axle Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

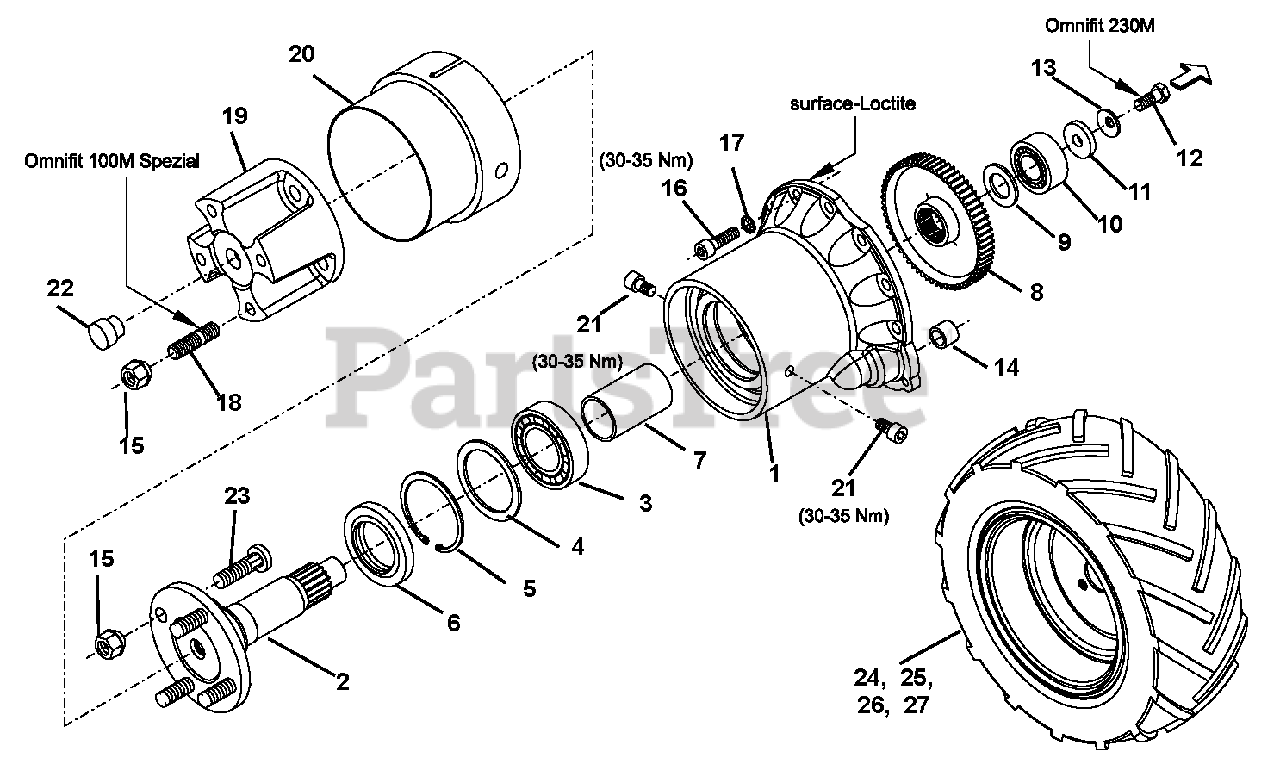

Wheel Axle Parts Diagram

  • Title

1

Gravely 00832100

Case, Wheel Bearing

$

$

Not available

2

Gravely 00832200

Flange, Wheel CPL (Includes Items 2 and 23)

Note: (Includes Items 2 and 23)

$

$

Not available

3

Gravely 00832300

Ball Bearing

$

$

Not available

4

Gravely 00832400

Supporting Ring, D988 63 x 80 x 3

$

$

Not available

5

Gravely 00832500

Circlip, D472 80 2,50

$

$

Not available

6

Gravely 08691600

Seal, Oil 50 x 80 x 10 AS

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 00832600

Distance Spacer

$

$

Not available

8

Gravely 00832700

Pinion

$

$

Not available

9

Gravely 00832800

Collar

$

$

Not available

10

Gravely 08647400

Bearing, Ball, 4205B.TVH

$

$

Not available

11

Gravely 00832900

Washer, 11,5 x 35 x 6

$

$

Not available

12

Gravely 08632700

Hexagon Bolt

$

$

Not available

13

Gravely 08616000

Washer

$

$

Not available

14

Gravely 00830700

Needle Bearing

$

$

Not available

15

Gravely 08609300

Nut

$

$

Not available

16

Gravely 08649000

Screw, D912 M10 x 30

$

$

Not available

17

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

18

Gravely 00833000

Bolt, Wheel

$

$

Not available

19

Gravely 00833100

Intermediate Flange

$

$

Not available

20

Gravely 00833200

Pipe, Safety

$

$

Not available

21

Gravely 08669000

Screw, ISO7380 Metric 8 x 12

$

$

Not available

22

Gravely 08645300

Plug, N559 TL-4-133

$

$

Not available

23

Gravely 08606700

Wheel Stud M14 x 1.5 x 50

$

$

Not available

24

Gravely 00685700

Disc Wheel

$

$

Not available

25

Gravely 00685800

Tyre

$

$

Not available

26

Gravely 00685900

Tyre Tube

$

$

Not available

27

Gravely 00686000

Valve

$

$

Not available
