985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Wheel Axle Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

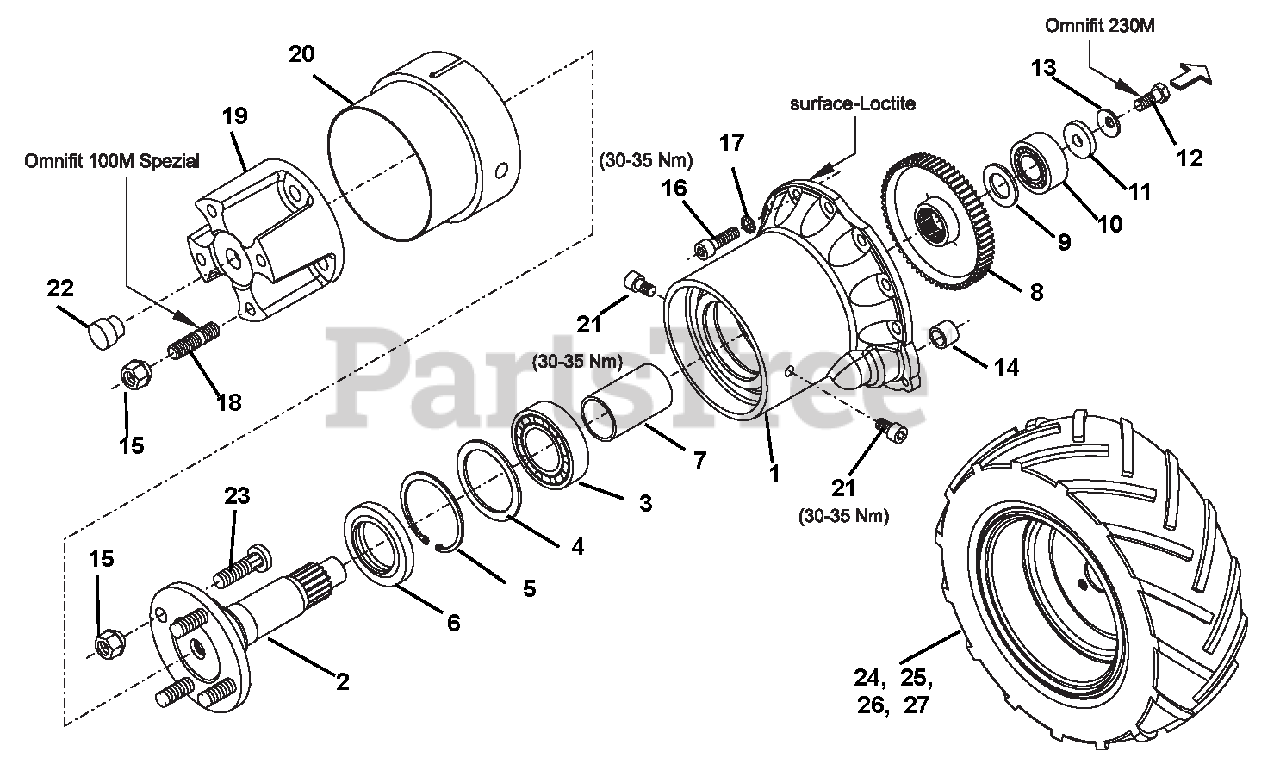

Wheel Axle Parts Diagram

  • Title

1

Gravely 00832100

CASE, WHEEL BEARING

$

$

Not available

2

Gravely 00832200

FLANGE, WHEEL CPL, POS. 2 + 23

Note: (Includes Items 2 and 23)

$

$

Not available

3

Gravely 00832300

BALL BEARING, 6208

$

$

Not available

4

Gravely 00832400

SUPPORTING RING, D988 63X 80X3

$

$

Not available

5

Gravely 00832500

CIRCLIP, D472 80 2,50

$

$

Not available

6

Gravely 08691600

SEAL, OIL 50X80X10 AS

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 00832600

DISTANCE SPACER

$

$

Not available

8

Gravely 00832700

PINION, Z=63

$

$

Not available

9

Gravely 00832800

COLLAR, LS 2542

$

$

Not available

10

Gravely 08647400

BEARING, BALL, 4205B.TVH

$

$

Not available

11

Gravely 00832900

WASHER, 11,5X 35X 6

$

$

Not available

12

Gravely 08632700

HEXAGON BOLT

$

$

Not available

13

Gravely 08616000

WASHER

$

$

Not available

14

Gravely 00830700

NEEDLE BEARING, HK 1516

$

$

Not available

15

Gravely 08609300

NUT

$

$

Not available

16

Gravely 08649000

SCREW, D912 M10X 30

$

$

Not available

17

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

18

Gravely 00833000

BOLT, WHEEL

$

$

Not available

19

Gravely 00833100

INTERMEDIATE FLANGE

$

$

Not available

20

Gravely 00833200

PIPE, SAFETY

$

$

Not available

21

Gravely 08669000

SCREW, ISO7380 M 8X 12

$

$

Not available

22

Gravely 08645300

PLUG, N559 TL-4-133

$

$

Not available

23

Gravely 08606700

STUD, WHEEL MA14 X 1,5X50

$

$

Not available

24

Gravely 00685700

DISC WHEEL

$

$

Not available

25

Gravely 00685800

TYRE

$

$

Not available

26

Gravely 00685900

TYRE TUBE

$

$

Not available

27

Gravely 00686000

VALVE

$

$

Not available
